2006 SOUTHWESTERN INDUSTRIES TRAK TRL 1630SX
Have one to sell?
ConditionUsed
1 available

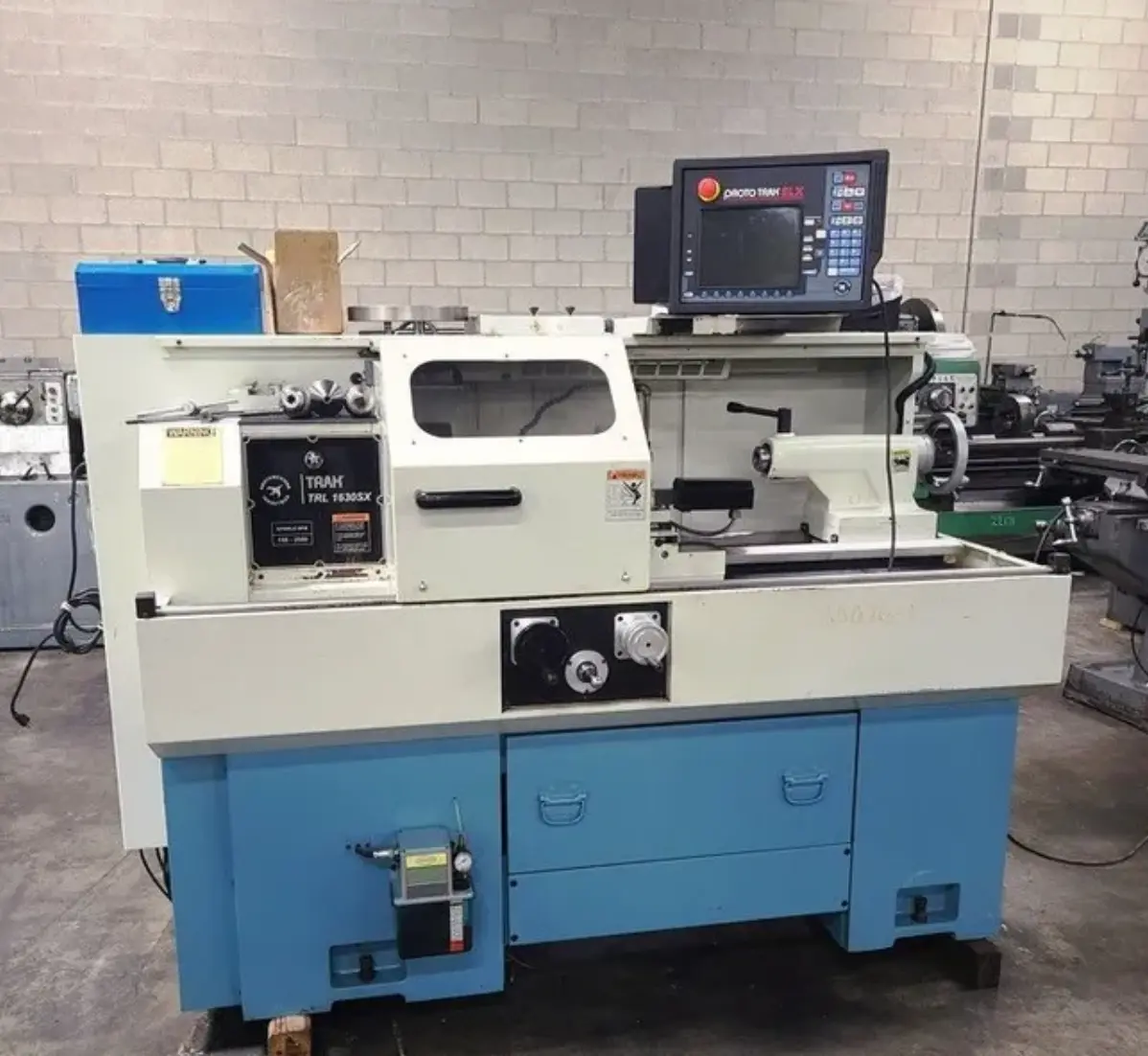

Used CNC Lathe available. Features include 16" max swing, 30" cutting length, SLX CNC control, 7.5 hp spindle motor, 4-position tool post, and coolant system. Dimensions: 82" x 46" x 67", weight: 2,500 lbs.
MAX SWING 16"
SWING OVER CROSS SLIDE 8.6"
MAX CUTTING LENGTH 30"
DISTANCE BETWEEN CENTERS 30"
X-AXIS TRAVEL 8.6"
Z-AXIS TRAVEL 30"
CHUCK SIZE 8"
SPINDLE BORE 1.57"
SPINDLE NOSE A2-4
SPINDLE MOTOR 7.5 hp
SPINDLE SPEED 2,500 RPM
TURRET POSITIONS 4
Dimensions 82" x 46" x 67"H
Weight 2,500 LBS

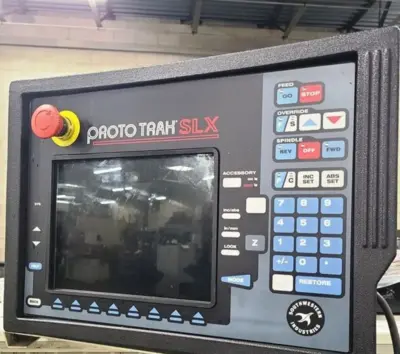

SOUTHESTERN INDUSTRIES-PROTOTRAK MODEL SLX CNC CONTROL

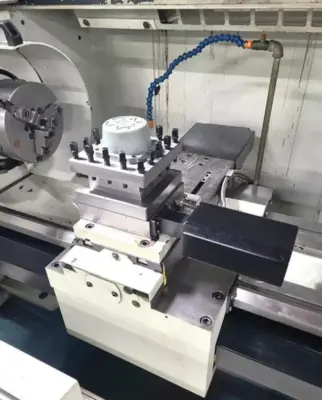

4-POSITION PROGRAMMABLE SQUARE TOOL POST

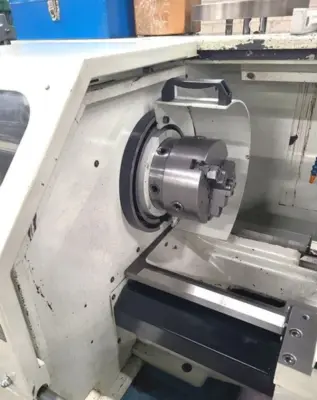

8" BTC 3-JAW CHUCK
12" FACE PLATE
FOLLOWER REST
MANUALS
BACK SLIDE TOOL POST HOLDER
2-AXIS DIGITAL READOUT DURING MANUAL OPERATION
CONSTANT SURFACE SPEED & PROGRAMMABLE SPINDLE SPEEDS
SERVO MOTORS & GROUND BALLSCRES
AC SPINDLE DRIVE
ELECTRONIC HANDWHEELS FOR X & Z MANUAL TRAVERSE
JOGSTICK FOR RAPID TRAVELS
UNLIMITED NUMBER OF THREAD PITCHES & UP TO 10 LEADS
HARDENED & GROUND BED WAYS
AUTOMATIC CENTRAL LUBRICATION SYSTEM FOR SLIDE WAYS AND BALLSCRES
COOLANT SYSTEM
ENCLOSURE
3/60/230V ELECTRICS
