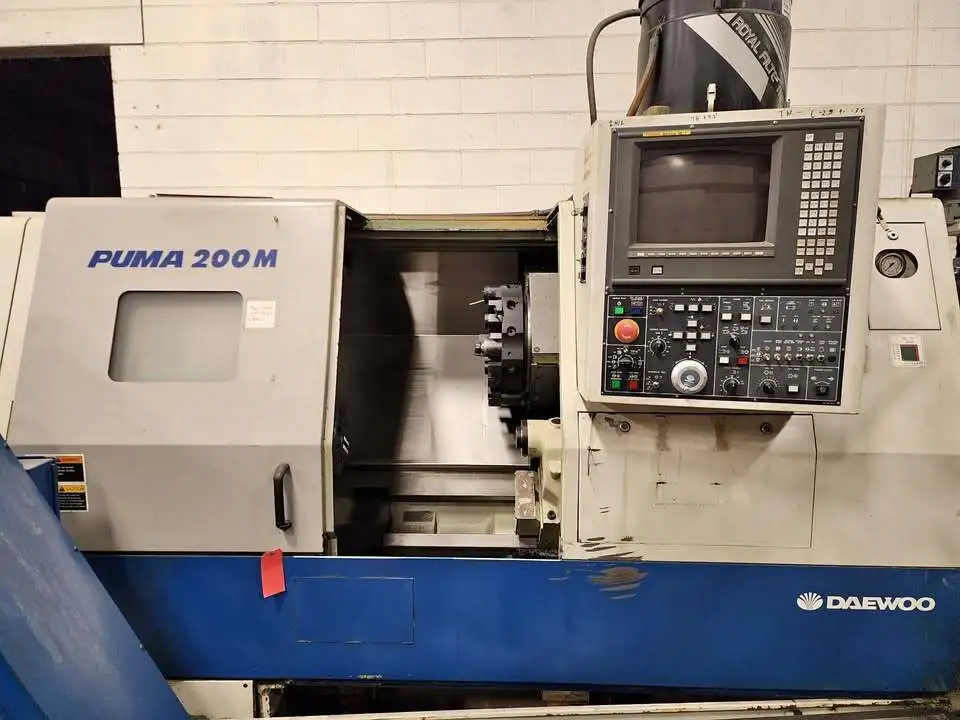

1999 DAEWOO PUMA 200LMC
Have one to sell?
ConditionUsed
1 available
Used Lathe for sale. Features a max turning diameter of 13.78” and length of 15.75”, with 45-4500 RPM spindle speed. Equipped with a 10" chuck and 12-station turret. Compact dimensions and robust 15/20 HP motor.
Max Turning Diameter: 13.78"
Max Turning Length 15.75"
Swing Over Bed: 20.08"
X Axis Travel: 9.53"
Z Axis Travel: 17.32"
Spindle Speed: 45-4500 RPM
Spindle Bor/Spindle Bar: 2.99"/2.56"
Spindle Motor: 15/20HP
Spindle Nose: A2-6
Turret Capacity: 12 Stations
Turret Index Time: .5 Sec
Tailstock Taper: MT-4
Tailstock Quill Diameter: 2.95"
Tailstock Quill Travel:3.15"
Chuck Size: 10" Chuck
Dimensions: 105"x64"x69"
Weight: 8800 lbs

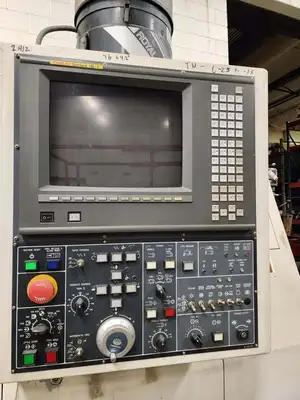

Fanuc control
