Hole Thru Spindle 4.125"
Swing Over Bed Ways, Rated 24"
Swing thru Gap 35"
Swing Over Cross-Slide 14.5"
Distance Between Centers 80"

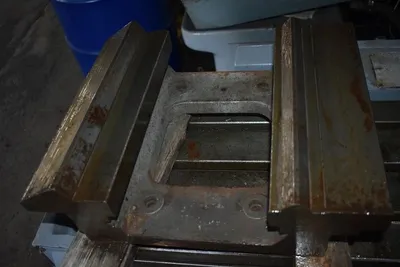

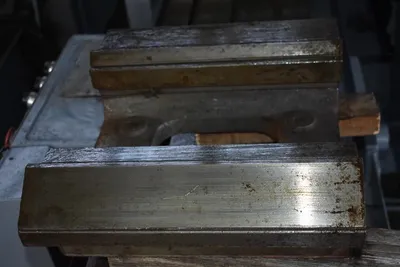

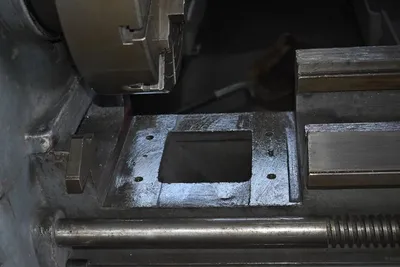

Gap Length 12.5"
Tailstock Spindle Taper #5 MT
(16) Spindle Speeds, Range
Carriage Longitudinal Feeds .0054 to .3264 IPR
Cross-Slide Cross Feeds .0023 to .1378 IPR
Whitworth Thread Changes, Range .25 to 60 TPI
Metric Thread Changes, Range .5 to 7.5 MM
Module Thread Changes, Range .25 to 3.75
Diametral Thread Changes, Range 8 to 120 DP
Main Motor, Horsepower 20 HP
Electrical System 220-440/3/60
Taper Attachment
19" 4-Jaw Chuck w/Jaws - 17" Faceplate
12" 3-Jaw Chuck w/Jaws
Steady Rest
Inch-Metric Threading - Threading Dial
Spindle Nose D1-8"1
Hard Ways
This equipment is currently unavailable. Similar equipment available now is shown below.
