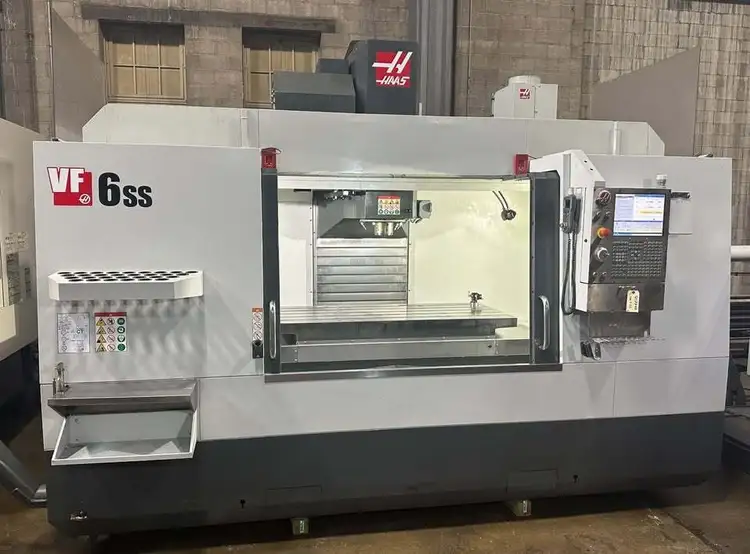

2017 HAAS VF-6SS
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center, equipped with Haas CNC Control, HRT-310 4th Axis, 15,000 RPM spindle, and 24-tool changer. Features 64"x28" table, 40 hp, and programmable coolant.
# Axis.............................................. 4
Table Size-L x W.................................... 64" x 28"
Max Table Load Capacity............................. 2,000 lbs
X-Axis (Longitudinal Travel)........................ 64"
Y-Axis (Cross Travel)............................... 32"
Z-Axis (Vertical Travel)............................ 30"
Max Clearance Tabletop to Spindle Nose.............. 34"
Min Clearance Tabletop to Spindle Nose.............. 4"
Feed Rates (X, Y, & Z Axis)......................... 833 IPM
X-Axis Rapid Traverse Rate.......................... 900 IPM
Y-Axis Rapid Traverse Rate......................... 1,200 IPM
Z-Axis Rapid Traverse Rate......................... 1,200 IPM
Spindle Power...................................... 40 hp
Max Spindle Speed.................................. 15,000 RPM
Spindle Taper...................................... CAT 40
Torque, Up To...................................... 90 FT-LBS @ 2000 RPM

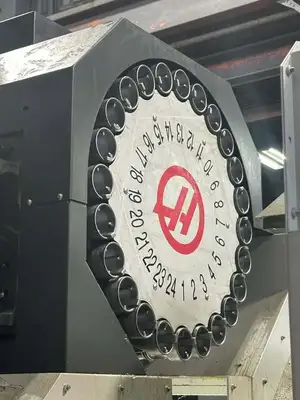

Automatic Tool Changer Capacity.................... 24
Automatic Tool Changer Style....................... Side-Mount
Electrics.......................................... 440/3/60
Dimensions......................................... 204" x 108" x 123"
Weight............................................. 22,300 LBS

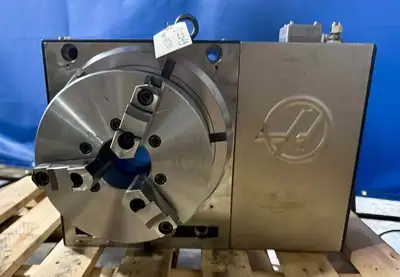

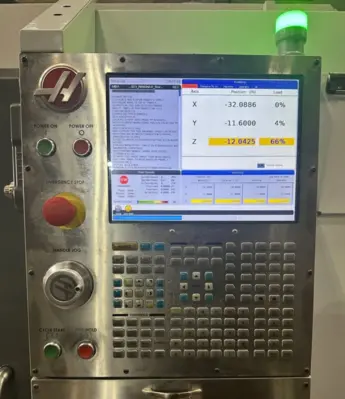

Haas CNC Control w/ 1 GB Memory, HRT-310 Haas 4th Axis Rotary w/ 10" Chuck, 15000 Max RPM Spindle (High Speed Machining), VPS Editing, 1,000 PSI Through Spindle Coolant & Programmable Coolant Nozzle, 24 Station Tool Changer, Renishaw Touch & Tool Probe, Chip Auger & Coolant Tank.
