2025 MICROCUT HBM-4
Have one to sell?
ConditionUsed
1 available

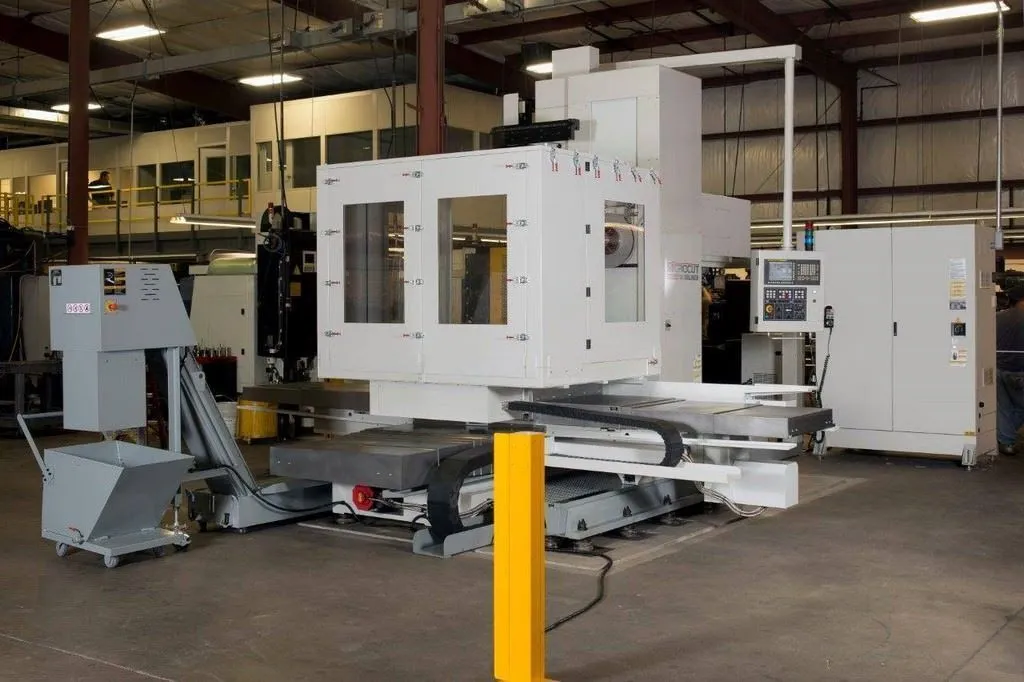

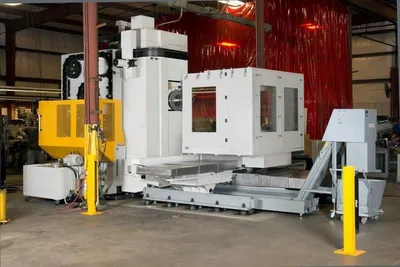

2025 MICROCUT HBM-4, a used horizontal boring mill, features a 4.33" spindle, 86.61" table travel, 11,000 lbs load capacity, FANUC CNC control, and 60 tool changer.

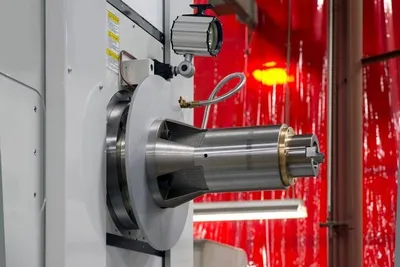

Spindle Diameter - 4.33"
Spindle Taper - ISO #50
Vertical Head Travel, Y-Axis - 62.99"
Table Travel, X-Axis - 86.61"
Saddle Travel, W-Axis - 62.99"
Spindle Travel, Z-Axis - 21.65"
Distance Spindle To Table Center - 4.72" - 67.71"
Built in Rotary Table - 49.21" x 59.05"
Table Index - 0.001 Degree
Rapid Traverse: x,y,z Axis - 472.44 IPM
Feed Rates: x,y,z Axis - .04-196.85 IPM
Table Load Capacity - 11,000 LBS
Spindle Speeds (2 Ranges) - 35-3000 RPM
Tool Change Time (Tool to Tool) - 9 Seconds
Maximum Tool Weight in Tool Changer - 55 LBS
FANUC 31i MB CNC Control w/ 10.4" LCD Full Key Panel
MPG
Helical Interpolation
Built In B-Axis Rotary Table (Positioning)
Hardened & Ground Ways
60 Station Automatic Tool Changer (CAT #50)
Rigid Tapping
Coolant Thru Spindle (70 Bar)

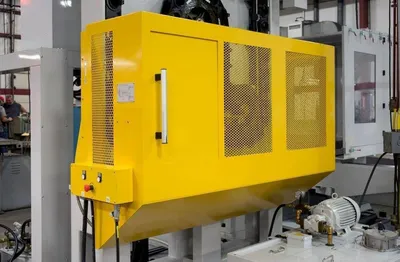

Spindle Oil Chiller
Spindle Vibration Supervision Function
Spindle Extension Sleeve
Meehanite Cast Iron Struction

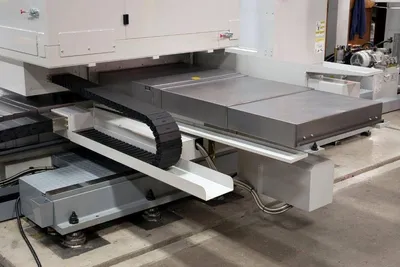

Telescoping Way Covers
Auto Power Off

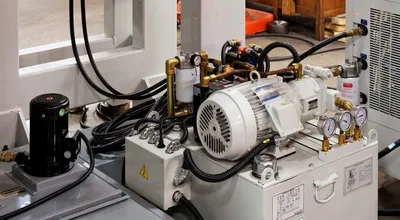

Auto Lubrication System

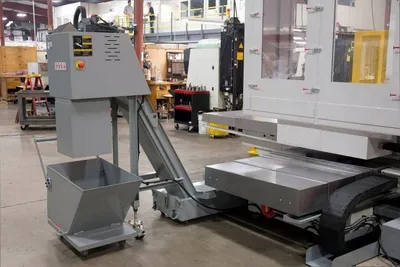

Chip Auger For Table & Chip Conveyor
29 HP/ 24 HP Spindle Drive Motor 220/3/60
