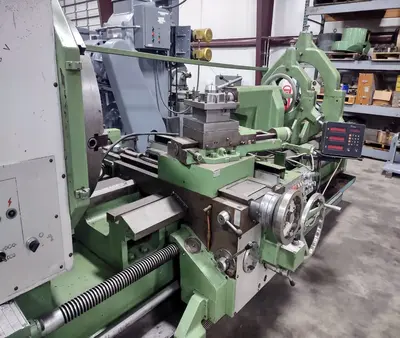

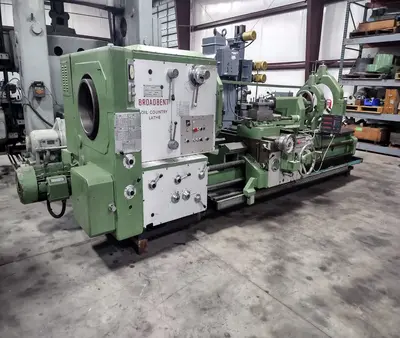

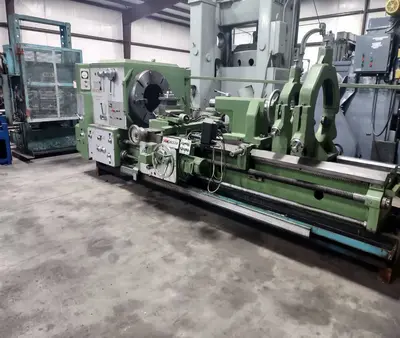

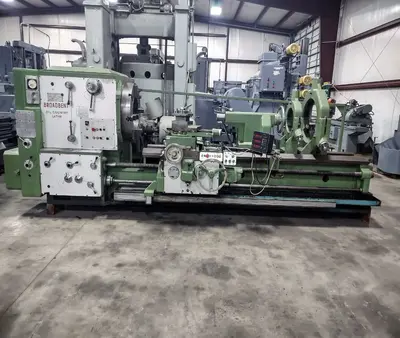

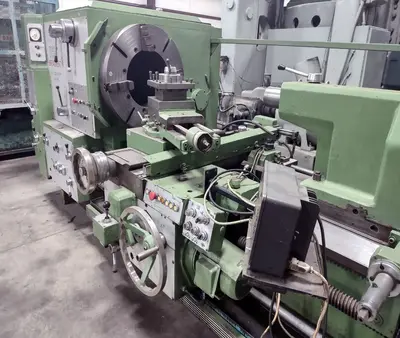

Engine Lathe, used. Features 34" swing, 100" centers, 16.25" spindle bore, and 30 hp power. RPM up to 350. Includes 4-jaw chucks, steady rest, taper attachment, chip pan, and more. Weighs 25,000 lbs. Powered by 440V 3-phase.
Swing Over Bed Ways.........................................34"
Swing Over Cross Slide......................................20"
Swing In Gap................................................56"
Length Of Gap...............................................17"
Center Distance.............................................100"
Spindle Hole................................................16-1/4"
Spindle Speeds..............................................4 To 350 Rpm's
Chuck Size With 16-1/4" Hole Front..........................30" 4-Jaw
Chuck Size With 16-1/4" Hole Front..........................28" 4-Jaw
Feeds Cross ................................................0.050 To 1.575 IPR
Feeds Long .................................................0.101 To 3.101 IPR
Threads Inch................................................4 To 96 TPI
Threads Metric..............................................1 To 28 TPI
Tail Stock Quill Diameter...................................4"
Tail Stock Quill Travel.....................................10"
Tail Stock Taper............................................# 5 Morse
Floor Space Length & Width..................................R-L 16' X F-B 60"
Machine Height..............................................72"
Weight......................................................25,000 Lbs.
Main Motor..................................................30 Hp.
Currently Wired.............................................440 Volts 3 Phase

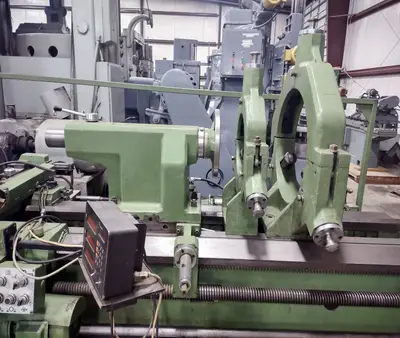

Steady Rest.................................................12-1/2"
Chip Pan....................................................Yes

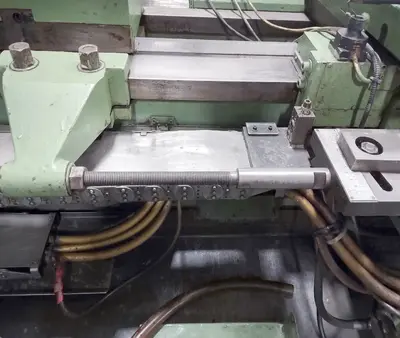

Taper Attachment............................................Yes
Thread Dial.................................................Yes
6-Way Rapid Traverse........................................Yes
Coolant.....................................................Yes
