Table Face to Spindle End:
125-725mm (4.9”-28.5”)
Column Face to Spindle Center:
675mm (26.6”)

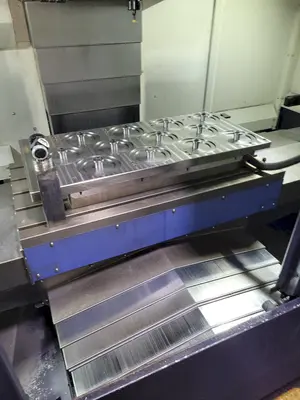

Table Surface:
1150/600mm (45.3”/23.6”)
Max. Weight on Table:
1,000 kgf (2,205 lbs.)
Spindle Max. Speed:
8,000 RPM

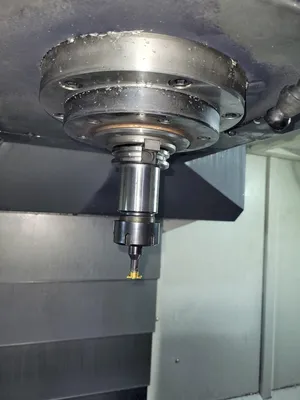

Spindle Taper:
CAT40
Rapid Feedrate (X/Y/Z):
24/24/18 m/min (945/945/709 ipm)
Cutting Feedrate (X/Y/Z):
10 m/min (394 ipm)
Spindle Motor:
AC18.5/15 kW (25/20 hp)
Z Axis Travel:
600mm (23.6”)
Machine Height:
2887 mm (123.7”)
Approximate Weight:
7,500 kgf (16,535 lbs.)

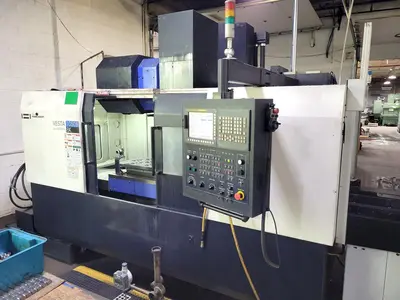

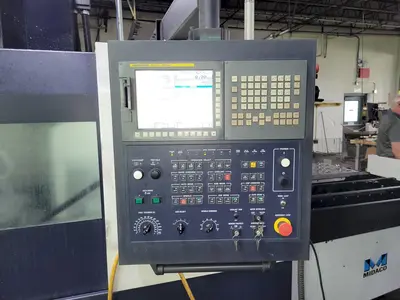

Fanuc Oi-MF CNC Controls with Full CRT and Keyboard.
Hwacheon AI Nano Contour Control (HAI).
Cutting Feed Optimization (OPTIMA).
Efficient Contour Control (HECC) Ethernet Interface.

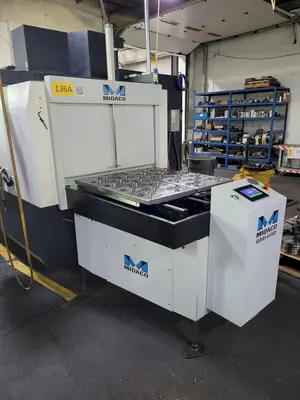

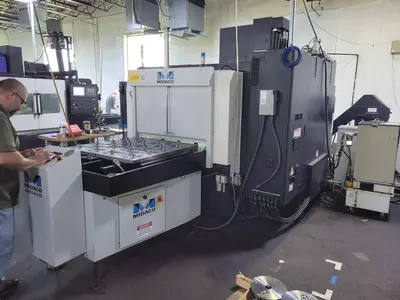

MIDACO 2 Position Pallet Changer.

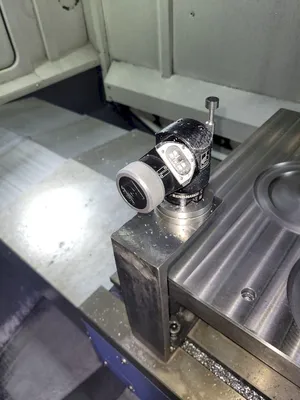

Renishaw Probing.

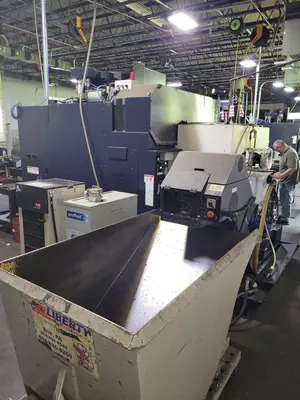

Auger Chip Conveyer.

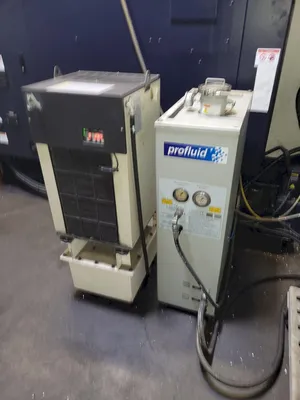

Oil Chiller.
Coolant System with Chip Conveyor.
30 Position ATC.
2 Speed & Geared Headstock.
