2011 MAZAK QUICK TURN NEXUS 250-II
Have one to sell?
ConditionUsed
1 available

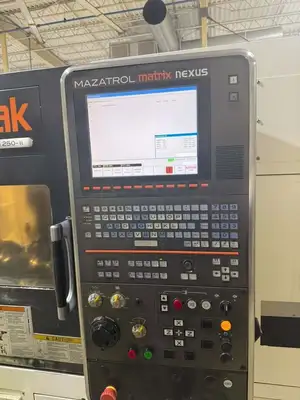

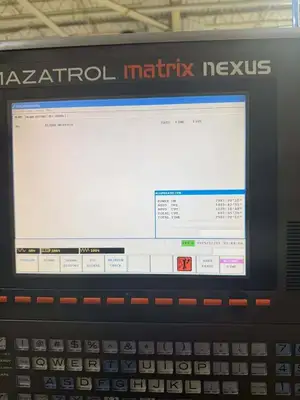

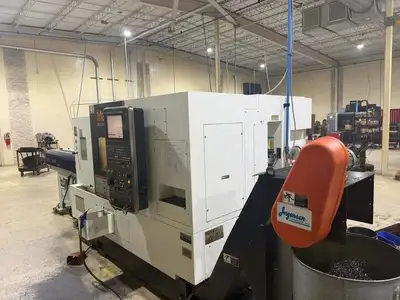

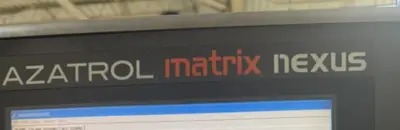

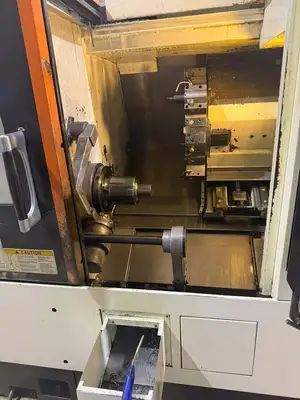

Used CNC Lathe. Features Mazatrol Matrix CNC Control, collet chuck, 2-axis, 35 HP, 4000 RPM, 12-position turret, edge feeder, tool presetter, parts catcher, and chip conveyor.
# Axis............................ 2
Max Swing Over Bed................ 26.5"

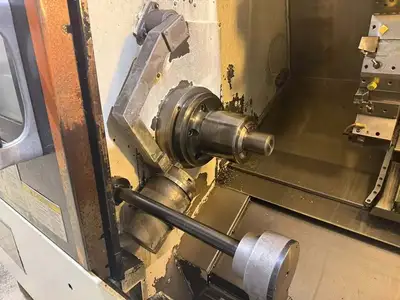

Chuck Size........................ Collet Chuck
Max Distance Between Centers...... 22"
X-Axis (Cross Travel)............. 7.5"
Z-Axis (Longitudinal Travel)...... 22"
X-Axis Rapid Traverse Rate........ 1,181 IPM
Z-Axis Rapid Traverse Rate........ 1,181 IPM
# Tool Turrets.................... 1

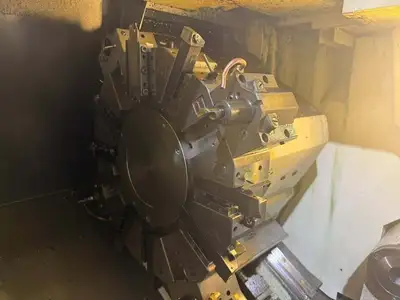

Tool Turret Positions............. 12
Spindle Nose...................... A2-8
Bar Capacity...................... 3"
Max Spindle Speed................. 4,000 RPM
Spindle Power..................... 35 hp
Tailstock......................... Yes
Tailstock Travel.................. 17.6"
Dimensions......................... 108" x 74" x 75"
Weight............................. 11,000 lbs

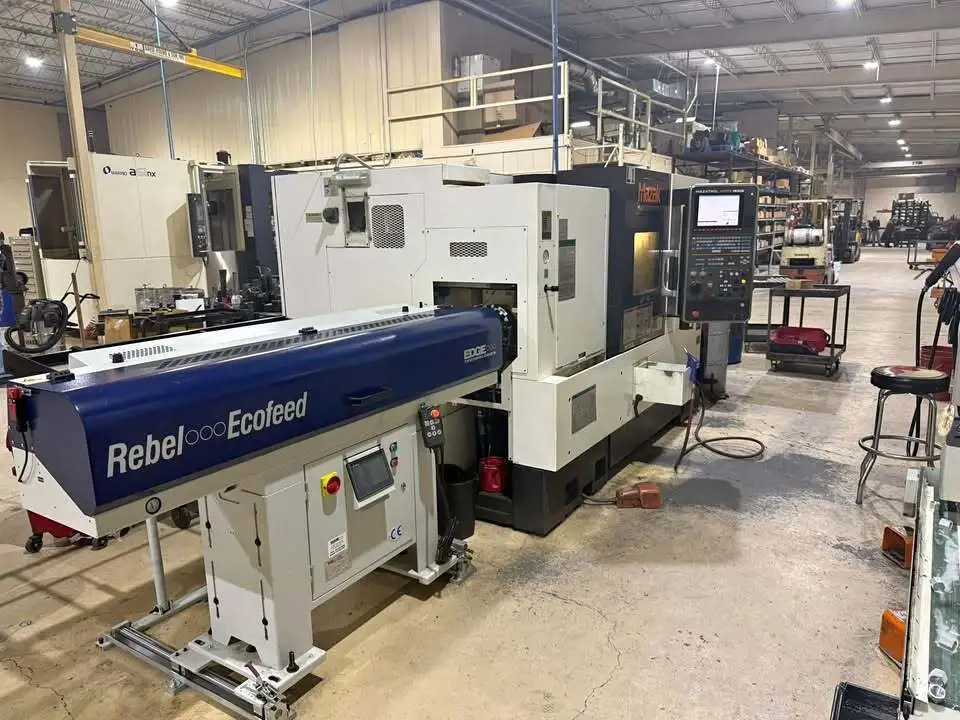

Mazatrol Matrix CNC Control, Collet Chuck, 24" Swing, 22" Between Centers, 3" Bar Capacity, 3" Spindle Bore, 35 HP, 4000 RPM, 12-Position Turret, Edge Technologies Rebel EcoFeed Bar Feeder, Tool Presetter, Parts Catcher, Chip Conveyor.
