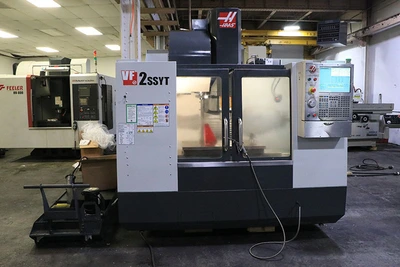

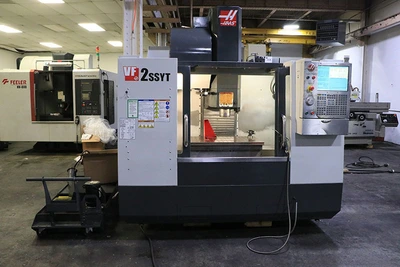

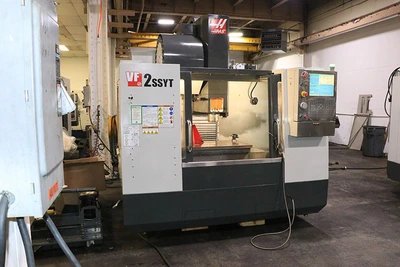

2010 HAAS VF-2SSYT
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center, used, featuring X/Y/Z travel of 30"/20"/20", 12,000 RPM spindle, HAAS control system, 24 ATC capacity. Includes RENISHAW programming, coolant system, multi-chip auger conveyor, and more.
X-AXIS TRAVEL .................... 30" 762mm
Y-AXIS TRAVEL .................... 20" 508mm
Z-AXIS TRAVEL .................... 20" 508mm
SPINDLE SPEED .................... 12,000 RPM
SPINDLE MOTOR .................... 30 HP
SPINDLE DRIVE .................... INLINE DIRECT DRIVE
SPINDLE TAPER .................... CT 40
TOOL MAGAZINE CAPACITY ........... 24 ATC
MAXIMUM TOOL DIAMETER/WEIGHT ..... 3.0" / 12 LBS
RAPID TRAVERSE RATES ............. 1400 IPM

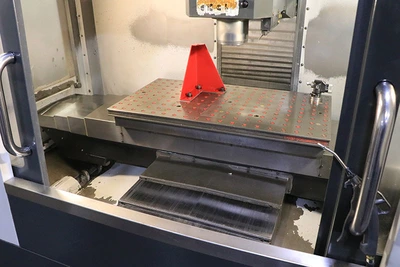

TABLE SIZE ....................... 36" X 18"
TABLE LOAD CAPACITY .............. 1500 LBS
MACHINE WEIGHT: .................. 8,000 LBS

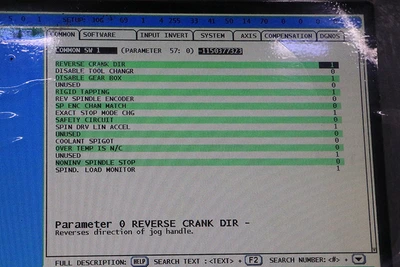

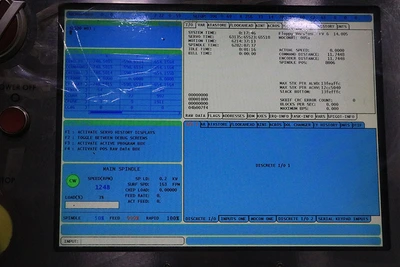

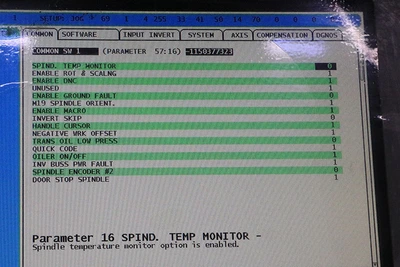

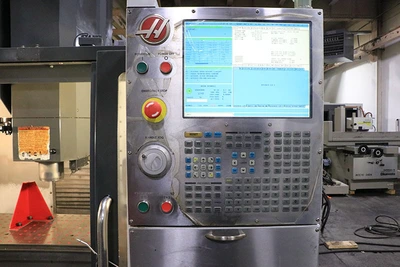

HAAS CONTROL
RIGID TAPPING, ROTATION & SCALING, QUICK CODE,
SPINDLE ORIENTATION, NETWORKING, HAAS EDITOR
USER-DEFINABLE MACROS, DNC ENABLED
ADV TOOL MGMT, INTUITIVE PART PROG, SPINDLE LOAD METER
RENISHAW INTUITIVE PROGRAMING SYSTEM (WIPS)
TOOL SETTER
COOLANT SYSTEM

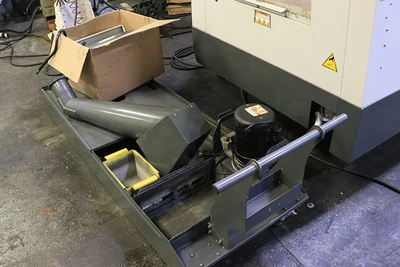

MULTI-CHIP AUGER CONVEYOR

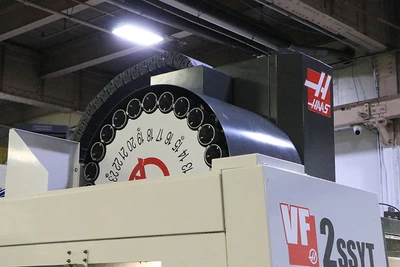

24 + 1 TOOL SIDE-MOUNTED TOOL CHANGER
