2001 HAAS VF-2B
Have one to sell?
ConditionUsed
1 available

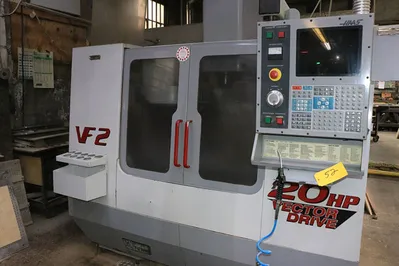

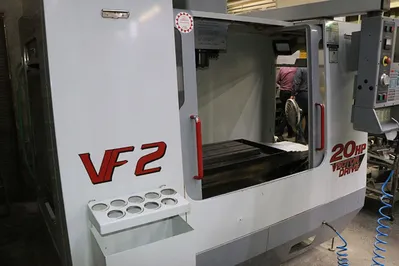

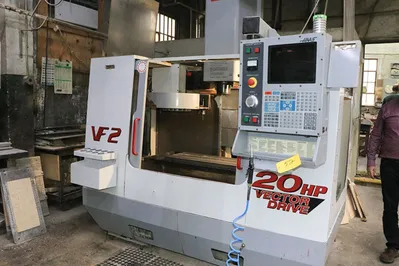

Vertical Machining Center in used condition. Equipment features include a 30" x 16" x 20" travel, 20 HP spindle, 7,500 RPM speed, and HAAS control. Machine dimensions 89" x 92.8" x 104"H and weight of 8,000 lbs.
X-AXIS TRAVEL .................... 30" 762mm
Y-AXIS TRAVEL .................... 16" 406mm
Z-AXIS TRAVEL .................... 20" 508mm
SPINDLE TO TABLE DISTANCE ........ 4" - 24"
SPINDLE SPEED .................... UP TO 7,500 RPM
SPINDLE MOTOR .................... 20 HP
SPINDLE TAPER .................... CT 40
TOOL MAGAZINE CAPACITY ........... 20 ATC
MAXIMUM TOOL ..................... 12 LBS

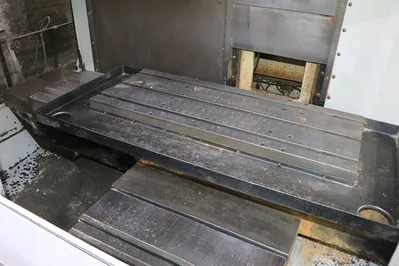

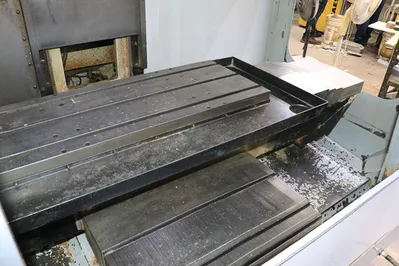

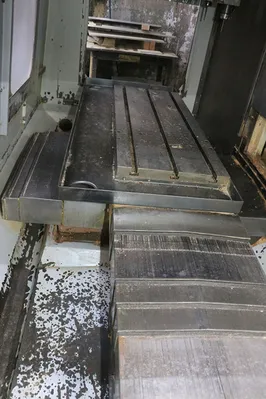

TABLE SIZE ....................... 36" X 15"
MACHINE DIMENSIONS: .............. 89" x 92.8" x 104"H
MACHINE WEIGHT: .................. 8,000 LBS

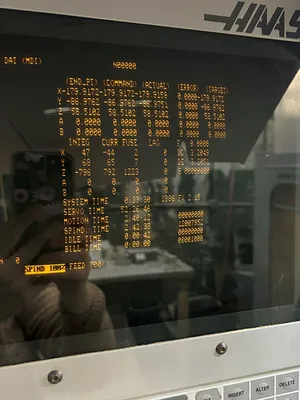

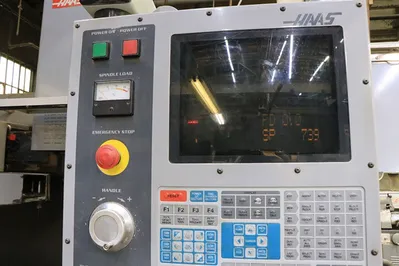

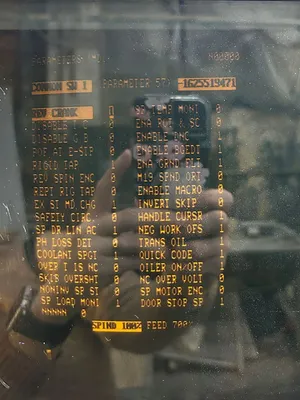

HAAS CONTROL:
SPINDLE LOAD MONITOR, COORD/SCALING, QUICK CODE,
HIGH SPEED MACHINING, SPINDLE ORIENT, ENABLE DNC
RIGID TAPPING
2-SPEED GEAR BOX

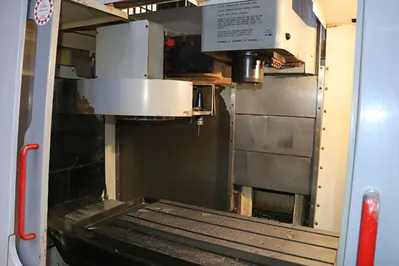

CAROUSEL AUTOMATIC TOOL CHANGER
20 HORSE POWER SPINDLE DRIVE
MACHINE RAN IN A SINGLE SHIFT ENVIROMENT
MATERIALS CUT: REM BOARD & ALUMINUM
