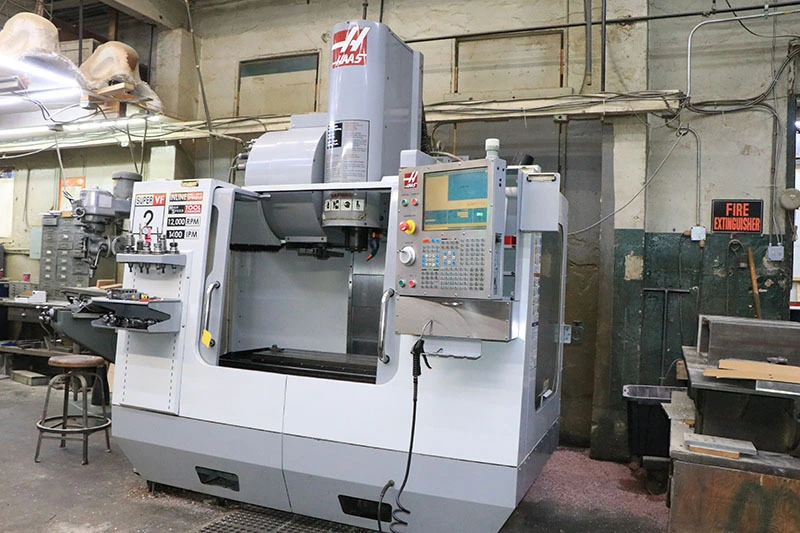

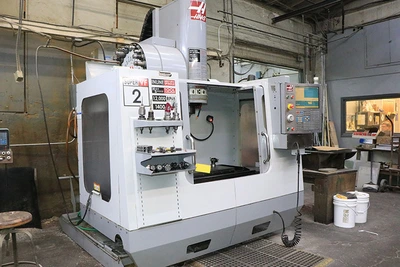

2009 HAAS VF-2SS
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center with 30" x 16" x 20" travel. Features 12,000 RPM spindle, 30 HP motor, 24 ATC, and HAAS control with high-speed machining. Includes Renishaw probing and coolant system.
X-AXIS TRAVEL .................... 30" 762mm
Y-AXIS TRAVEL .................... 16" 406mm
Z-AXIS TRAVEL .................... 20" 508mm
SPINDLE SPEED .................... 12,000 RPM
SPINDLE MOTOR .................... 30 HP
SPINDLE DRIVE .................... INLINE DIRECT DRIVE
SPINDLE TAPER .................... CT 40
TOOL MAGAZINE CAPACITY ........... 24 ATC
MAXIMUM TOOL DIAMETER/WEIGHT ..... 3.0" / 12 LBS
RAPID TRAVERSE RATES ............. 1400 IPM

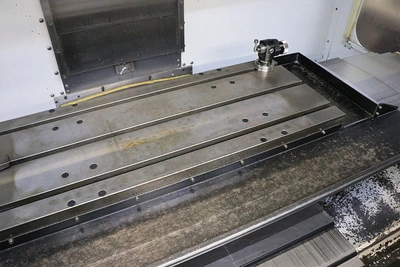

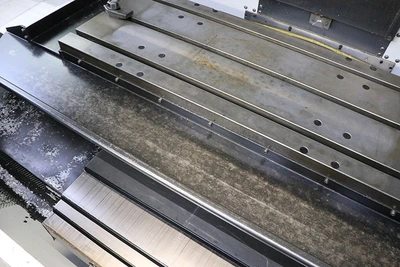

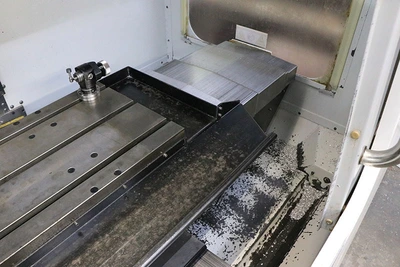

TABLE SIZE ....................... 36" X 14"
TABLE LOAD CAPACITY .............. 1500 LBS
MACHINE DIMENSIONS: .............. 89" x 92" x 104"H
MACHINE WEIGHT: .................. 8,000 LBS

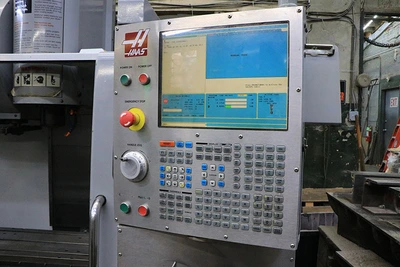

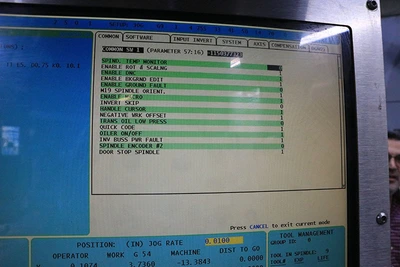

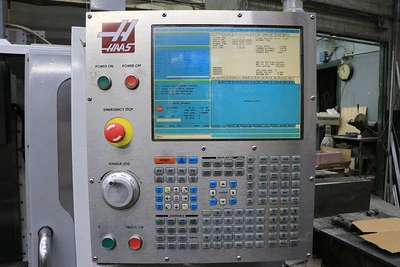

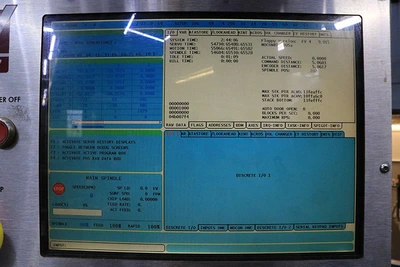

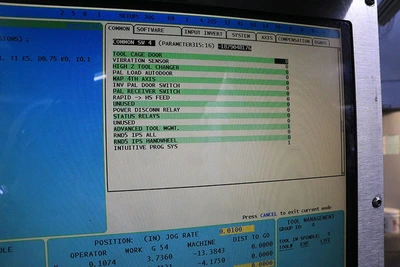

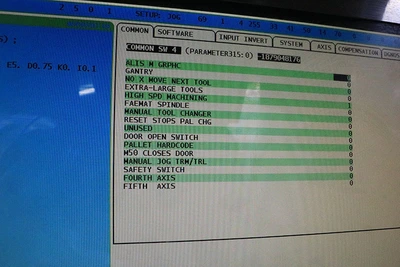

HAAS CONTROL:
HIGH SPEED MACHINING, RIGID TAPPING, QUICK CODE,
INTUITIVE PROGRAMMING SYSTEM, MACROS, ROTATION & SCALING,
M-19 SPINDLE ORIENTATION, ADVANCED TOOL MANAGEMENT,
SPINDLE LOAD METER, USB PORT

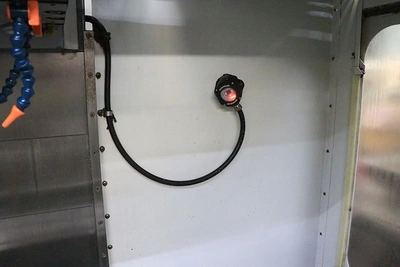

RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
COOLANT SYSTEM
24 + 1 TOOL SIDE-MOUNTED TOOL CHANGER
30 HORSE POWER SPINDLE MOTOR
MACHINE RAN IN A SINGLE SHIFT ENVIROMENT
MATERIALS CUT: REM BOARD & ALUMINUM
