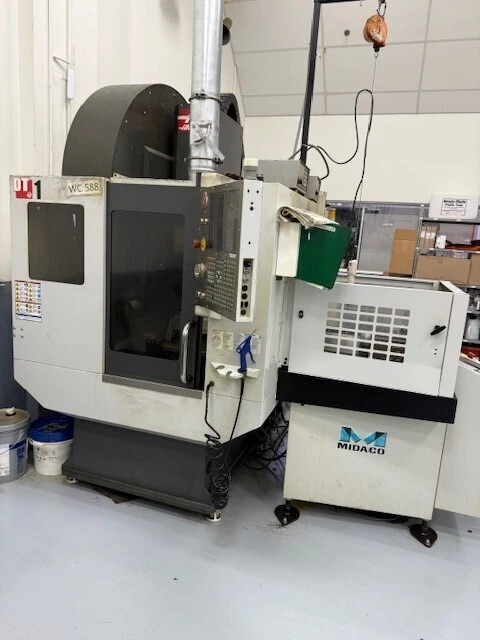

2013 HAAS DT-1 w/Midaco Pallet Changer & HRT Rotary Tbls
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center with Midaco pallet changer & HRT rotary tables. Features 4-axis, 12,000 RPM spindle, spindle motor 15 HP, and 20+1 tool capacity. Equipped with HAAS CNC Control, rigid tapping, USB, and fire suppression system.
X-AXIS TRAVEL.......................... 20" / 508mm
Y-AXIS TRAVEL.......................... 16" / 406mm
Z-AXIS TRAVEL.......................... 15.5" / 394mm
TABLE SIZE............................. 26" X 15"
MAX WEIGHT ON TABLE.................... 250 LBS
SPINDLE SPEED.......................... 12,000 RPM
SPINDLE MOTOR.......................... 15 HP
MAX TAPPING SPEED...................... 5,000 RPM
MAX RAPIDS............................. 2,400 IPM
MAX CUTTING............................ 1,200 IPM
TOOL CHANGER CAPACITY.................. 20 + 1
SPINDLE TAPER.......................... BT-30
MACHINE SIZE: 107" W, 124" L WITH COOLANT TANK, 103" TALL

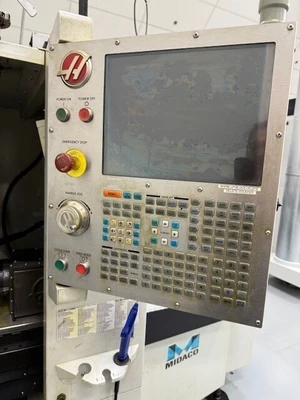

* HAAS CNC CONTROL
ROTATION & SCALING, DNC, QUICK CODE, MACROS,
INTUITIVE PROGRAMMING, ADVANCED TOOL MGMT,
SPINDLE LOAD METER
* RIGID TAPPING
* USB PORT
* (WIPS) WIRELESS INTUITIVE PROGRAMMING SYSTEM
(PROBE TOOL & TOUCH SETTER REQUIRED)

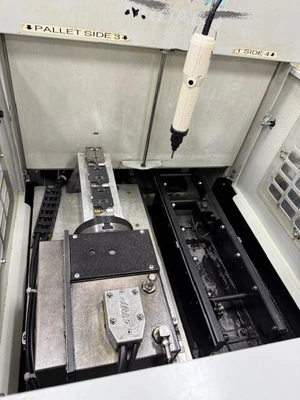

* MIDACO MODEL: ADT-1SD PROGRAMMABLE DUAL PALLET CHANGER
PALLET SIZE 22" x 15"

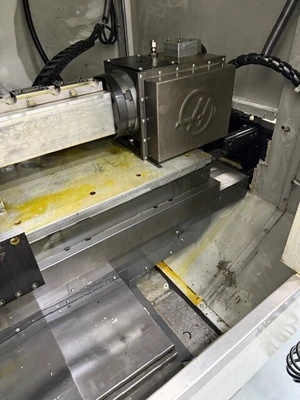

* (2) HAAS MODEL: HRT 160SP ROTARY TABLES
w/ HAAS INDEPENDENT ROTARY CONTROLS
* (2) TOOLING BLOCK SYSTEMS w/ A-FRAME SUPPORT & MOUNTING BLOCK
* FIRE SUPRESION SYSTEM
* COOLANT SYSTEMS
