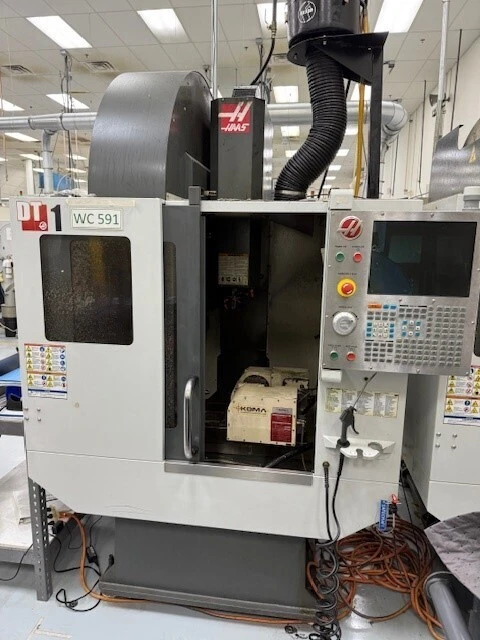

2014 HAAS DT-1
Have one to sell?
ConditionUsed
1 available
Used Vertical machining center featuring a full 5-axis capability, 15 hp spindle motor, and 12,000 RPM. Includes a 20+1 tool changer, dual chip augers, and advanced HAAS CNC control. Equipped with WIPS and a 5-axis trunnion table.
X-AXIS TRAVEL.......................... 20" / 508mm
Y-AXIS TRAVEL.......................... 16" / 406mm
Z-AXIS TRAVEL.......................... 15.5" / 394mm
TABLE SIZE............................. 26" X 15"
MAX WEIGHT ON TABLE.................... 250 LBS
SPINDLE SPEED.......................... 12,000 RPM
SPINDLE MOTOR.......................... 15 HP
MAX TAPPING SPEED...................... 5,000 RPM
MAX RAPIDS............................. 2,400 IPM
MAX CUTTING............................ 1,200 IPM
TOOL CHANGER CAPACITY.................. 20 + 1
SPINDLE TAPER.......................... BT-30
MACHINE SIZE: 68" W, 124" L WITH COOLANT TANK, 103" TALL

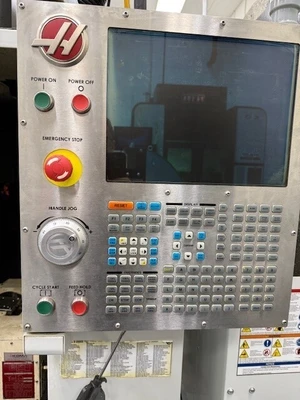

* HAAS 5 AXIS CNC CONTROL w/4TH & 5TH AXIS DRIVES
ROTATION & SCALING, DNC, QUICK CODE, M19 SPINDLE ORIENT,
MACROS, INTUITIVE PROGRAMMING, ADVANCED TOOL MGMT
SPINDLE LOAD METER
* RIGID TAPPING
* USB PORT
* (WIPS) WIRELESS INTUITIVE PROGRAMMING SYSTEM
PROBE TOOL & TOUCH SETTER REQUIRED

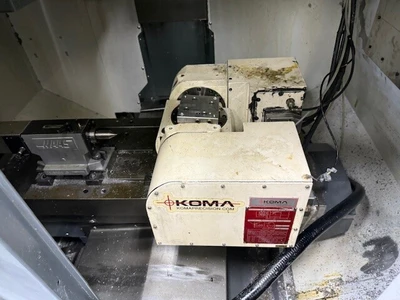

* KOMA MODEL: TN101 5-AXIS TRUNNION TABLE
* DUAL CHIP AUGERS
* FIRE SUPRESSION SYSTEM
* COOLANT THROUGH SPINDLE
