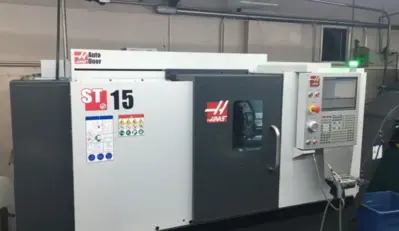

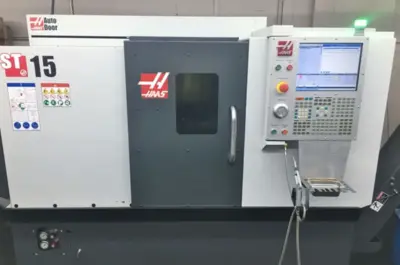

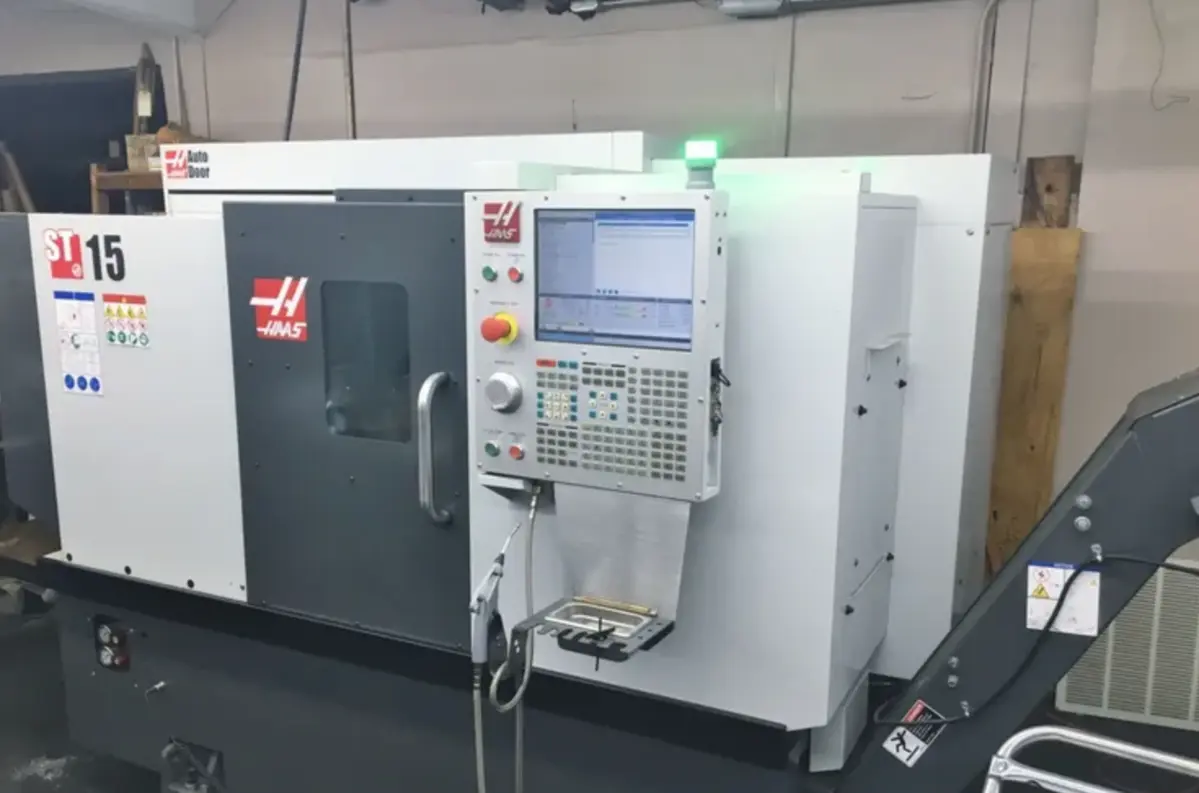

2019 HAAS ST-15
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe for sale. Equipped with Haas NextGen Control, hydraulic chuck, tool presetter, and more. Spindle speed up to 4,000 RPM, max cutting diameter 12". Only 566 hours cutting primarily 4140 steel.
MAX SWING 16.5"
MAX CUTTING DIAMETER 12"
MAX CUTTING LENGTH 16"
X-AXIS TRAVEL 7.9"
Z-AXIS TRAVEL 16"
CHUCK SIZE 8"
BAR CAPACITY 2.5"
SPINDLE NOSE A2-6
SPINDLE MOTOR 20 hp
SPINDLE SPEED 4,000 RPM

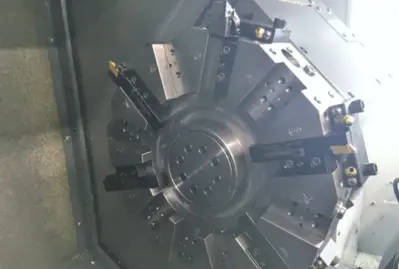

TURRET POSITIONS 12
TURRET TYPE BOLT-ON
HAAS NEXTGEN CONTROL

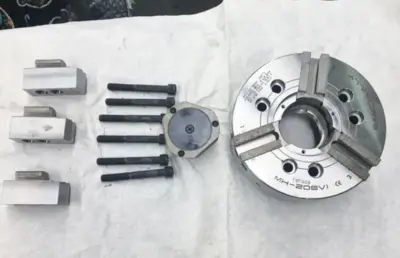

8”, 3-JAW SAMCHULLY (MH-208VI) HYDRAULIC CHUCK

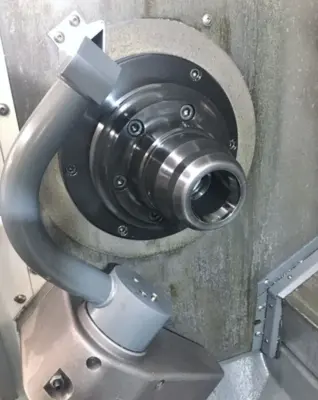

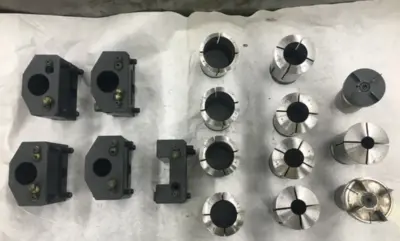

3J COLLET CHUCK

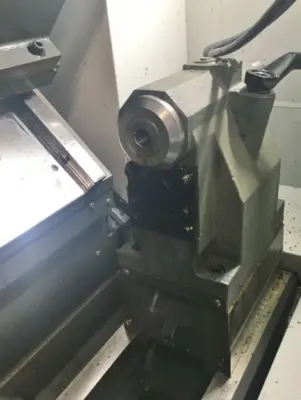

MANUAL TAILSTOCK (HYDRAULIC QUILL)

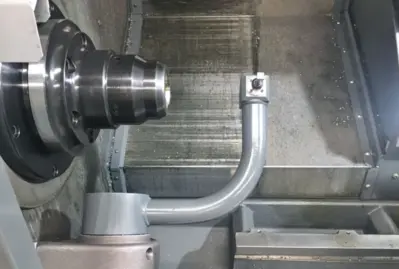

TOOL PRESETTER

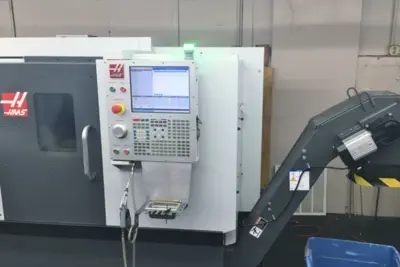

CHIP CONVEYOR

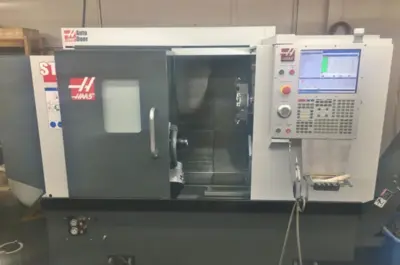

AUTO DOOR

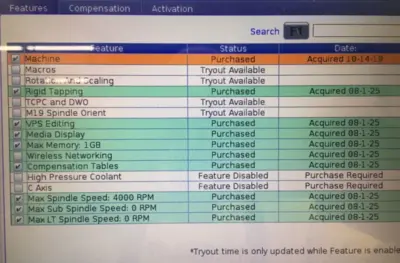

VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DISPLAY M-CODE (M130)
RIGID TAPPING
USB PORT
ETHERNET
1GB MEMORY
WIFI CONNECTION
HAASCONNECT: REMOTE MONITORING

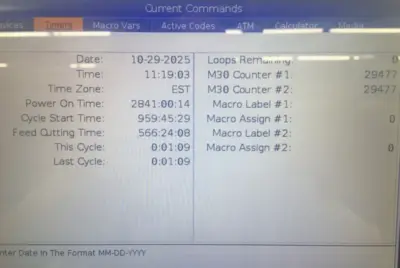

** AS OF OCTOBER 2025, CUTTING TIME – 566 HOURS
** MACHINE CUT PRIMARILY 4140 STEEL
