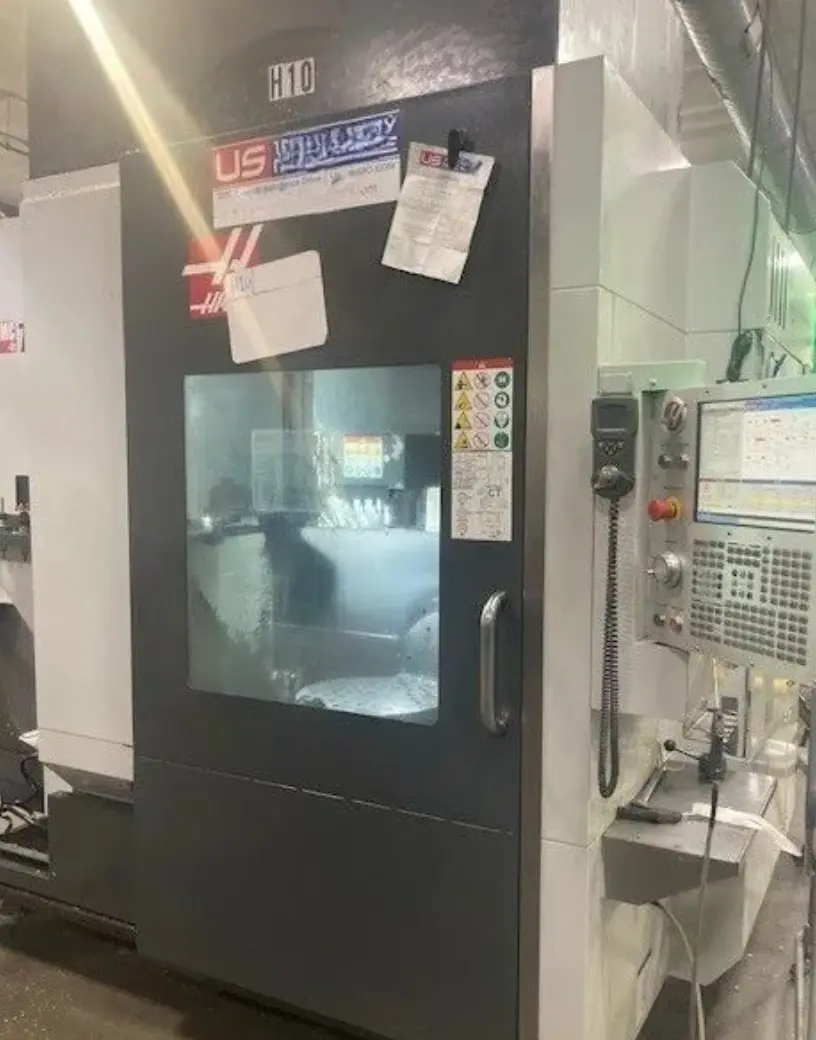

2018 HAAS UMC-750
Have one to sell?
ConditionUsed
1 available
Used universal machining center with 19.7" x 24.8" table, 12,000 RPM spindle, 30 hp motor, equipped with HAAS NextGen Control, 4th & 5th axis wiring, WIPS, and more. With 3,500 hours of aluminum cutting.
TABLE WIDTH 19.7"
TABLE LENGTH 24.8"
TABLE LOAD CAPACITY 660 lb
X-AXIS TRAVEL 30"
Y-AXIS TRAVEL 20"
Z-AXIS TRAVEL 20"
B-AXIS (TILT) TRAVEL +120 DGREES / -25 DEGREES
C-AXIS (ROTATION) TRAVEL 360 DEGREES
SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR 30 hp
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 40

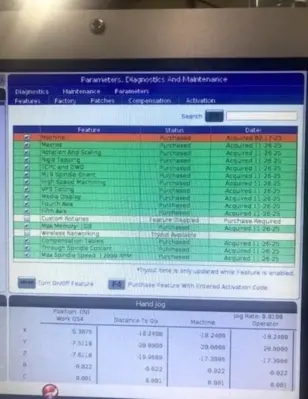

HAAS NEXTGEN CONTROL
4TH & 5TH AXIS DRIVE & WIRING

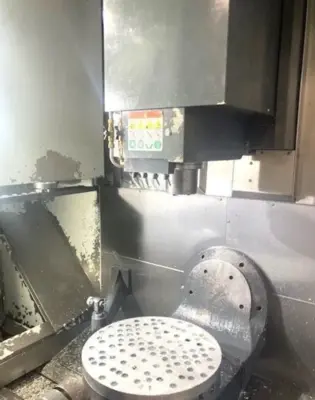

BUILT-IN 5-AXIS TABLE (TRUNNION/ROTARY TABLE)
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

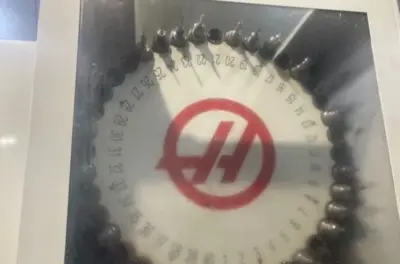

SIDE-MOUNT TOOL CHANGER (40 ATC)

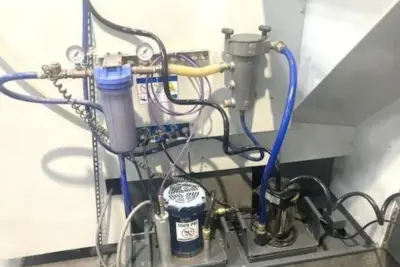

THROUGH-SPINDLE COOLANT (1,000 PSI)
PROGRAMMABLE COOLANT NOZZLE

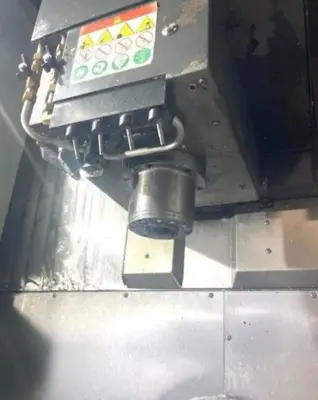

12,000 RPM INLINE GREASE-PACKED SPINDLE
CHIP CONVEYOR (BELT-TYPE)
75 GALLON FLOOD COOLANT SYSTEM
COLOR REMOTE JOG HANDLE
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL
HIGH-SPEED MACHINING
COORDINATE ROTATION & SCALING
VISUAL PROGRAMMING SYSTEM
SPINDLE ORIENTATION
EARLY POWER FAILURE DETECTION MODULE
SECOND HOME POSITION
RIGID TAPPING
MACROS
MEDIA DISPLAY
HAAS CONNECT
1GB MEMORY
ETHERNET
USB PORT
** MACHINE CUT PRIMARILY ALUMINUM
** AS OF DECEMBER, 2025, FEED CUTTING TIME: 3,500 HOURS
