2012 HANKOOK PROTEC 9NC
Have one to sell?
ConditionUsed
1 available

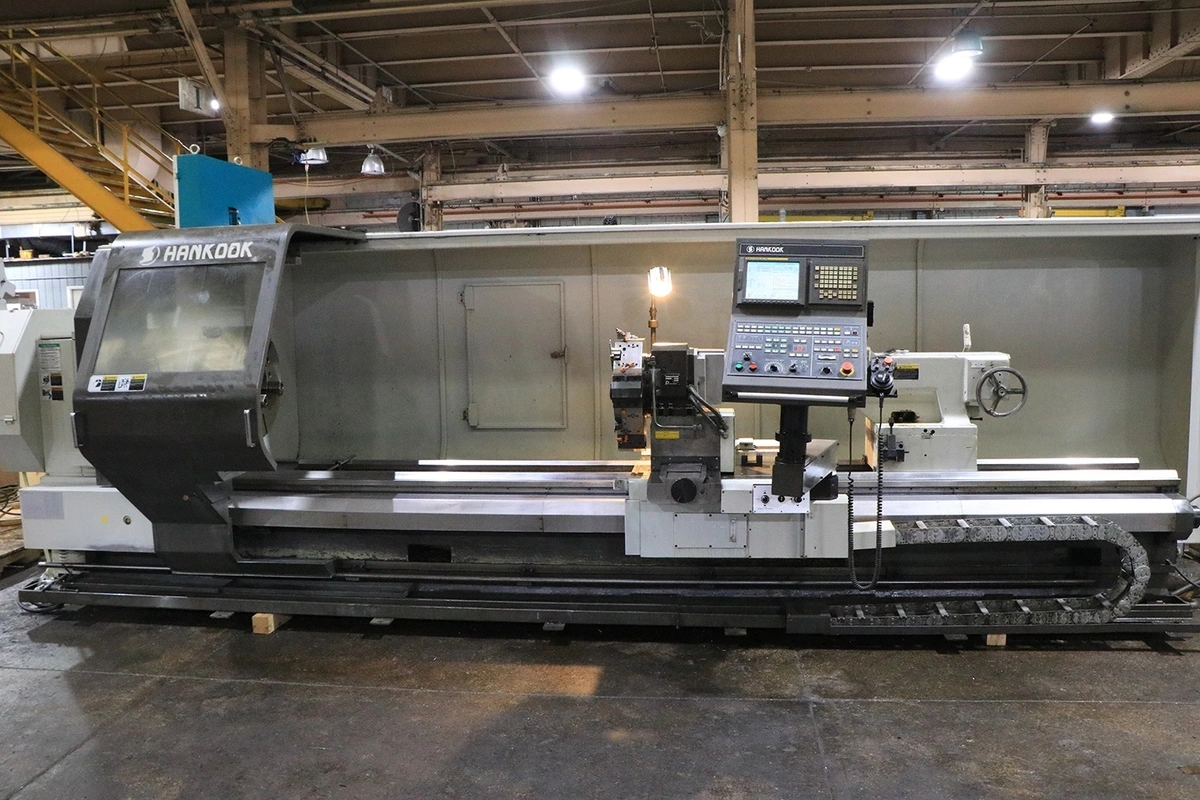

Used CNC Lathe with FANUC 21i-TB control and dual 24.5" Bison chucks. Swing of bed: 37.4". Spindle speeds up to 630 RPM. 11,000 lbs load capacity. Comes with tailstock, chip conveyor, and steady rests. Power: 35 HP.
SWING OF BED ..................... 37.4"
SWING OVER CARRIAGE .............. 24.8"
DISTANCE BETWWEN CENTERS ......... 157.48"
SPINDLE BORE ..................... 10"

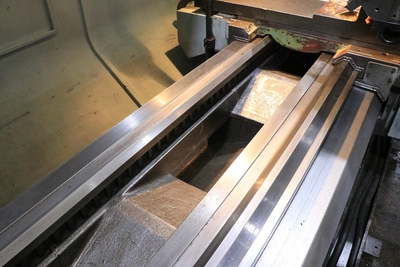

WIDTH OF BED ..................... 24.75"
POWER ............................ 35 HP

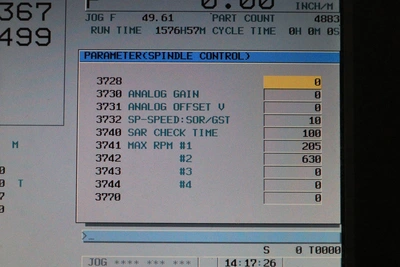

SPINDLE SPEEDS TWO RANGES:
LOW RANGE ..................... UP TO 205 RPM
HIGH RANGE .................... UP TO 630 RPM
MAX. TURNING LENGTH .............. 151"
LOAD CAPACITY BETWEEN CENTES ..... 11,000 LBS
APPROXIMATE DIMENSIONS ..... 255" L x 87" W x 73" H
(PLUS CHIP CONVEYOR)
APPROXIMATE WEIGHT ............... 22,000 LBS

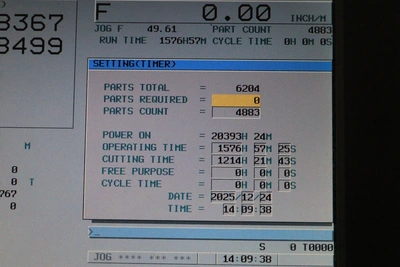

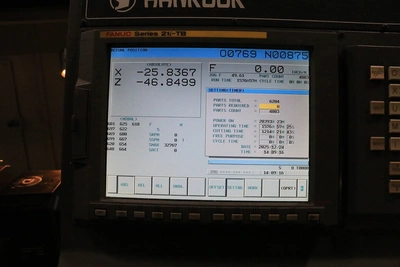

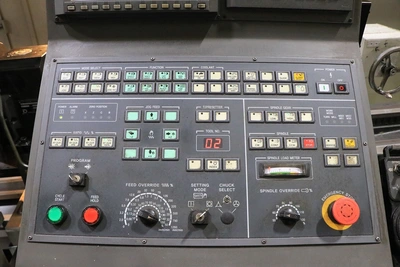

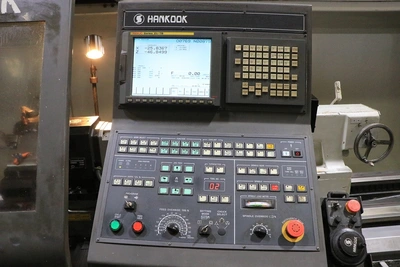

FANUC 21I-TB CNC CONTROL
w/REMOTE MPG JOG HANDLE

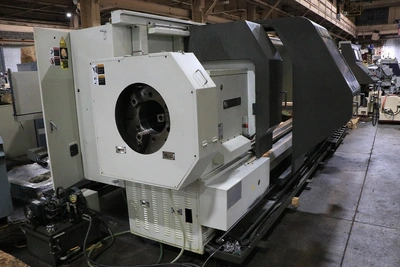

(2) 24-1/2" BISON SET-TRU 3-JAW CHUCKS w/9.921" BORE
MOUNTED ON FRONT & BACK OF HEADSTOCK

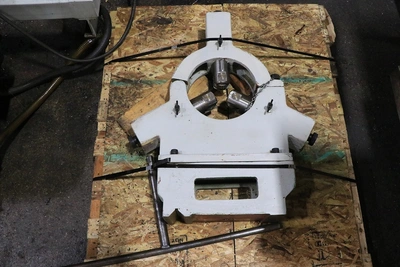

18" CAPACITY ROLLER TYPE STEADY REST
(2) 10" CAPACITY ROLLER TYPE STEADY RESTS

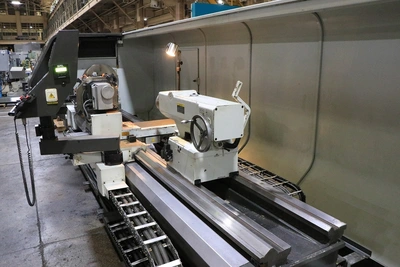

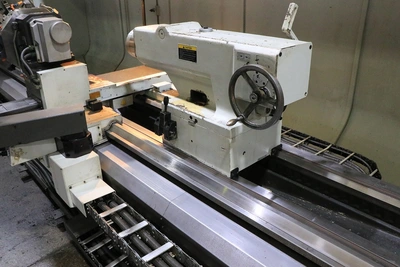

TOW ALONG TAILSTOCK

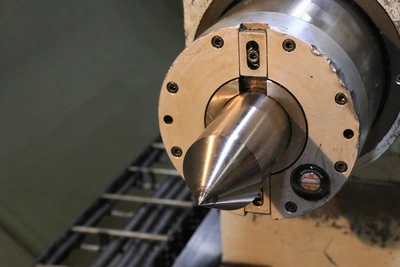

LIVE & DEAD QUILL IN TAILSTOCK
TWO SPEED QUILL IN TAILSTOCK

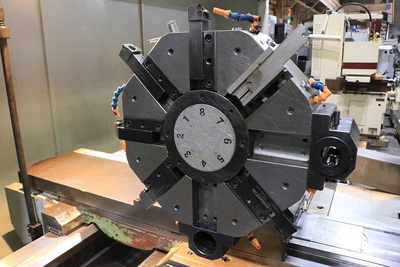

DUPLOMATIC EIGHT STATION INDEXABLE TURRET

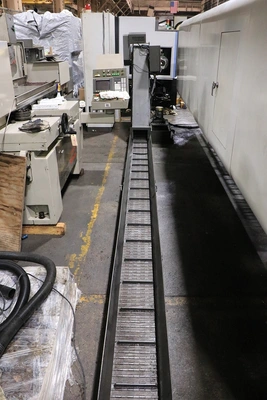

CHIP CONVEYOR
HIGH PRECISION BALL SCREWS FOR BOTH AXES
35 HORSE POWER SPINDLE MOTOR
