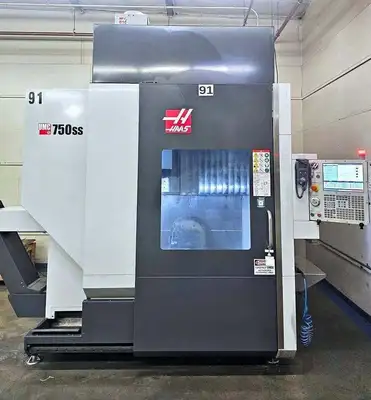

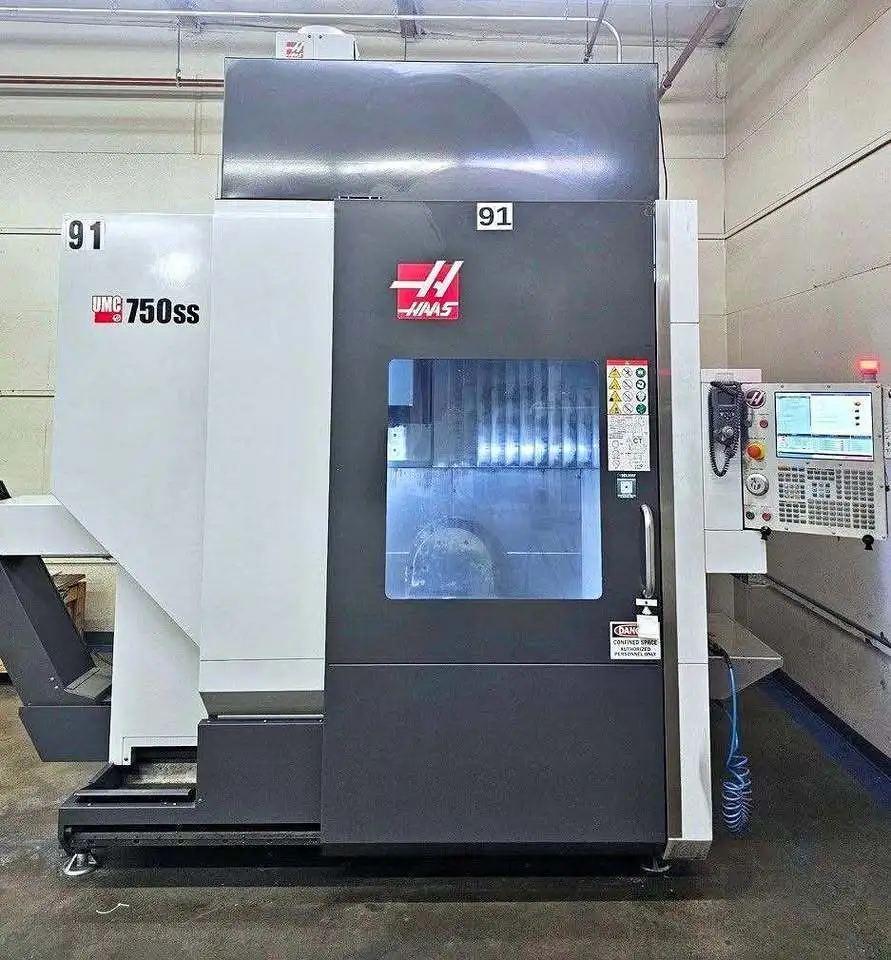

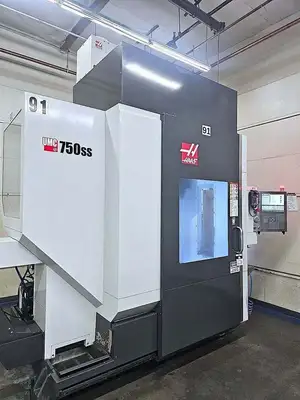

2017 HAAS UMC-750SS
Have one to sell?
ConditionUsed
1 available
Used universal machining center with 30" X, 20" Y, 20" Z travels. Equipped with HAAS CNC control, 15,000 RPM spindle, 40-position tool changer, dynamic work offsets, and programmable coolant nozzle.
X-AXIS TRAVEL: 30"
Y-AXIS TRAVEL: 20"
Z-AXIS TRAVEL: 20"
MAX. PART SWING: 27"
SPINDLE TAPER: CT 40
SPINDLE NOSE TO TABLE: 4"-24"
SPINDLE MOTOR: 30 HP
SPINDLE SPEEDS: TO 15,000 RPM
TABLE:
B-AXIS TILT/TRAVEL: +120/-35 DEGREES
C-AXIS ROTATION: 360 DEGREES
TABLE DIAMETER: 19.7"
TABLE WORK WEIGHT CAPACITY: 660 LBS.

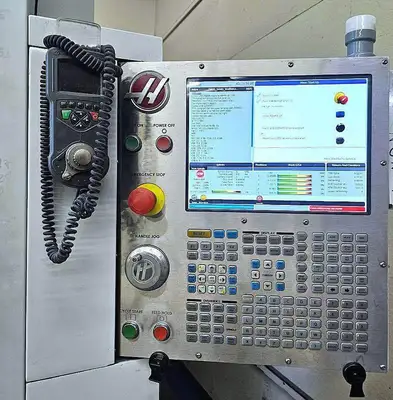

HAAS CNC CONTROL WITH 1 GB MEMORY EXPANSION
RJH-C - REMOTE JOG HANDLE WITH COLOR LCD
ETHERNET INTERFACE
HAAS CONNECT OPTION
2-AXIS PROGRAMMABLE TRUNNION TABLE
40-POSITION AUTOMATIC TOOL CHANGER
15,000 RPM SPINDLE
HIGH SPEED MACHINING VPS EDITING
HOME - SECOND HOME POSITION
MEDIA DISPLAY - MEDIA DISPLAY M-CODE
WIPS-R-EC RENISHAW INTUITIVE PROBING
RENISHAW OTS TOUCH-OFF PROBE
MACROS
UMC-750SS - VMC UMC MEDIUM
ROTATION AND SCALING
RTAP-3 RIGID TAPPING
DWO-DYNAMIC WORK OFFSETS & TCPC-TOOL CENTER POINT CONTROL
M19 SPINDLE ORIENTATION
COMPENSATION TABLES
PROGRAMMABLE COOLANT NOZZLE
300 PSI THRU SPINDLE COOLANT
EC-E4 BELT-TYPE CHIP CONVEYOR
