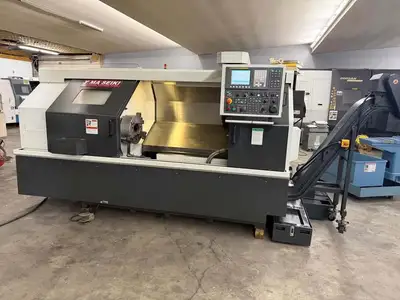

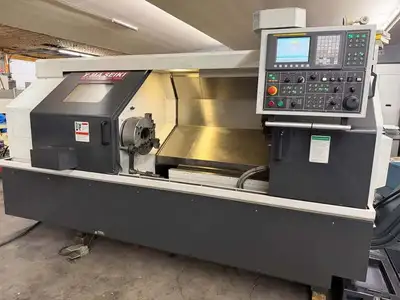

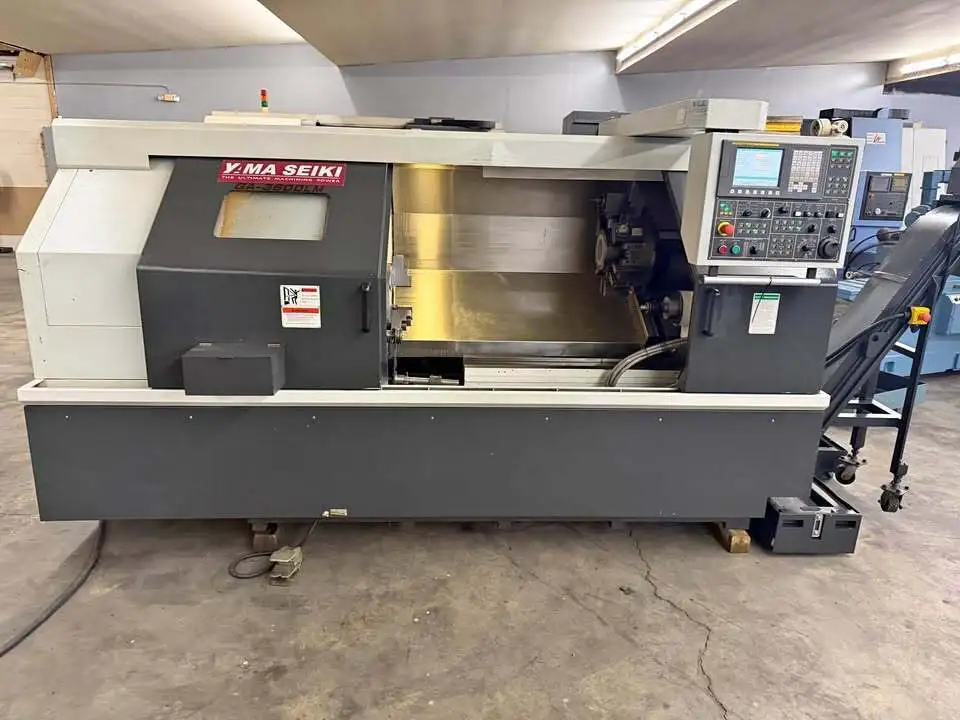

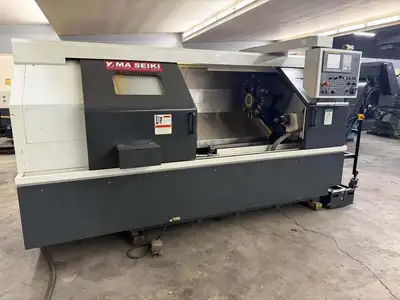

Used CNC Lathe, featuring 599mm max swing over saddle, 500mm turning diameter, 4 live tool holders, chip conveyor, and coolant unit. Equipped with FANUC Oi-TD. Weight: 7,000 kg.
CAPACITY :
Max. / Swing over saddle mm(in) : 599 mm (23.6″)
Max. Turning Diameter mm(in) : 500 mm (19.7″)
Max. Turning Length mm(in) : 1194 mm (47.00”)
Bar Capacity mm(in) : 104 mm (4.1’)
Live Milling : YES
C axis : YES
SPINDLE Chuck Size (in) (15″)
4 Live Tool Holders included
Hole through spindle mm(in) 121mm (4.76”)
Spindle Speed (rpm) rpm 2,500 rpm
Motor output ( cont. / 30 min.) Hp / kW 18.5 / 22 kW
Motor (Max/Cont.) : kW(HP) 25 / 30 HP
Spindle Type : Direct Belt Drive
Spindle Nose. : A2-11

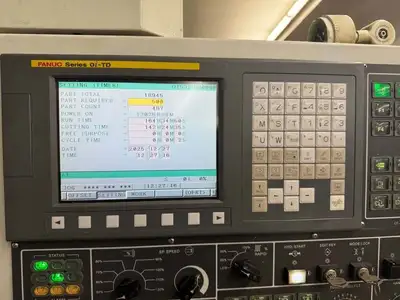

NC Controller : FANUC Oi-TD
FEED :
Rapid Travel (X/Z) m/min : 24m/min
Slide Type : Hardened & Ground Box Ways
X-axis servo motor : HP (KW) 4 HP(2.7 kW)
Z-axis servo motor : HP (KW) 6 HP (4.5 kW)
BLOCK TOOL- No. of Tool / Stations : 12
Tool Size OD mm(in) : 25mm(1”)
ID mm(in) : 50mm(2”)
TANK CAPACITY :
Coolant Tank Gallon / liter : 38 gal. (145L)
POWER SUPPLY :
Electric Power Supply - 38 kVA
Voltage V/Hz : 220V-3 Phase
Dimensions :
Weight kg(lb) 7,000 kg ( 15,400 lb )

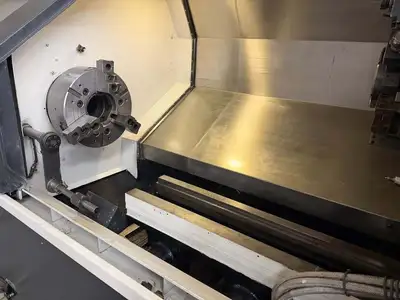

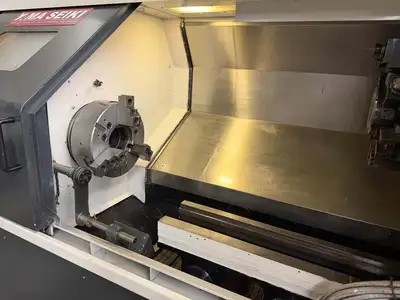

15”- 3 Jaw Chuck

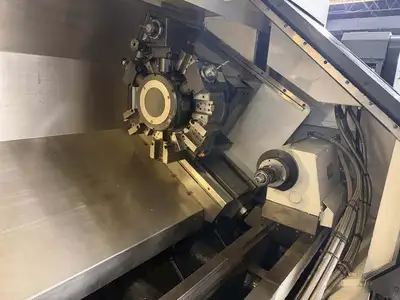

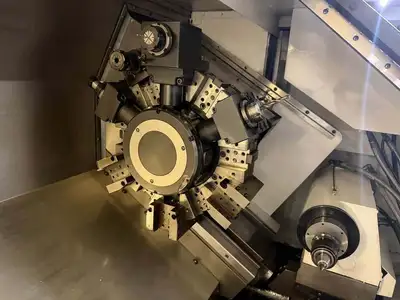

4 Live Tool Holders
3 Static Tool Holder
Chip Conveyor
Coolant Unit
Manuals
