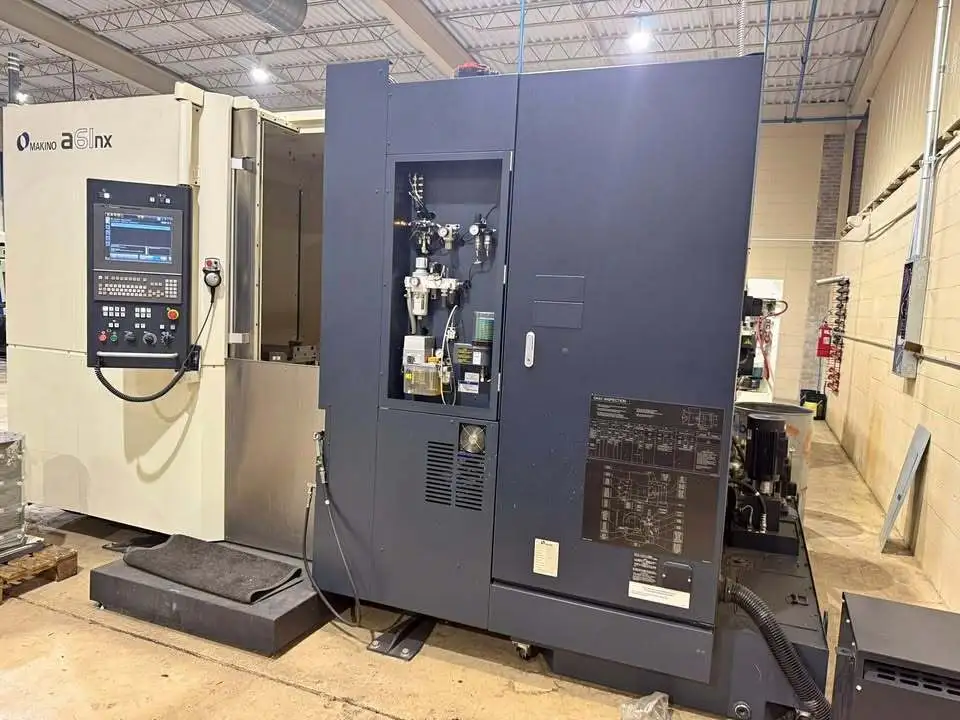

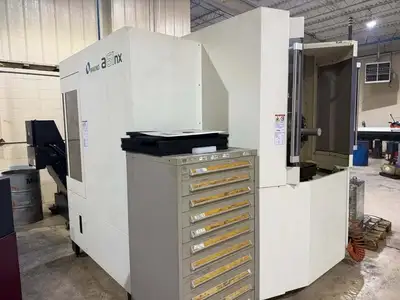

Used Horizontal Machining Center for sale. Features include a Professional 6 CNC control, full contouring pallets, 5-axis capability, 14000 RPM spindle, 60-tool changer, and 1000 PSI coolant. Only 53 cutting hours!
Axis............................................ 5

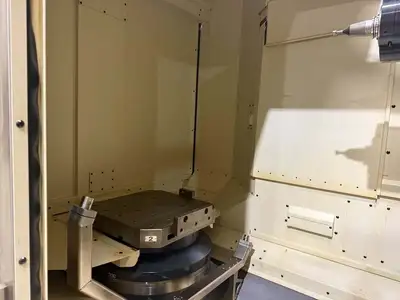

# Pallets....................................... 2
Pallet Size..................................... 19.7" x 19.7"
# Index Positions............................... Full Contouring- 360,000 Positions
Max Pallet Load................................. 1,574 lb
X-Axis (Cross Travel)........................... 28.7"
Y-Axis (Vertical Travel)........................ 25.6"
Z-Axis (Column Travel).......................... 31.5"
Max Spindle Nose to Pallet Center (Horizontal).. 35.4"
Min Spindle Nose to Pallet Center (Horizontal).. 3.9"
Rapid Traverse Rate, All Axes................... 2,360 IPM
Spindle Power................................... 29.5 hp

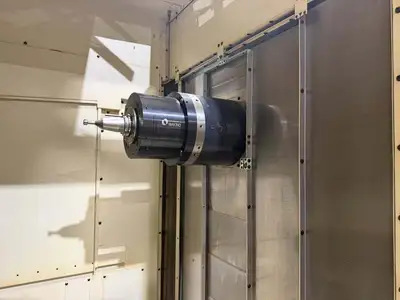

Spindle Speed Range............................. 50 - 14,000 RPM
Automatic Tool Changer Capacity................. 60
Dimensions...................................... 115" x 193"
Weight.......................................... 27,000 lbs

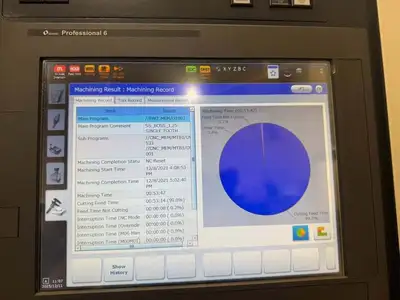

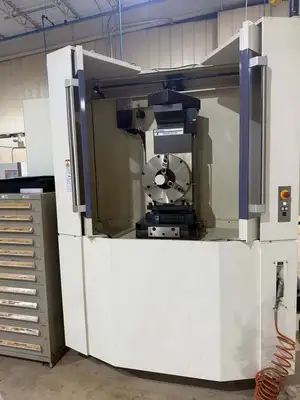

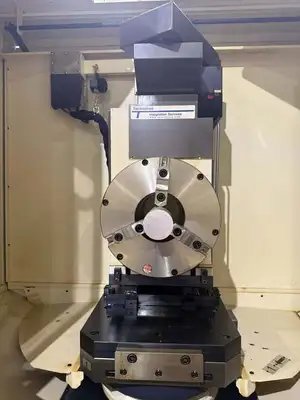

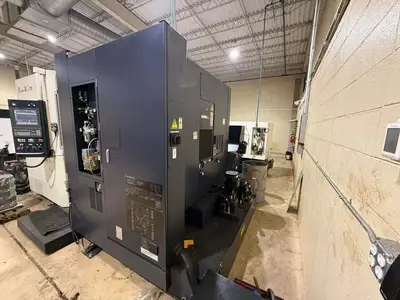

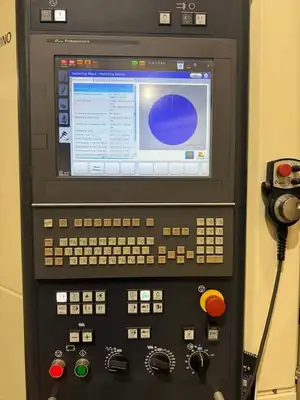

Professional 6 CNC Control, (2) 19.7" x 19.7" Full Contouring Pallets, (1) Pallet has a 13.7" Diameter Tsudakoma RTV-304 5th Axis, 14000 RPM Spindle, 60 Station Tool Changer, 1000 PSI through-Spindle Coolant, PQI/Renishaw OMP400 & NC4S Probing System (Probe Not Included), Upgraded memory- 2MB, Upgraded Super GI.5 Control- Super Geometric Intelligence Software, SGI.5 Full Contouring 5th Axis Software, Titled Working Plane Command, Chip Conveyor & Coolant System, Only 53 Cutting Hours!
