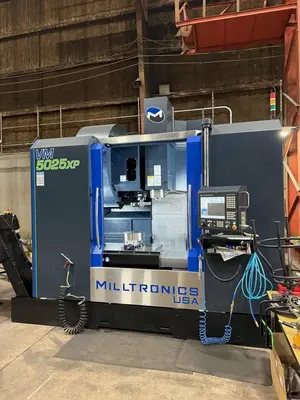

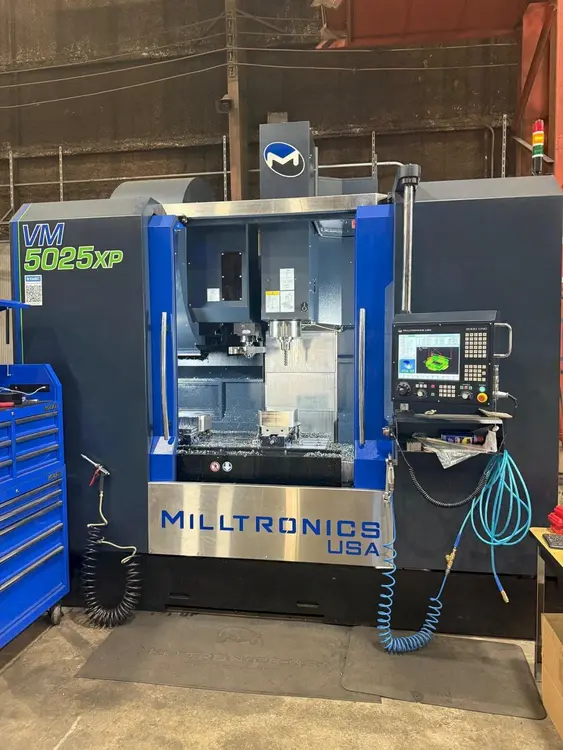

Used 2021 MILLTRONICS VM5025XP | Vertical Machining Centers

Capacity:
X-Axis Travel - 50"
Y-Axis Travel - 25"
Z-Axis Travel - 24"
Table Size - 54" x 25"
Allowable Table Load - 4190 lbs
T-Slot (6 total) - 0.71" on 3.94" centers
Spindle:
Spindle Gage Lin to Table Distance - 6" to 30"
Way Cover to Spindle Center - 28.7"
Spindle Taper - ISO No. 50 (Supports BIG-PLUS Tools)
Spindle Speed - 8000 RPM
AC Spindle Motor - 35/25 HP
Automatic Tool Changer:
ATC Type - Double Arm
Number of Tools - 30
Tool Shank - CT50
Max Tool Diameter / Adjacent Location Empty - 4.9" / 8.7"
Max Tool Length - 11.8"
Max Tool Weight - 33 Lbs.
Motion:
X/Y , Z Axis Rapid Traverse Rate - 1000 / 787 IPM
Max Cutting Feed Rate - 500 IPM
Least Command Increment - 0.0001"
X-Axis Thrust (Peak) - 6065 Lbs
Y-Axis Thrust (Peak) - 6065 Lbs
Z-Axis Thrust (Peak) - 9531 Lbs.
General:
Machine Height - 123"
Floor Space Required (W x D) - 128" x 108"
Additional Width for Conveyor Discharge - 37"
Machine Weight - 29,100 Lbs.
Power Required (FL kVA/FL A @230V) - 38kVA / 94A
Voltage Required - 208-240 Volts / 3 Phase
