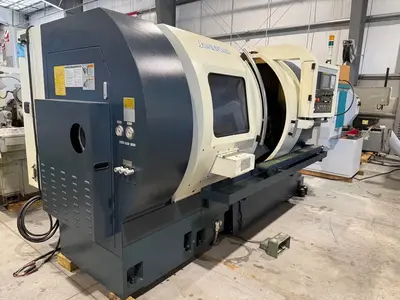

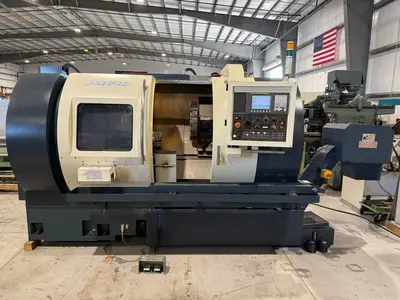

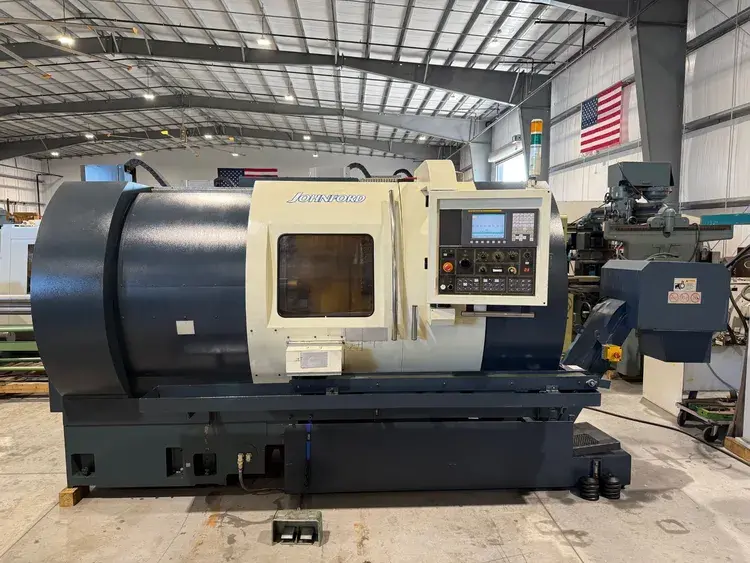

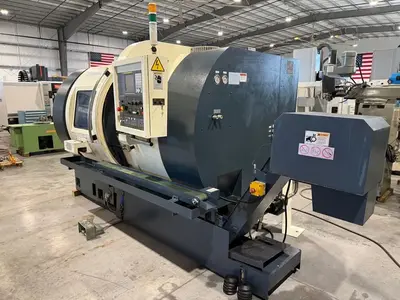

2010 JOHNFORD SL-500A

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
JOHNFORD
Model:
SL-500A
Year:
2010
Stock #:
X3X2717
Status:
For Sale

Description

Used CNC Lathe, used, 2-axis, with 22.8" swing, 28" machining length, and 35 hp power. Features include FANUC Oi-TD CNC Control, 12" chuck, parts catcher, conveyor, and chip conveyor. Wired for 220V/3 phase/60 Hz.

Swing22.8"579.12 mm
Machining Length28"711.2 mm
# Axis22
Chuck Size12"304.8 mm
Bar Capacity4.13"104.9 mm
Power35 hp26.1 kW
Max RPM3,500 RPM3,500 RPM
Turning Dia17.7"449.58 mm
TailstockYesYes
Live ToolingNoNo
Sub SpindleNoNo
ControlCNC (Fanuc)CNC (Fanuc)
Dimensions168” x 92” x 82” H168” x 92” x 82” H
Weight16,000 Lbs16,000 Lbs

Swing over bed- 22.8”
Swing over cross slide- 17.7”
Spindle taper- A2-11
Spindle bore- 4.5”
Spindle speed- 2,800 R.P.M.

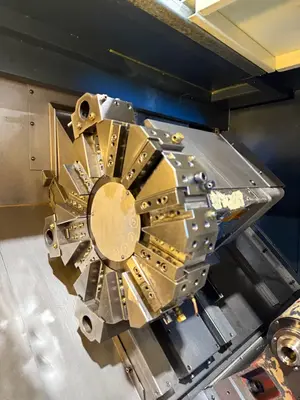

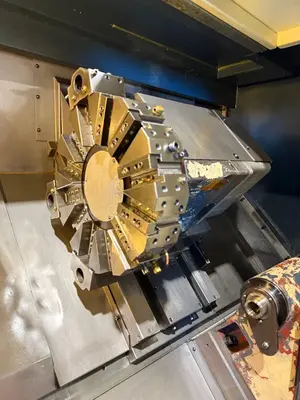

Turret capacity- 12 station
X axis travel- 9.8”
Z axis travel- 25.6”

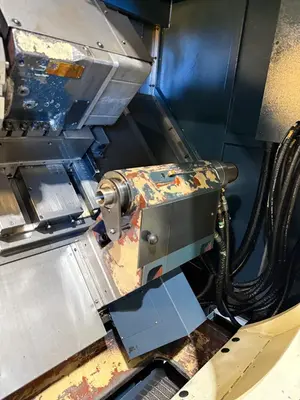

Tailstock travel- 20.9”
Tailstock quill travel- 3.9”
Tailstock quill diameter- 3.3”
Tailstock taper- #5 Morse

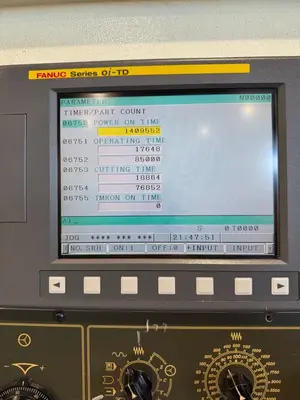

FANUC Oi-TD CNC Control

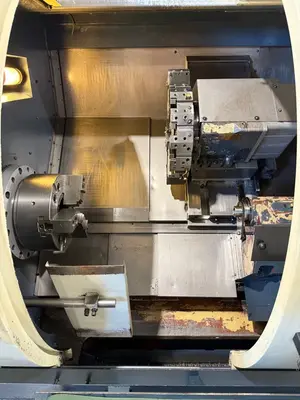

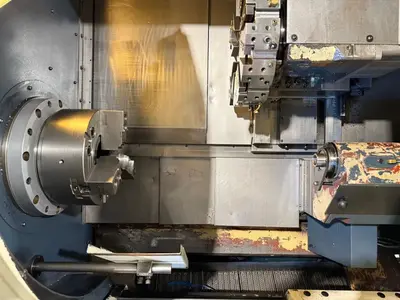

12” AUTO-STRONG 3 Jaw Chuck
Parts catcher and door
Parts conveyor
Leveling pads
Coolant tank & Pump
Chip Conveyor
Machine is wired for 220 volt / 3 phase / 60 H.Z.
