2008 HAAS TM-2
Have one to sell?
ConditionUsed
1 available

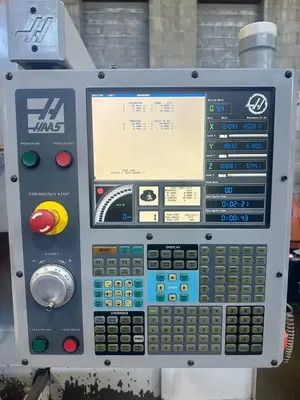

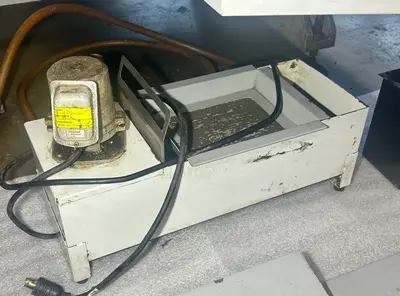

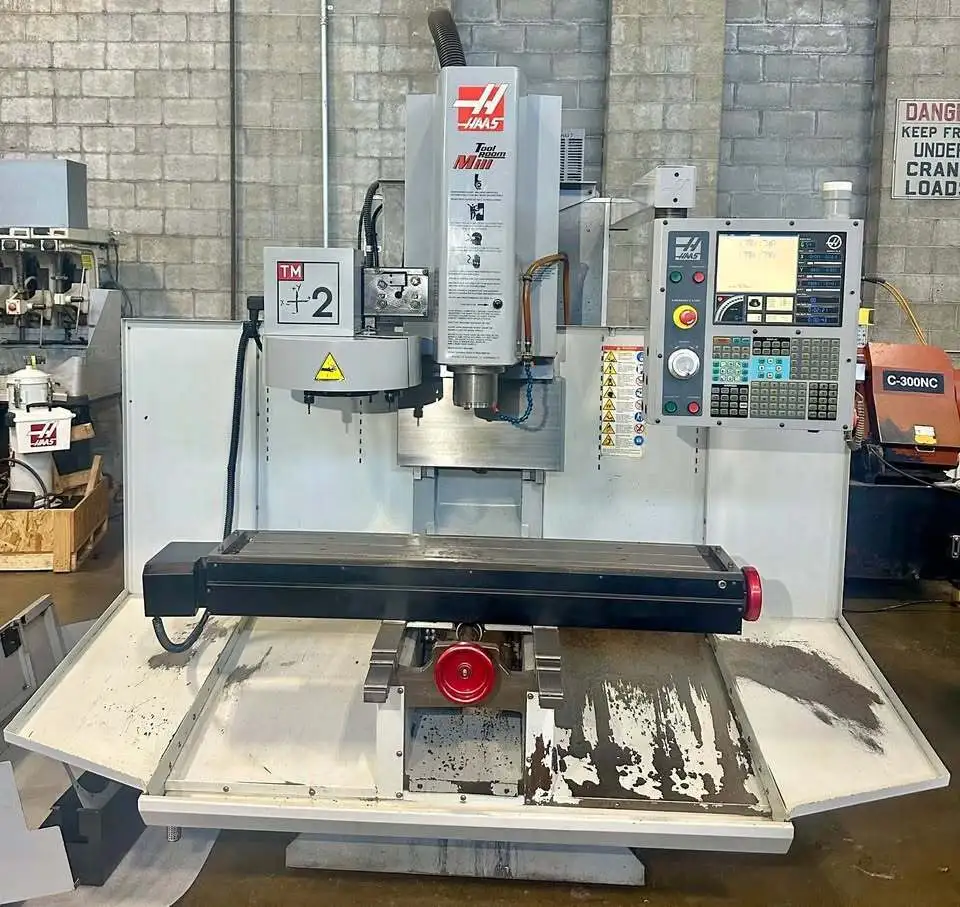

Vertical Machining Center in used condition. Features Haas CNC Control, 57.75"x10.5" table, CAT 40 Taper, 6000 RPM spindle, 10-station tool changer, 7.5 hp spindle power, and coolant system. Includes several tool holders.
Max Table Load Capacity............................ 1,000 lb
X-Axis (Longitudinal Travel)....................... 40"
Y-Axis (Cross Travel).............................. 16"
Z-Axis (Vertical Travel)........................... 16"
Max Clearance Tabletop to Spindle Nose............. 20"
Min Clearance Tabletop to Spindle Nose............. 4"
Feed Rates (X, Y, & Z Axis)........................ 200 in/min.
Rapid Traverse Rate (X, Y, & Z Axis................ 200 in/min.
Spindle Power...................................... 7.5 hp
Max Spindle Speed.................................. 6,000 RPM
Spindle Taper...................................... CAT-40
Torque, Up To...................................... 33 ft-lb @1200 RPM

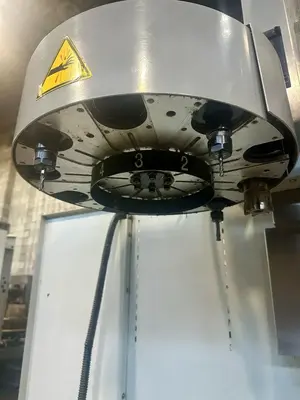

Automatic Tool Changer Capacity.................... 10
Automatic Tool Changer Style....................... Carousel
Tool Change Time................................... 5.7 sec Tool-to-Tool (avg)
Max Tool Diameter.................................. 3.5"
Max Tool Weight.................................... 12 lb
Electrics.......................................... 208/240 - 3/1 - 50/60
Dimensions......................................... 85" x 64"
Weight............................................. 3,600 lbs
Table-L............................................ 57.75"
Table-W............................................ 10.5"
T-Slot Width....................................... 0.625"
T-Slot Center Distance............................. 4"
Haas CNC Control, 57.75" x 10.5" Table, CAT 40 Taper, 6000 Max Spindle RPM, 10 Station Tool Changer, Coolant System, Several Tool Holders Included.
Vertical Machining Center in used condition. Features Haas CNC Control, 57.75"x10.5" table, CAT 40 Taper, 6000 RPM spindle, 10-station tool changer, 7.5 hp spindle power, and coolant system. Includes several tool holders.
Max Table Load Capacity............................ 1,000 lb
X-Axis (Longitudinal Travel)....................... 40"
Y-Axis (Cross Travel).............................. 16"
Z-Axis (Vertical Travel)........................... 16"
Max Clearance Tabletop to Spindle Nose............. 20"
Min Clearance Tabletop to Spindle Nose............. 4"
Feed Rates (X, Y, & Z Axis)........................ 200 in/min.
Rapid Traverse Rate (X, Y, & Z Axis................ 200 in/min.
Spindle Power...................................... 7.5 hp
Max Spindle Speed.................................. 6,000 RPM
Spindle Taper...................................... CAT-40
Torque, Up To...................................... 33 ft-lb @1200 RPM
Automatic Tool Changer Capacity.................... 10
Automatic Tool Changer Style....................... Carousel
Tool Change Time................................... 5.7 sec Tool-to-Tool (avg)
Max Tool Diameter.................................. 3.5"
Max Tool Weight.................................... 12 lb
Electrics.......................................... 208/240 - 3/1 - 50/60
Dimensions......................................... 85" x 64"
Weight............................................. 3,600 lbs
Table-L............................................ 57.75"
Table-W............................................ 10.5"
T-Slot Width....................................... 0.625"
T-Slot Center Distance............................. 4"
Haas CNC Control, 57.75" x 10.5" Table, CAT 40 Taper, 6000 Max Spindle RPM, 10 Station Tool Changer, Coolant System, Several Tool Holders Included.
