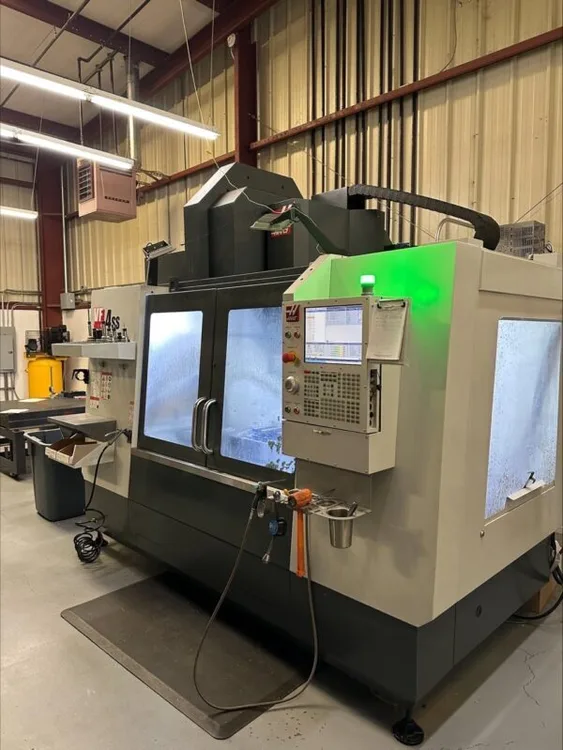

Used 2021 HAAS VF-4SS | Vertical Machining Centers
Have one to sell?
ConditionUsed
1 available
HAAS VF-4SS, 2021 model, vertical machining center. Features 50"x20"x25" travel, 30 hp, 12,000 RPM, CT 40 taper, table size 52"x19.5". Includes 4th & 5th axis drives, probing system, coolant chiller, high-speed tool changer, and more.
Table Size: 52″ x 19.5″
Max Weight On Table: 1,750 LBS
X Axis Travel: 50″
Y Axis Travel: 20″
Z Axis Travel: 25″
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Spindle Motor: 30 HP
Rapids (X,Y,Z): 14000 IPM
ATC: 50
4th & 5th Axis Drives
TR200Y Trunnion
Wireless Intuitive Probing System
Chip Auger
Coolant Chiller
High-Intensity Lighting
Extended Z Axis Clearance
Programmable Coolant Nozzle
Coolant Tank Oil Skimmer
Chip Tray Filter Kit
32 GB Expanded Memory
High Speed Side Mount Tool Changer (50+1)
Macros
Rotation & Scaling
Rigid Tapping
High Speed Machining
