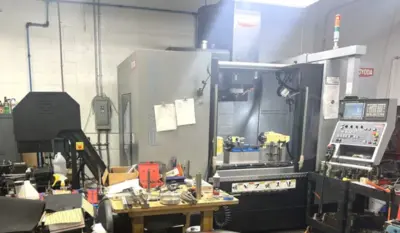

2018 TOYODA FV1165
Have one to sell?
ConditionUsed
1 available

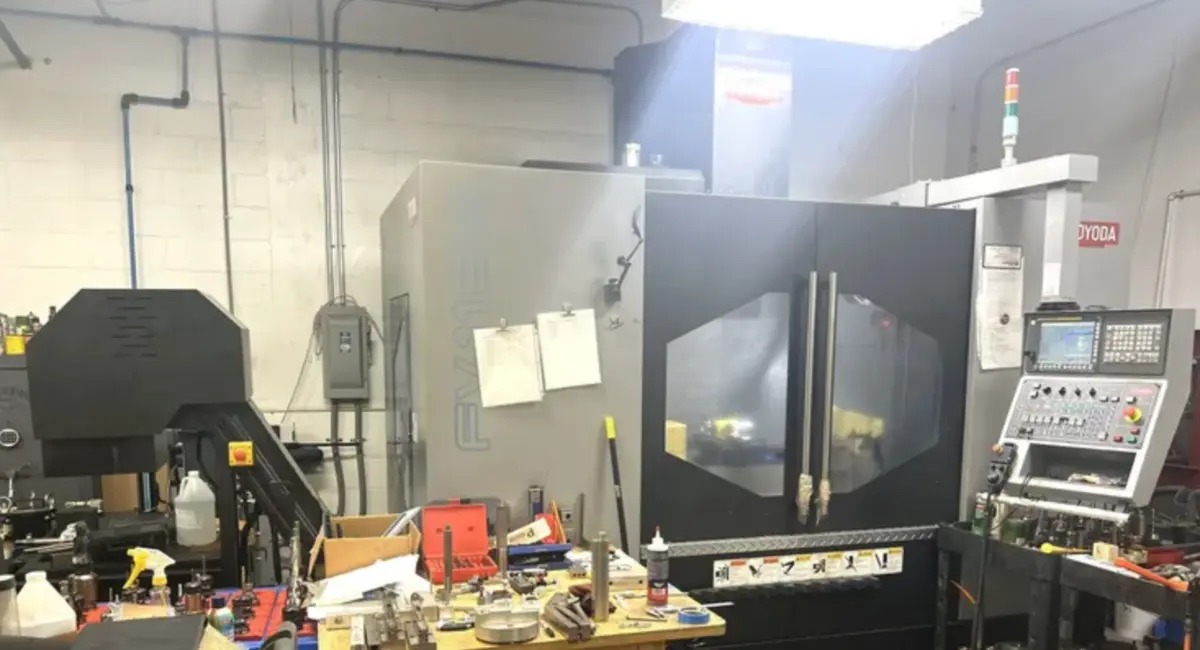

Vertical Machining Center, used, features 43.3" X, 25.6" Y, 23.6" Z travels, 25 hp, 8,000 RPM, 32 ATC, CAT-40 taper. Equipped with FANUC CNC, probing, chip system, air cooler, and more. Cutting aluminum with 600 hours.
TABLE LENGTH 51.2"
TABLE WIDTH 25.6"
TABLE CAPACITY 2,425 lb
X-AXIS TRAVEL 43.3"
Y-AXIS TRAVEL 25.6"
Z-AXIS TRAVEL 23.6"
SPINDLE SPEED 8,000 RPM
SPINDLE MOTOR 25 hp
SPINDLE TAPER CAT 40 (BIG PLUS)
TOOL CAPACITY (ATC) 40
RAPID TRAVERSE - X AXIS 1,181 in/min.
RAPID TRAVERSE - Z-AXIS 945 in/min.
CUTTING FEEDRATE 945 ipm
ROTARY OR TRUNNION Yes
APPROX MACHINE WEIGHT 16,000 lb

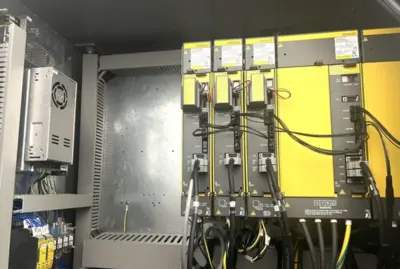

FANUC Oi-MD CNC CONTROL
HP GEARED DRIVEN SPINDLE
HARDENED & GROUND BOX WAYS
4TH & 5TH AXIS DRIVES & WIRING
PROBING SYSTEM

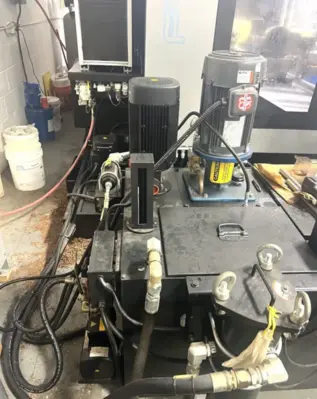

THROUGH SPINDLE COOLANT (1,000 PSI) UPGRADE
7.87" RISER (200MM)
PROGRAMMABLE AIR BLAST
CHIP WASH DOWN COOLANT
CHIP WASH GUN
COOLANT SYSTEM
DUAL CHIP AUGER (EACH SIDE OF TABLE)
LIFT UP CHIP CONVEYOR (47")

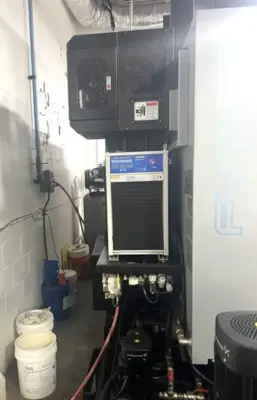

SPINDLE AIR COOLER
400 BLOCK LOOK-AHEAD UPGRADE
RIGID TAPPING
** ORIGINAL OWNER
** MACHINE CUTTING PRIMARILY ALUMINUM

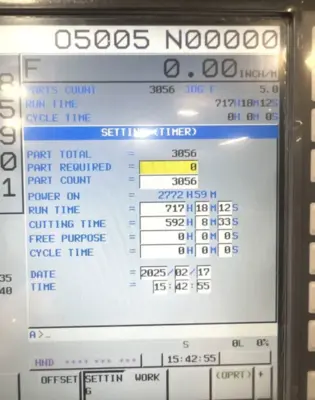

** AS OF SEPTEMBER, 2025 - CUTTING TIME HOURS: 600

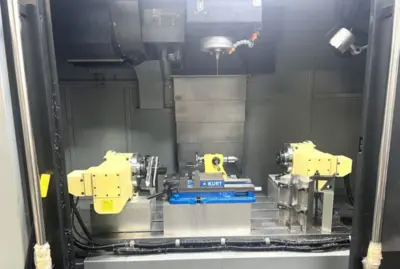

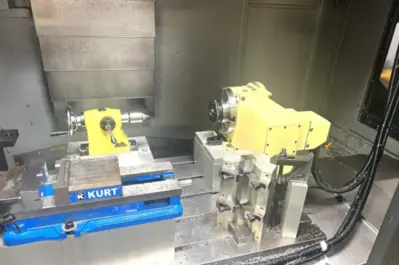

** VISES AS PICTURED NOT INCLUDED

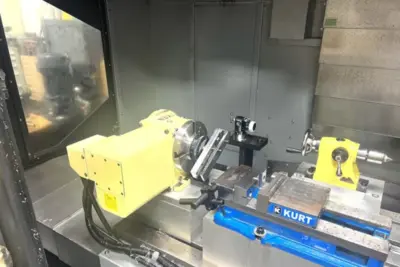

** 7" NIKKEN ROTARIES AS PICTURED NOT INCLUDED - BUT AVAILABLE
