2024 HAAS ST-15Y
Have one to sell?
ConditionUsed
1 available

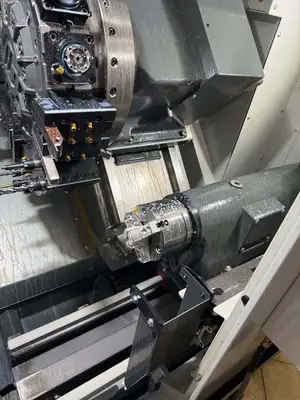

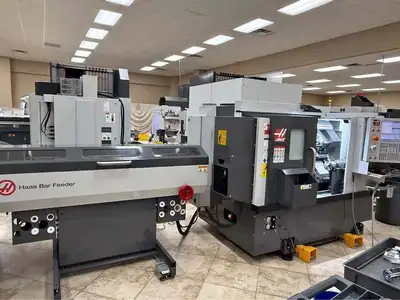

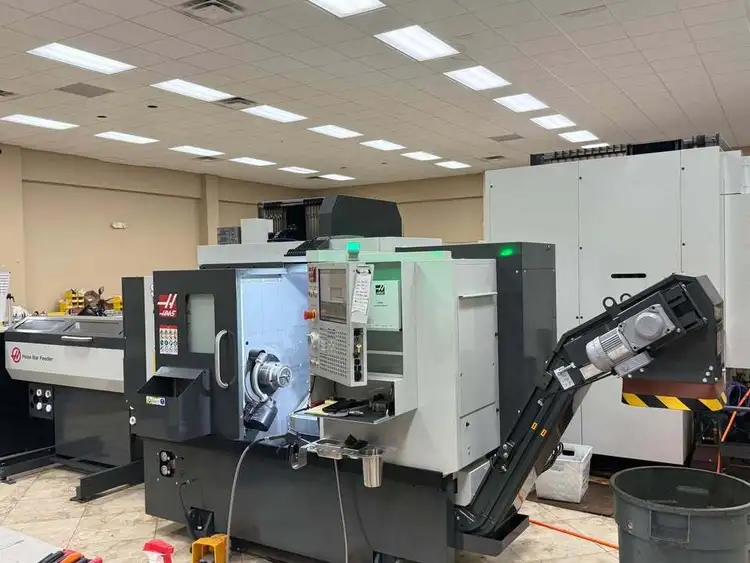

Used CNC Lathe with 20 hp, 6,000 RPM, and 2.5" bar capacity. Max cutting diameter of 11" and length of 16". Includes 8.3" 3-jaw hydraulic chuck, 24-station turret, and tooling features. Equipped with Haas Bar Feeder.
6,000 RPM Main Spindle

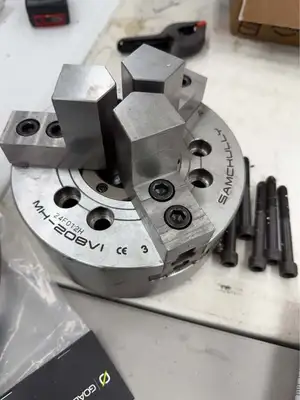

8.3" 3-Jaw Hydraulic Chuck A2-6
3.5" Spindle Bore
2.5" Bar Capacity
16" Max Cutting Length
16.5" Max Part Swing
11" Max Cutting Diameter
Y-Axis Travels: ± 2.0"
X-Axis Travels 7.88"
Z-Axis Travels: 16"

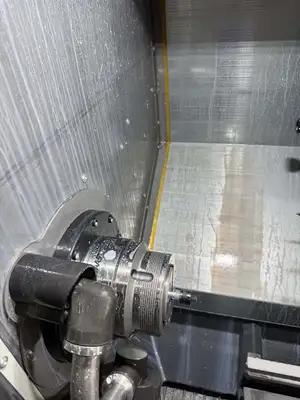

6,000 RPM SUB SPINDLE 5.3" Chuck A-25
4,000 RPM Live Tooling C-Axis

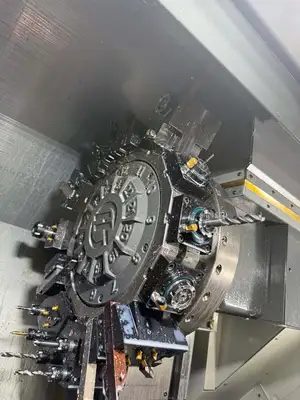

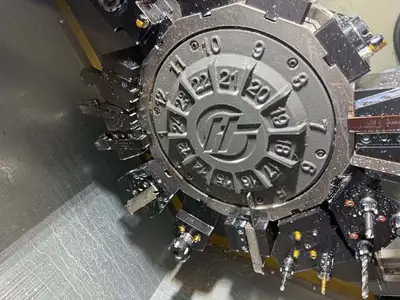

24 Station BMT-45 Turret
20 HP Motor
Automatic Tool Pre-Setter

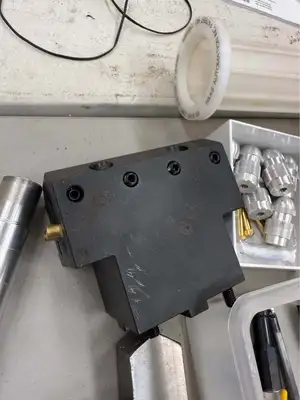

4 Live Tooling Holders & All Available Tooling Pictured

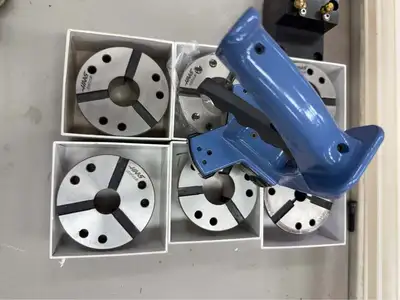

Royal Quick-Change Colet Chuck (HQCBD-65)
Interpolated Motion and Positioning
Rigid Tapping
Media Display M Code
Visual Part Programming
Spindle Orientation
User Definable Macros
Advanced Tool Management
1 GB Memory /Ethernet / Wifi HAAS Connect
Chip Conveyor
30 Gallon Coolant Tank and Pump
Low Voltage Internal Transformer

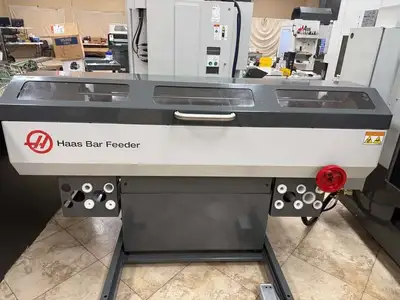

HAAS Bar Feeder & Spindle Liners
Cabinet Cooler
