HARRISON 17
Have one to sell?
ConditionUsed
1 available

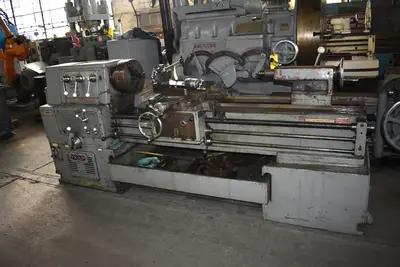

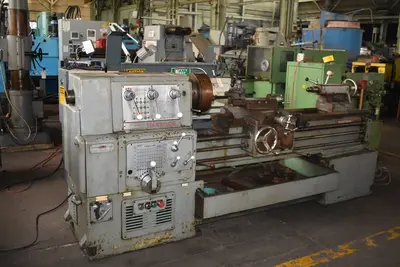

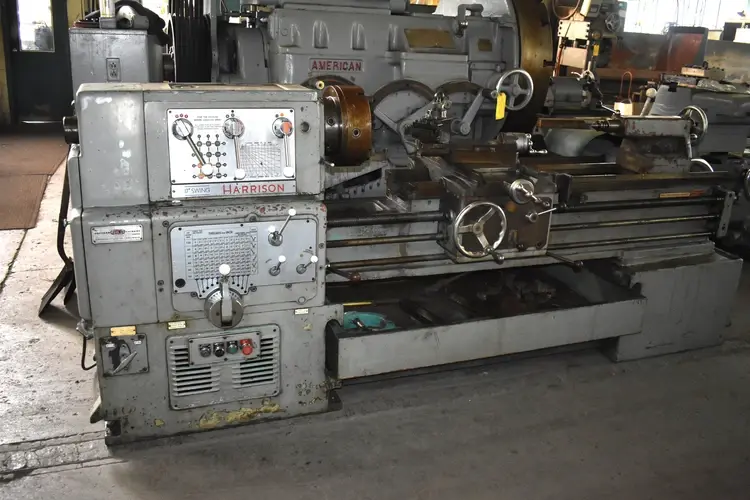

Used Harrison 17 Engine Lathe. Features 26" swing, 58" centers, 3.0625" spindle bore, and 10 hp power. Includes 12" 3- and 4-jaw chucks, 7" steady rest, and tool post. With induction-hardened ways and a 12.75" cross-feed travel.
Swing Over Bed Ways, Rated .......... 17"
Swing Over Bed Ways, Actual .......... 17.375"
Swing Thru Gap .......... 26"
Swing Over Carriage Wings .......... 17.375"
Swing Over Cross-Slide .......... 9.875"
Length Of Gap In Front Of Face Plate .......... 10-1/2"
Distance Between Centers .......... 58"
Hole Thru Spindle .......... 3-1/16"
(12) Spindle Speeds, Range .......... 35 to 1500 RPM
(66) Longitudinal Carriage Feeds .......... .0019 to .057 IPR
(66) Cross Carriage Feeds, Range .......... .0009 to .028 IPR
(66) Thread Changes, Range .......... 2 to 120 TPI
Cross-Slide Cross Feed Travel .......... 12.75"
Compound Rest Travel .......... 8.5"
Tailstock, Spindle Taper .......... #4 MT
Tailstock, Spindle Diameter .......... 2.375"
Tailstock, Spindle Travel .......... 6.5"
Motor, Horsepower .......... 10 HP
12" 3-Jaw Chuck w/Jaws

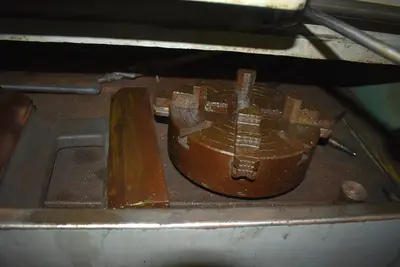

12" 4-Jaw Chuck w/Jaws

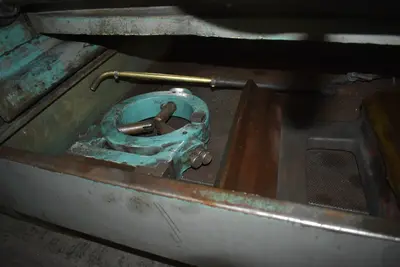

7" Steady Rest - Tool Post
Induction Hardened Ways
