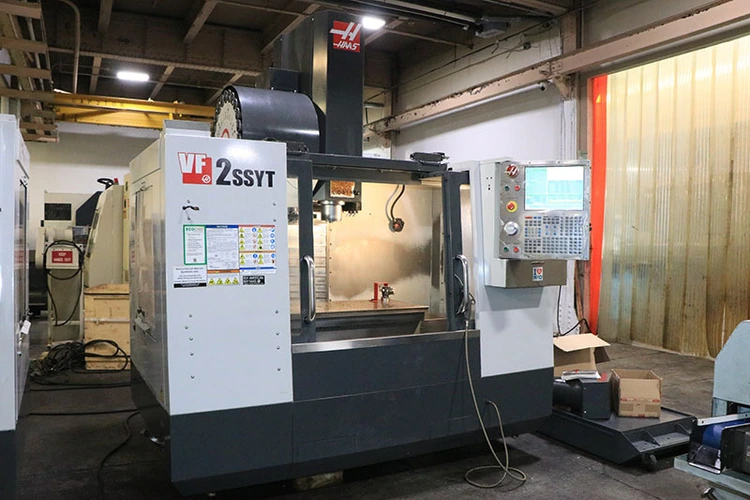

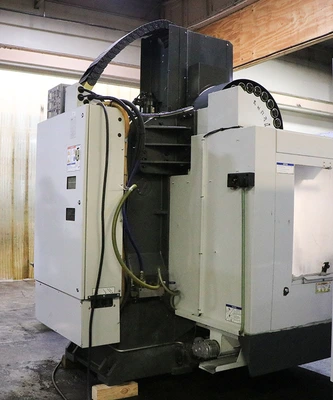

2011 HAAS VF-2SSYT
Have one to sell?
ConditionUsed
1 available
Used Vertical machining center, equipped with HAAS control, spindle speeds up to 12,000 RPM, and advanced features like rigid tapping and Renishaw programming. 30" x 20" travel with 24-tool magazine capacity.
X-AXIS TRAVEL .................... 30" 762mm
Y-AXIS TRAVEL .................... 20" 508mm
Z-AXIS TRAVEL .................... 20" 508mm
SPINDLE SPEED .................... 12,000 RPM
SPINDLE MOTOR .................... 30 HP

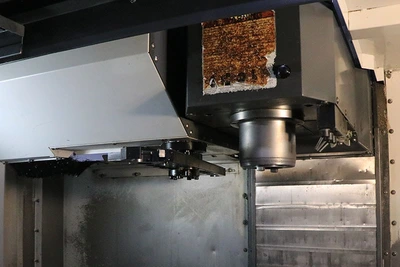

SPINDLE DRIVE .................... INLINE DIRECT DRIVE
SPINDLE TAPER .................... CT 40
TOOL MAGAZINE CAPACITY ........... 24 ATC
MAXIMUM TOOL DIAMETER/WEIGHT ..... 3.0" / 12 LBS
RAPID TRAVERSE RATES ............. 1400 IPM

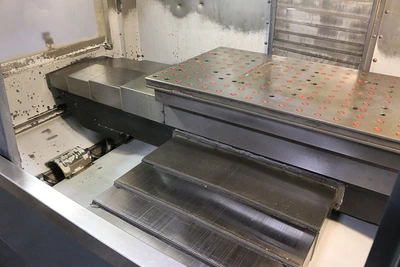

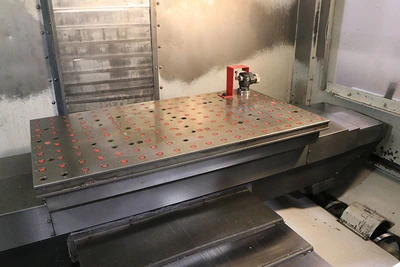

TABLE SIZE ....................... 36" X 18"
TABLE LOAD CAPACITY .............. 1500 LBS
MACHINE WEIGHT: .................. 8,200 LBS

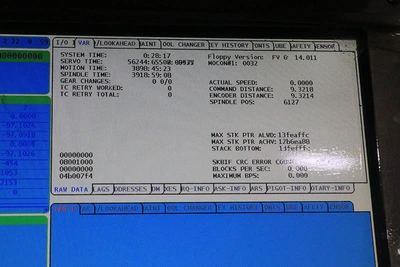

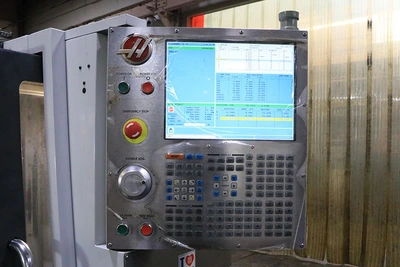

HAAS CONTROL
RIGID TAPPING, ROTATION & SCALING, QUICK CODE,
SPINDLE ORIENTATION, NETWORKING, HAAS EDITOR
USER-DEFINABLE MACROS, DNC ENABLED
ADV TOOL MGMT, INTUITIVE PART PROG, SPINDLE LOAD METER
RENISHAW INTUITIVE PROGRAMING SYSTEM (WIPS)

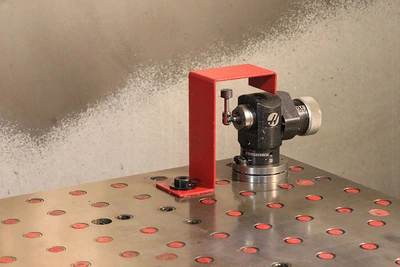

TOOL SETTER
COOLANT SYSTEM

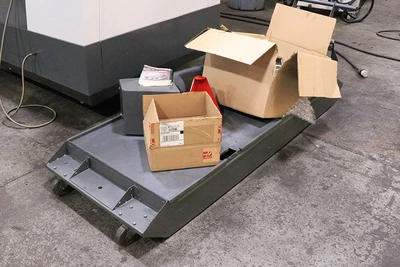

MULTI-CHIP AUGER CONVEYOR
24 + 1 TOOL SIDE-MOUNTED TOOL CHANGER
