2023 HYUNDAI WIA SE2200LSY
Have one to sell?
ConditionUsed
1 available

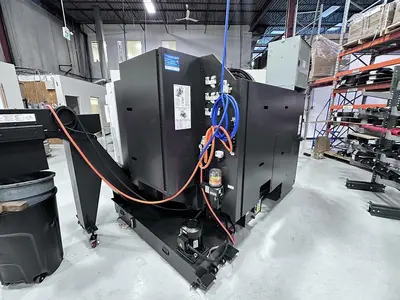

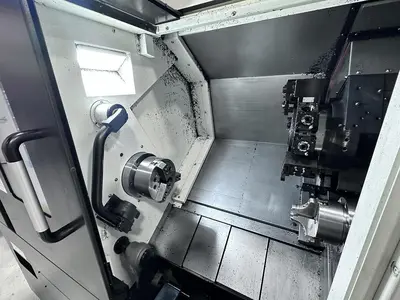

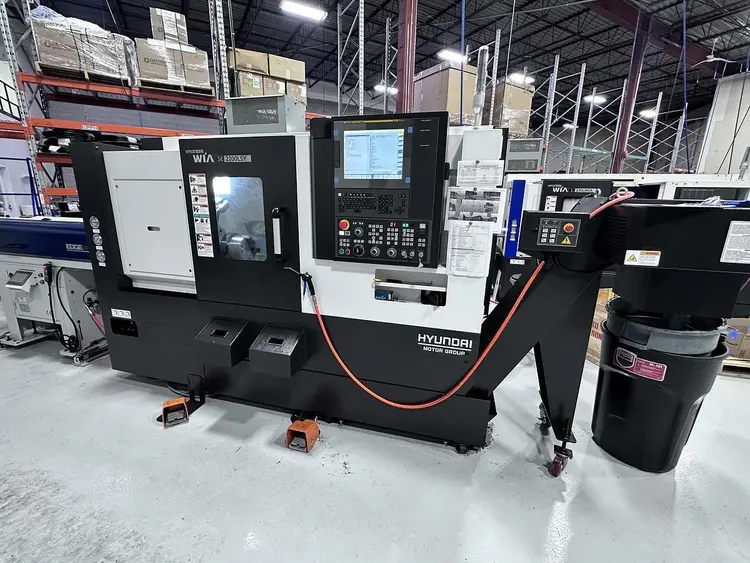

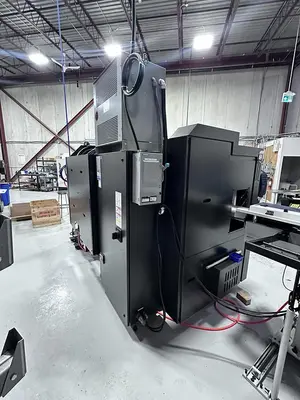

2023 HYUNDAI WIA SE2200LSY CNC lathe, used. With FANUC i Series, chip conveyor, 2022 Rebel EcoFeed barfeeder. Features: sub spindle, C-axis, Y-axis, 12 turret positions. Turning dia. 11.8", length 20.08", swing 23.6", spindle speed up to 6,000 RPM.
TURNING DIAMETER - 11.8"
TURNING LENGTH - 20.08"
SWING - 23.6"
BAR CAPACITY - MAIN - 2.6"
BAR CAPACITY - SUB - 1.3"
SPINDLE BORE - MAIN - 3"
SPINDLE BORE - SUB - 1.7"
MAX. SPINDLE SPEED - 4,500 RPM
MAX. SPINDLE SPEED - SUB - 6,000 RPM
RAPID TRAVEL - X, Y, Z - 1181, 394, 1417 IPM
TRAVELS - X, Y, Z - 8.3", 4.3", 22"
SPINDLE NOSE - A2-6
MAIN MOTOR - 20 HP

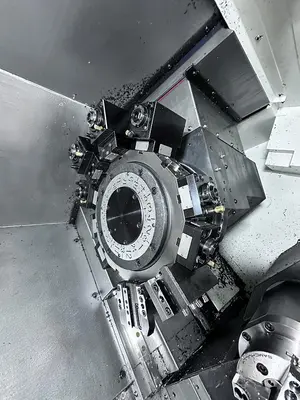

TURRET POSITIONS - 12

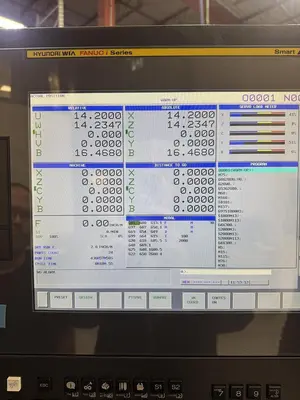

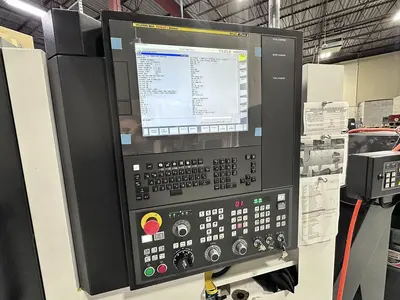

FANUC i SERIES, SMART PLUS CNC CONTROL
CHIP CONVEYOR

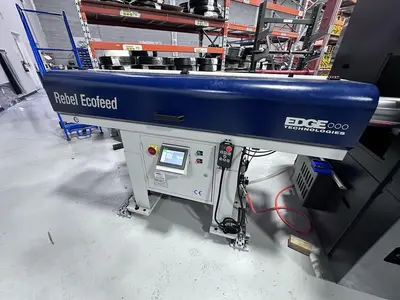

2022 EDGE TECHNOLOGIES - REBEL ECOFEED V65LE BARFEEDER ( BAR DIA. CAPACITY 0.196" - 2.63" )
(4) AXIAL & (4) RADIAL LIVE TOOL HOLDERS ( TWO ARE DOUBLE SIDED)
ASSORTMENT OF STANDARD TOOL HOLDERS
SUB SPINDLE
C-AXIS
Y-AXIS
8" 3-JAW CHUCK - MAIN
5" 3-JAW CHUCK - SUB
PARTS CATCHER (X2)
ASSORTED SPINDLE LINERS
