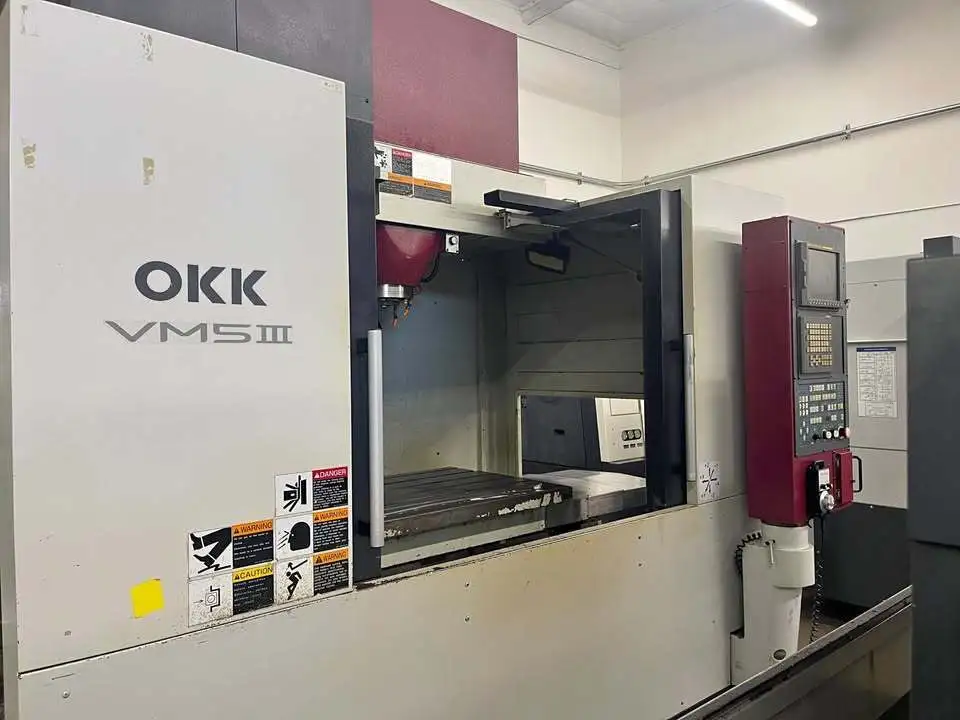

2006 OKK VM-5III
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center. Features Fanuc 180is-MB CNC, 30-station automatic tool changer, 10,000 RPM spindle, and 48" x 20" table. Box way construction, coolant tank, and RS-232 port. Weighs 12,500 lbs.
Spindle Nose to Table (Min.- Max.): 4.5″ – 24.5″

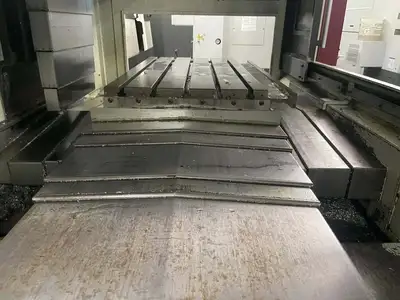

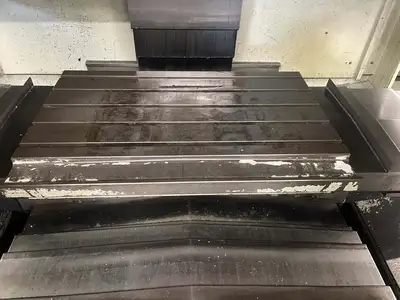

Table:
Length: 48″
Width: 20″
Max Weight on Table: 3000 lbs

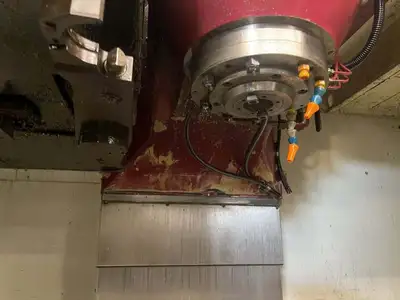

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 15 HP

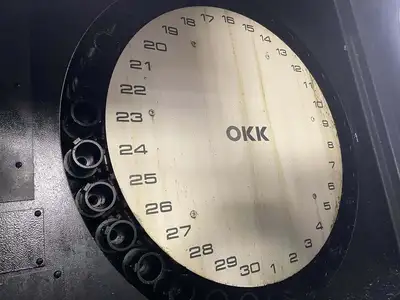

Automatic Tool Changer:
40 Taper
Capacity: 20 Station
Tool Weight: 15 lbs
Max Tool Length: 15″
Max Tool Dia.: 4.33″
Feed rates:
Rapid Traverse rates: 900 IPM
Cutting Feedrate: 400 IPM
General:
Air Required: 80 psi, 4 scfm
Power: 220v / 3-Phase
Overall Dimensions: 122″ x 100″ x 100″ High
Weight: 12,500 lbs
Fanuc 180is-MB Series CNC Control
Box Way Construction
30 Station Automatic tool changer

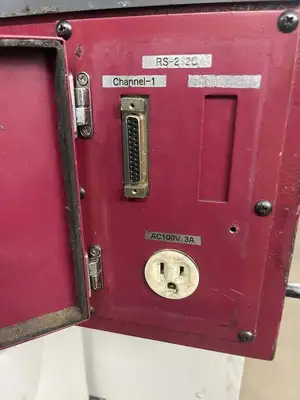

RS-232 Port

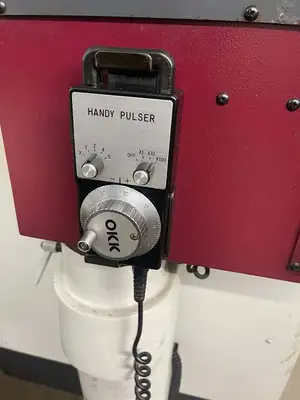

MPG Handwheel Control
Rigid Tapping
Telescopic way covers
Coolant Tank
