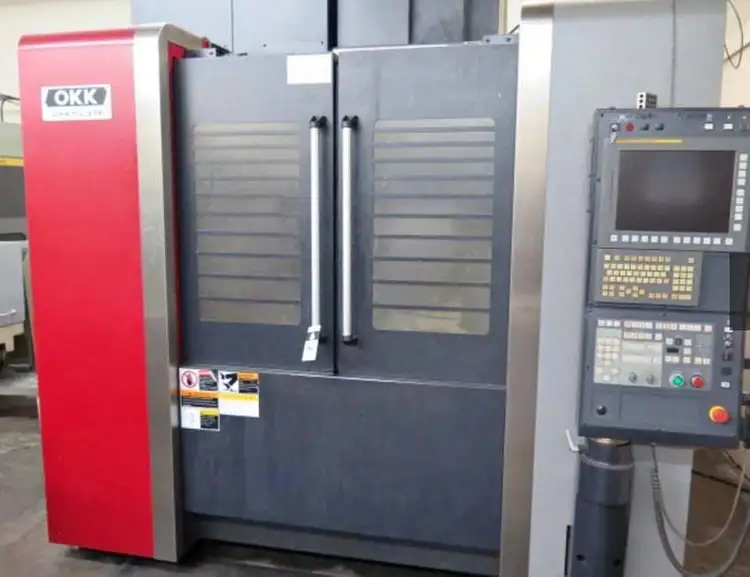

2014 OKK VM53R
Have one to sell?
ConditionUsed
1 available
Vertical Machining Center, used, offering 41.3" x 22.1" table area and 10,000 rpm spindle speed. With a robust FANUC F31i-B control, it supports a 30-tool capacity and rapid traverse rates of 1181 in/min.
SPECIFICATIONS:
Travel
X-Axis Travel: 41.3" (1050mm)
Y-Axis Travel: 20.8" (530mm)
Z-Axis Travel: 20.1" (510mm)
Table Top to Spindle Nose: 5.9" - 26.0" (150mm - 660mm)
Table

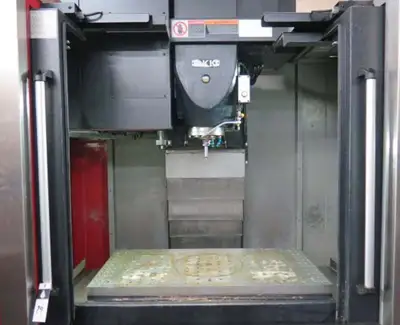

Table Work Surface Area: 41.3" x 22.1" ( 1050mm x 560mm)
Table Load Capacity: 1764 lbs (800 kg)
Feed Rate
Rapid Traverse Rate X/Y: 1181 in/min (30 m/min)
Rapid Traverse Rate Z: 787 in/min (20 m/min)
Cutting Feed (X/Y/Z): 787 in/min (20 m/min)
Spindle
Spindle Power: 25/20 HP
Spindle Speed: 10,000 rpm
Spindle Taper: CAT40
Tools

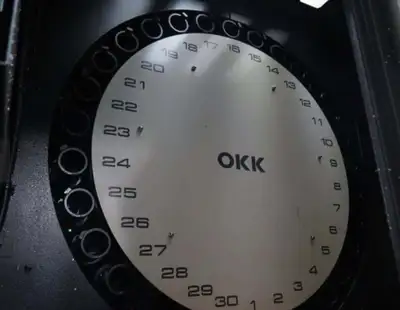

Standard Number of Tools: 30
Maximum Tool Weight: 44 lbs (20 kg)
Maximum Tool Length: 13.8" (350 mm)
Maximum Tool Diameter: ø 4.06" (103 mm) / ø 7.87" (200 mm) without tool in adjacent pots
Tool Changing Time- Tool to Tool: 2.0 sec (Speed is changeable for heavy-weight tools)
General
Machine Weight: 17,600 lbs (8,000 kg)

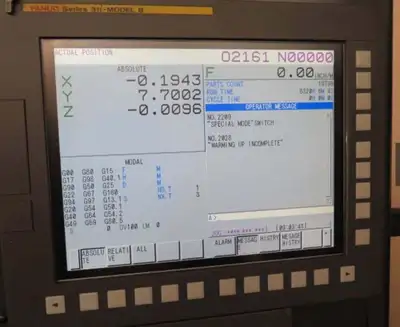

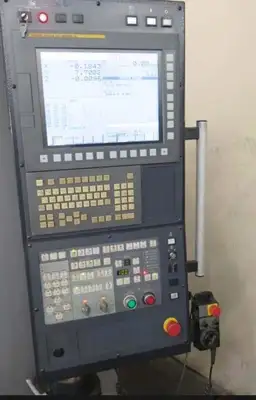

Machine Control: FANUC F31i-B
