2013 HURCO VMX42I with 4th axis
Have one to sell?
ConditionUsed
1 available

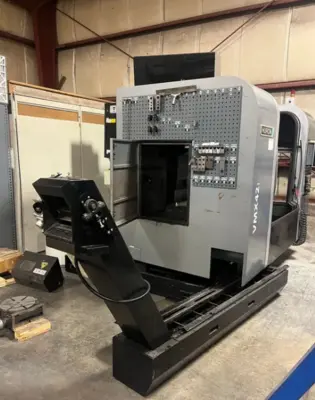

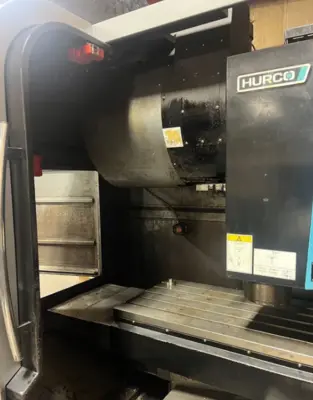

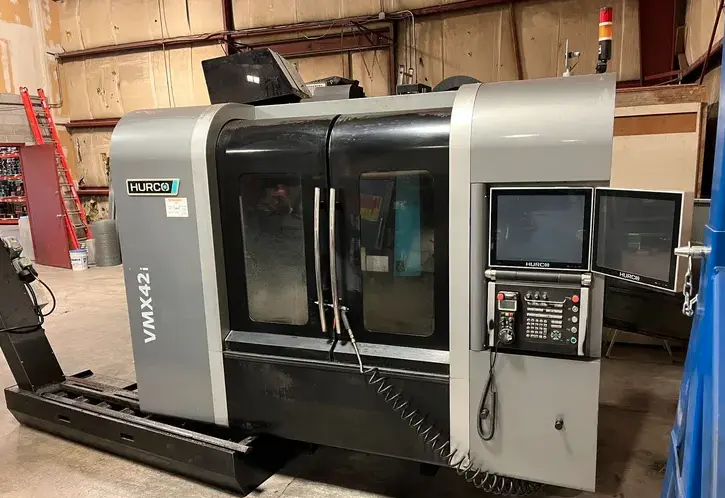

2013 HURCO VMX42I used vertical machining center with 4th axis. Includes Hurco Winmax Max 5 CNC, chip conveyor, 4th axis readiness, tool/part probe, spindle chiller, and coolant ring. 42" X, 24" Y/Z travel, 12,000 RPM spindle.
General Specifications:

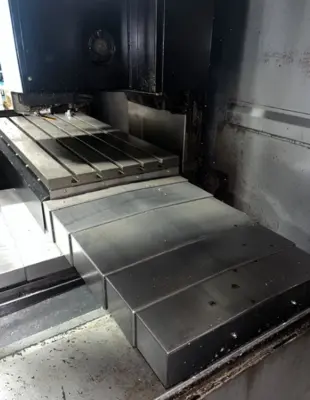

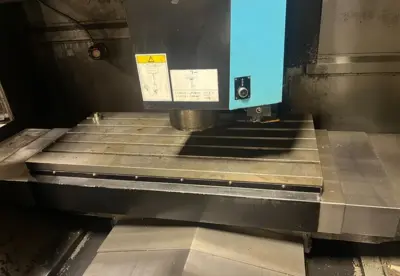

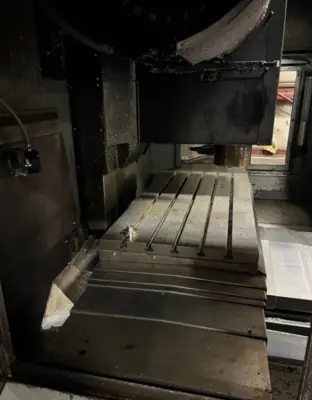

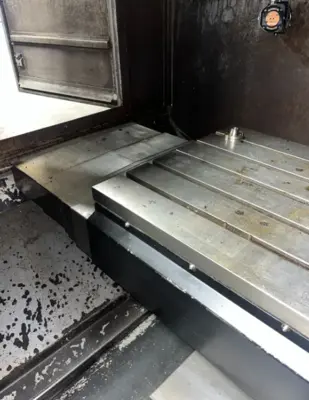

Table Size: 50" x 24"
Weight on Table: 3,850 lbs
Spindle Nose to Table: 6"
X-Axis Travel: 42"
Y-Axis Travel: 24"
Z-Axis Travel: 24"
Spindle Speed: 12,000 RPM
Spindle Taper: CT 40/BP
Spindle Power: 20 HP
Spindle Torque: 72.9 ft.lbs

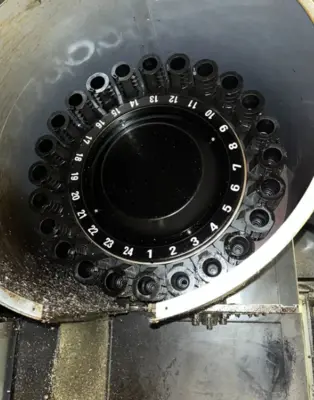

Tool Positions: 24
Tool Diameter: 3.1"
Tool Length: 11.8"
Tool Weight: 15.4 lbs
Feedrates (X,Y/Z): 1,469 IPM / 1,260 IPM
Programmable Feedrate: 1,260 IPM
Machine Dimensions: 152" x 146" x 114"
Machine Weight: 14,904 lbs

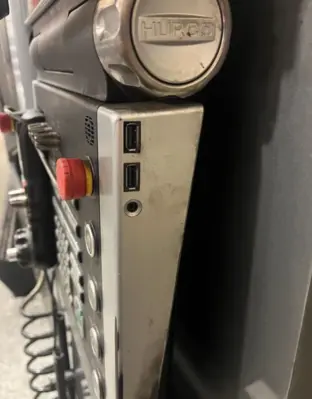

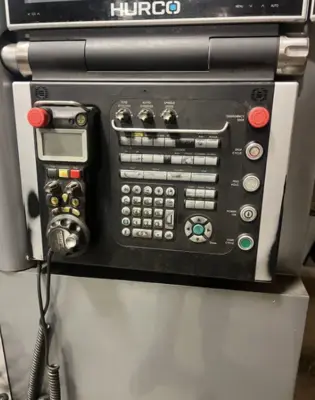

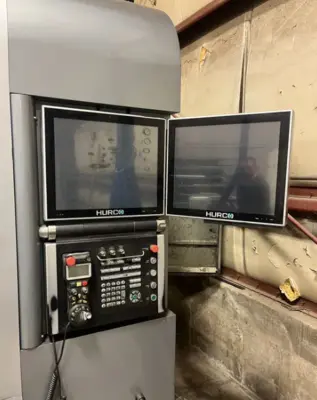

Hurco Winmax Max 5 CNC Control
Chip Conveyor
4th Axis Ready

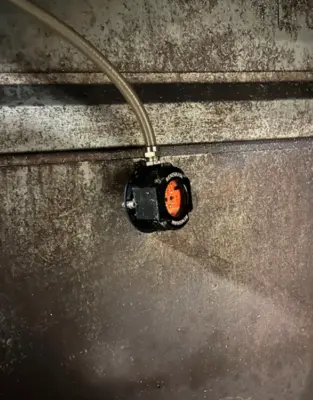

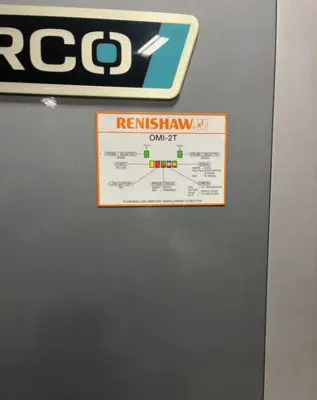

Tool/Part Probe Interface

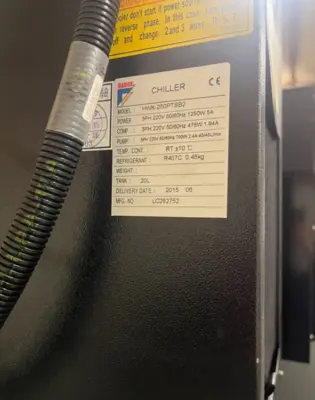

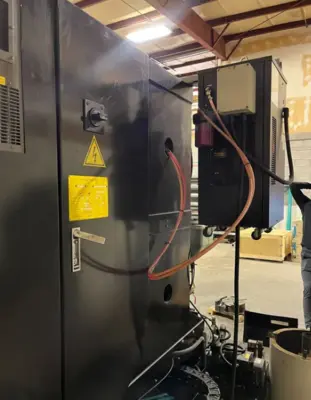

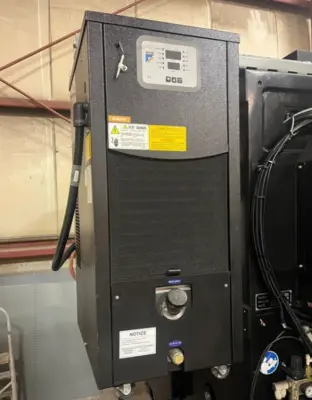

Harbor Spindle Chiller

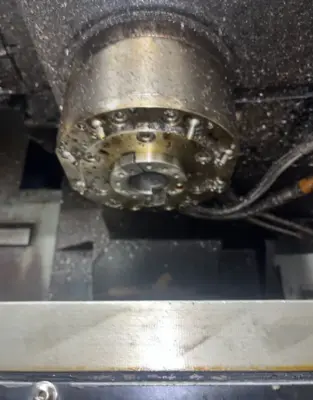

Spindle Coolant Ring
MI-8 Interface

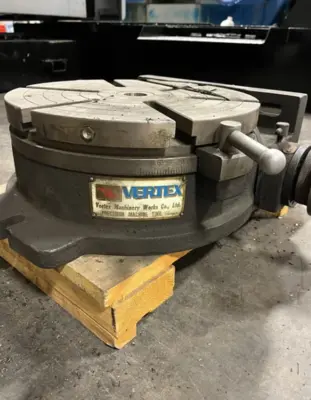

Vertex Table Indexer

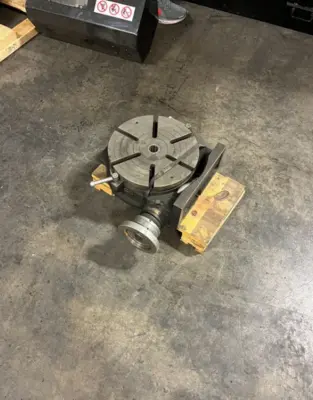

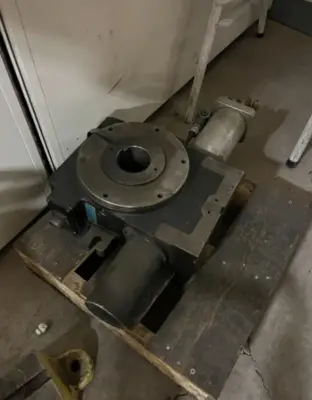

Rotary Table
