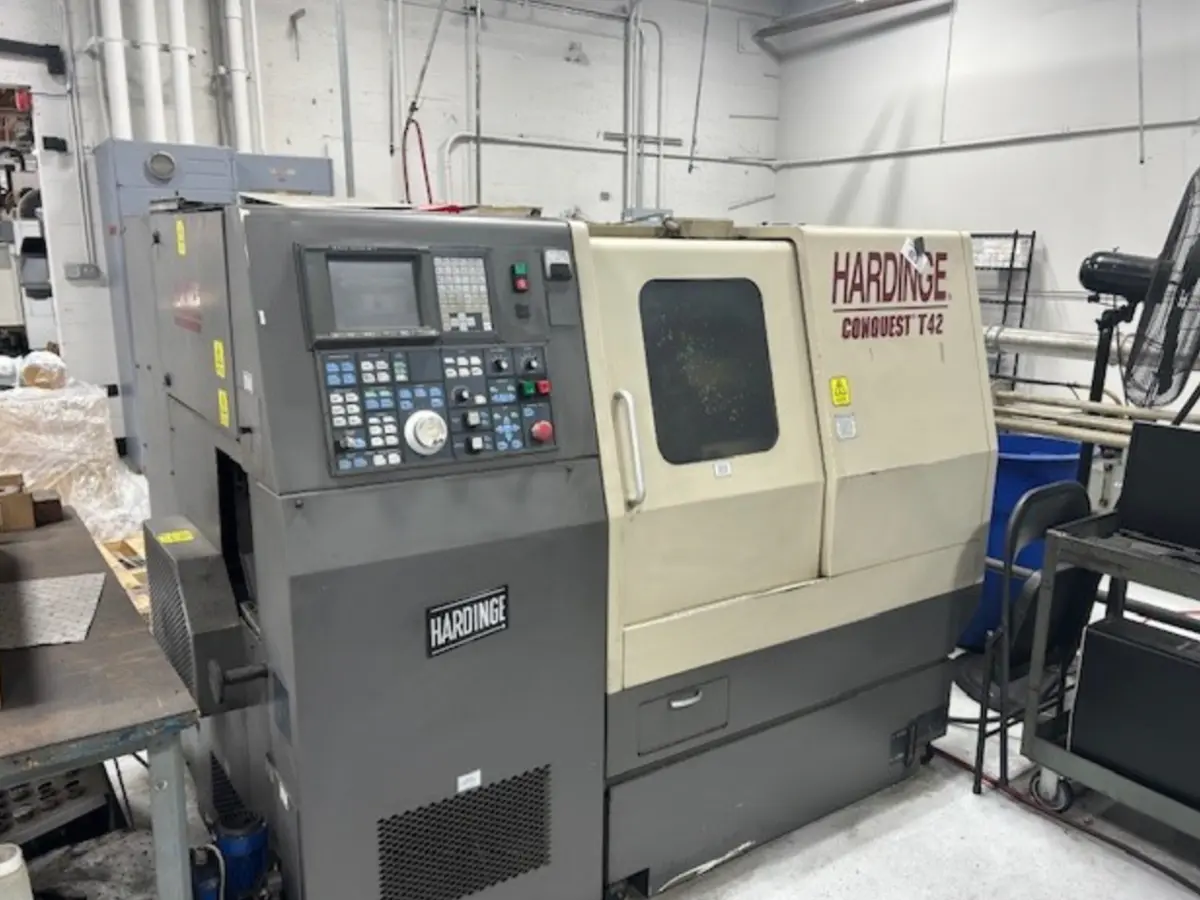

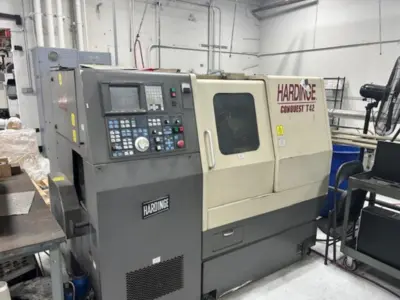

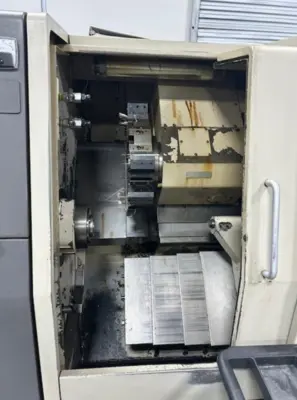

2000 HARDINGE CONQUEST T42

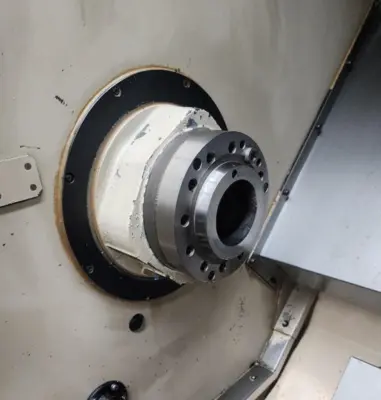

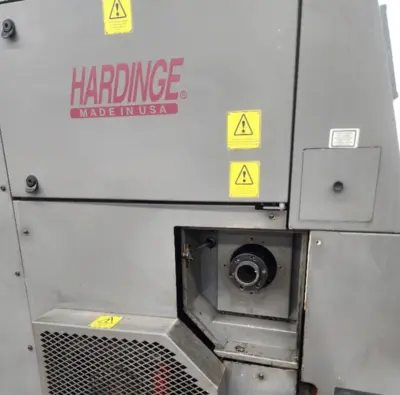

SPINDLE
SPINDLE CONFIGURATION (ANSI): A2-5", 16C
ROUND COLLET (THROUGH CAPACITY): 1.625"

AC DIGITAL DRIVE SYSTEM
STANDARD: 10 HP
TORQUE RATING: 42 FT-LB
SPEED RANGE (1-RPM STEPS): 50 TO 5000

CARRIAGE AND CROSS SLIDE
SWING DIAMETER OVER UPPER WAY COVER: 21.2"
PRELOADED BALL SCREW DIAMETER: 1.259"
X-AXIS TRAVEL (MAX.): 5.5"
X-AXIS RAPID TRAVERSE RATE: 472 IPM
Z-AXIS RAPID TRAVERSE RATE: 630 IPM
Z-AXIS (DRILLING) THRUST (MAX.): 1,500 LBS

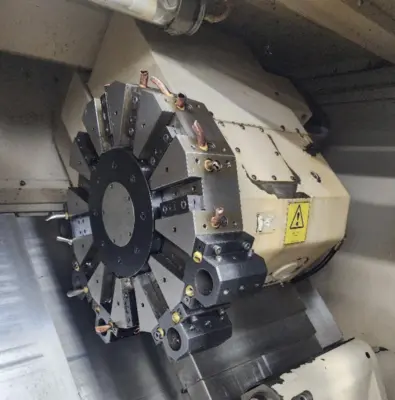

BI-DIRECTIONAL VERTICAL TURRET
NO. OF STATIONS: 12
SQUARE SHANK TOOL SIZE (MAX.): 3/4"
ROUND SHANK TOOL SIZE (MAX.): 1-1/4"
DISTANCE FROM SPINDLE FACE TO TURRET (MAX.): 14"
TURNING DISTANCE (MAX.): 13.8"

SPECIFICATIONS(CONT):

TAILSTOCK
CENTER TAPER: MT NO. 3
TRAVEL (MAXIMUM): 11.5"
RAPID TRAVERSE AND RETURN RATE: 300 IPM
THRUST (MAXIMUM): 700 LBS

MISCELLANEOUS
COMPRESSED AIR REQUIREMENT: 70 TO 90 PSI
5 TO 6 SCFM
HYDRAULIC TANK CAPACITY: 10 U.S. GAL
COOLANT TANK CAPACITY: 26 U.S. GAL

SHIPPING WEIGHT, BASE MACHINE (APPROX.): 9,800 LBS

MACHINE DIMENSIONS
LENGTH: 93"
DEPTH: 70"
HEIGHT: 67"

ELECTRICS: 230V, 3 PH, 60 CYC
