2014 HAAS VF-4
Have one to sell?
ConditionUsed
1 available

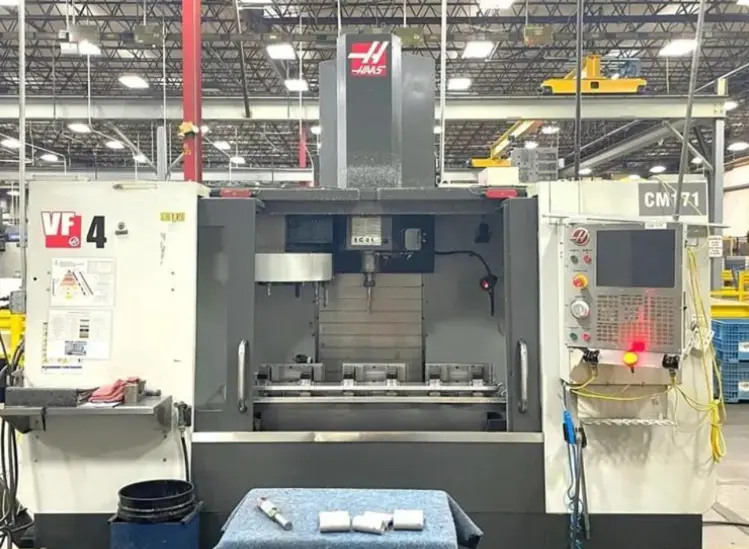

2014 HAAS VF-4, excellent for vertical machining. Features 50" x 20" x 25" travel, 30 hp, 8,100 RPM spindle, CT/BT 40 taper, and 20 station ATC. Equipped with a chip conveyor, programmable coolant, and intuitive programming.
Table size 52" x 18"
Maximum Weight on Table 3,500 lbs.
X-Axis Travel 50"
Y-Axis Travel 20"
Z-Axis Travel 25"
Spindle Taper CAT #40
Spindle Speeds 0 - 8,100 RPM
Spindle Motor 30 Minutes/Continuous 30 HP / 20 HP
Spindle Nose to Table Top 4" - 29"
Number of Tool Positions 20 Station ATC
Rapid Traverse Rates 1000 IPM
Cutting Feedrates 650 IPM
Machine Dimensions 122" x 95" x 100"
Machine Weight 13,300 lbs.
Haas Intuitive Probing Ready with Receiver ONLY - no probes
Coolant Through the Spindle - 300 PSI
Programmable Coolant Nozzle
Auger Style Chip Conveyor
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Haas Intuitive Programming
Rigid Tapping
Internal High Voltage Isolated Transformer
USB Port Interface
RS-232C Port Interface
15" LCD Color Monitor
Wired 360-480V Electrics
Vices are not included
**Machine has ONLY cut aluminum**
