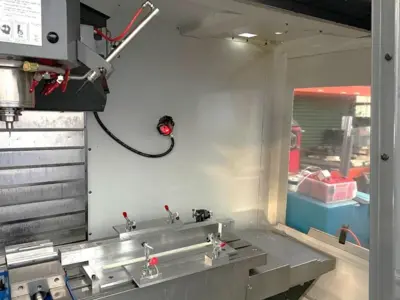

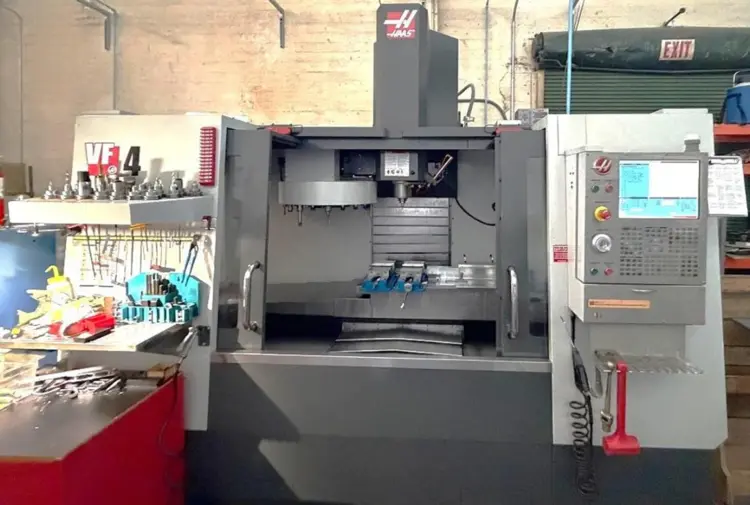

2014 HAAS VF-4
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center with a 52" x 18" table, CAT #40 spindle taper, and 8,100 RPM speeds. Features include WIPS Renishaw probing, 4th axis drive, and quick code programming. Machine weight: 13,300 lbs.
Table size 52" x 18"
Maximum Weight on Table 3,500 lbs.
X-Axis Travel 50"
Y-Axis Travel 20"
Z-Axis Travel 25"
Spindle Taper CAT #40
Spindle Speeds 0 - 8,100 RPM
Spindle Motor 30 Minutes/Continuous 30 HP / 20 HP
Spindle Nose to Table Top 4" - 29"

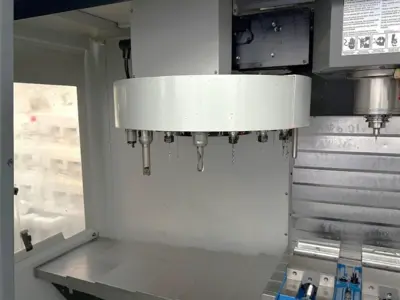

Number of Tool Positions 20 Station Umbrella Style Tool Changer
Rapid Traverse Rates 1000 IPM
Cutting Feedrates 650 IPM
Machine Dimensions 122" x 95" x 100"
Machine Weight 13,300 lbs.
Haas WIPS Renishaw Part & Tool Probing System
4th Axis Drive
User Definable Macros
Coordinate Rotation & Scaling
Spindle Orientation
Quick Code Programming
Auger Style Chip Conveyor
Rigid Tapping
Auto Air Gun
RS-232C Port Interface
Coolant System with Tank & Pump
Wired 195-260V Electrics
Vices are not included
