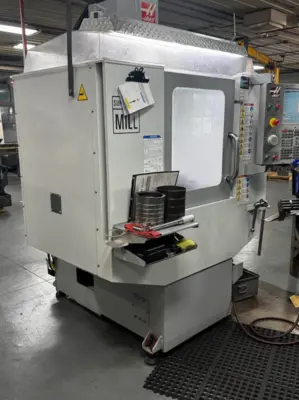

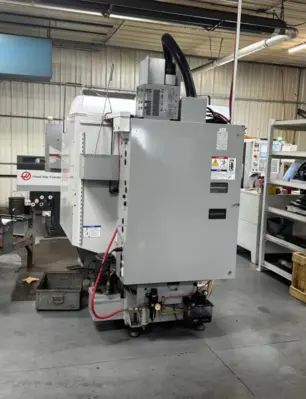

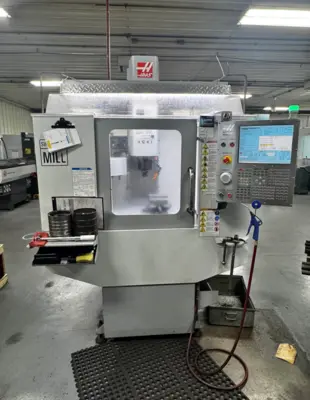

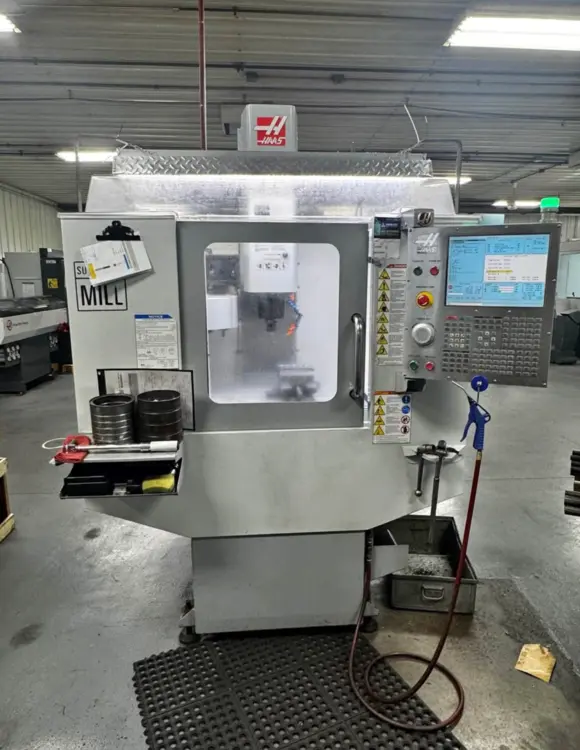

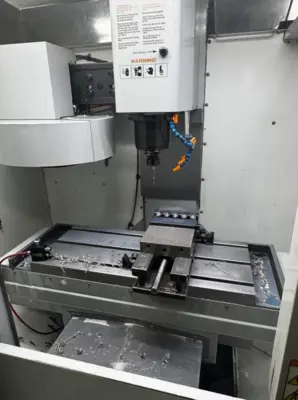

2008 HAAS SUPER MINI MILL
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center with a compact design. Features 16" x 12" x 10" travel, 10,000 RPM spindle speed, 15 HP motor, and a 10-tool ATC.
X Axis Travel: 16"
Y Axis Travel: 12"
Z Axis Travel: 10"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Table Size: 28.75" x 12"
Max Table Load: 500 LBS
Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 10 ATC
Max Thrust X 2000 lb
Max Thrust Y 2000 lb
Max Thrust Z 2000 lb
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 sec
Chip-to-Chip (avg) 3.8 sec
Coolant Capacity 40 gal
Dimensions: 68" x 104" x 98"
Weight: 7,200 LBS
