2023 DN SOLUTIONS PUMA 3100LY
Have one to sell?
ConditionNew
1 available
New
2023 Doosan Puma 3100LY CNC Lathe by DN Solutions offers precision with a 33.5" swing, 16.53" max cutting diameter, and 50.6" length. Equipped with FANUC 0i-PLUS, live milling, 12" hydraulic chuck.
SWING OVER BED - 33.5"
MAX CUTTING DIAMETER - 16.53"
MAX CUTTING LENGTH - 50.6"
X-AXIS TRAVEL - 11.5"
Y-AXIS - Yes
Y-AXIS TRAVEL - 5.12"(±2.6")
Z-AXIS TRAVEL - 53.1"
C-AXIS INDEXING FULL C-AXIS
CHUCK SIZE - 12"
BAR CAPACITY - 4"
SPINDLE BORE - 4.5"
SPINDLE NOSE - A2-11
SPINDLE MOTOR - 35 hp
SPINDLE SPEED - 2,800 RPM
RAPID TRAVERSE RATE - X-AXIS - 1,181 in/min.
RAPID TRAVERSE RATE - Y-AXIS - 393.7 in/min.
RAPID TRAVERSE RATE - Z-AXIS - 1,181 in/min.
TURRET CAPACITY - 12
TURRET TYPE - BMT65
LIVE MILLING - Yes
LIVE MILLING SPEED - 5,000 RPM
LIVE MILLING MOTOR - 10 hp
FANUC 0i-PLUS CONTROL W/iHMi TOUCH SCREEN
GUIDE I CONVERSATIONAL PROGRAMMING
Y-AXIS
LIVE MILLING
LONG BED (50")
12", 3-JAW HYDRUALIC CHUCK
TOOL PRESETTER
PROGRAMMABLE TAILSTOCK
RENISHAW RLP40 PROBE (RADIO LATHE PROBE) & RMI RECEIVER
LNS AUTOBLOCK SELF-CENTERING HYDRAULIC STEADY REST
PROGRAMMABLE POSITIONING BRACKET FOR HYRDAULIC STEADY REST

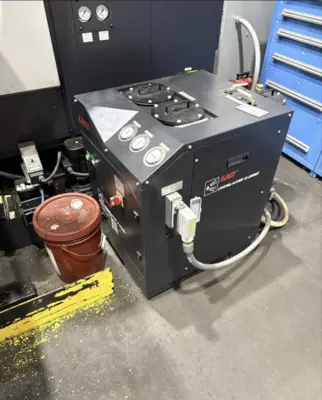

1,000 PSI CHIPBLASTER B-SERIES
LNS FOX MIST COLLECTOR (WS2-1020)
TURBO SIDE DISCHARGE CHIP CONVEYOR
AUTO DOOR (DOUBLE DOOR PNUEMATIC)
CAST IRON SLANT BED
BOX WAYS
