2013 KITAMURA MYCENTER-4XT w/ 4 AXES SIMULTANEOUS CONTROL (4+1)
Have one to sell?
ConditionUsed
1 available
Available Used Vertical Machining Center with 4 axes simultaneous control, used vertical machining center. Features 15,000 RPM spindle, CAT 40 BIG+ taper, 31.5" x-axis travel, and Fanuc 0i-MD CNC. Includes high-pressure coolant and chip conveyor.
TABLE SIZE ............................ 15.75" - 400mm
MAXIMUM WORK SIZE ..................... 23.62" x 14.3"
MAIN SPINDLE SPEEDS ................... 15,000 RPM
MAIN SPINDLE TAPER .................... CAT 40 BIG+
MAIN SPINDLE HORSE POWER .............. 35 HP
X - AXIS TRAVEL ....................... 31.5"
Y - AXIS TRAVEL ....................... 24"
Z - AXIS TRAVEL ....................... 20"
A - AXIS TRAVEL ....................... -42 +110 DEGREES
C - AXIS TRAVEL ....................... 360 DEGREES
RAPID TRAVERSE: X, Y, Z ............... 1417 IPM
AUTOMATIC TOOL CHANGER ................ 30 ATC
APPROXIMATE FLOOR SPACE ............... 88"W x 119"D x 119"H
APPROXIMATE MACHINE WEIGHT ............ 17,250 LBS.

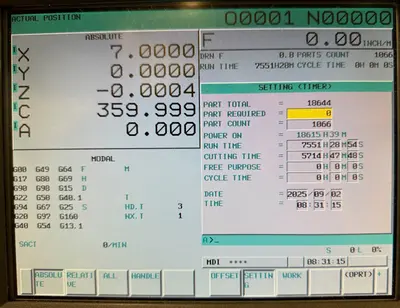

FANUC MODEL: 0i-MD CNC CONTROL

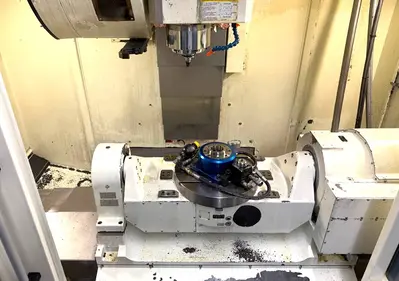

BUILT-IN 4TH/5TH AXES TRUNNION TABLE
4 AXES SIMULTANEOUS CONTROL (4+1)_
HIGH-PRESSURE COOLANT THRU SPINDLE (220 PSI)
CHIP CONVEYOR
SPINDLE CHILLER
BOX WAYS (4 BOX WAYS ON Y-AXIS)
