2005 HAAS SL-30T
Have one to sell?
ConditionUsed
1 available

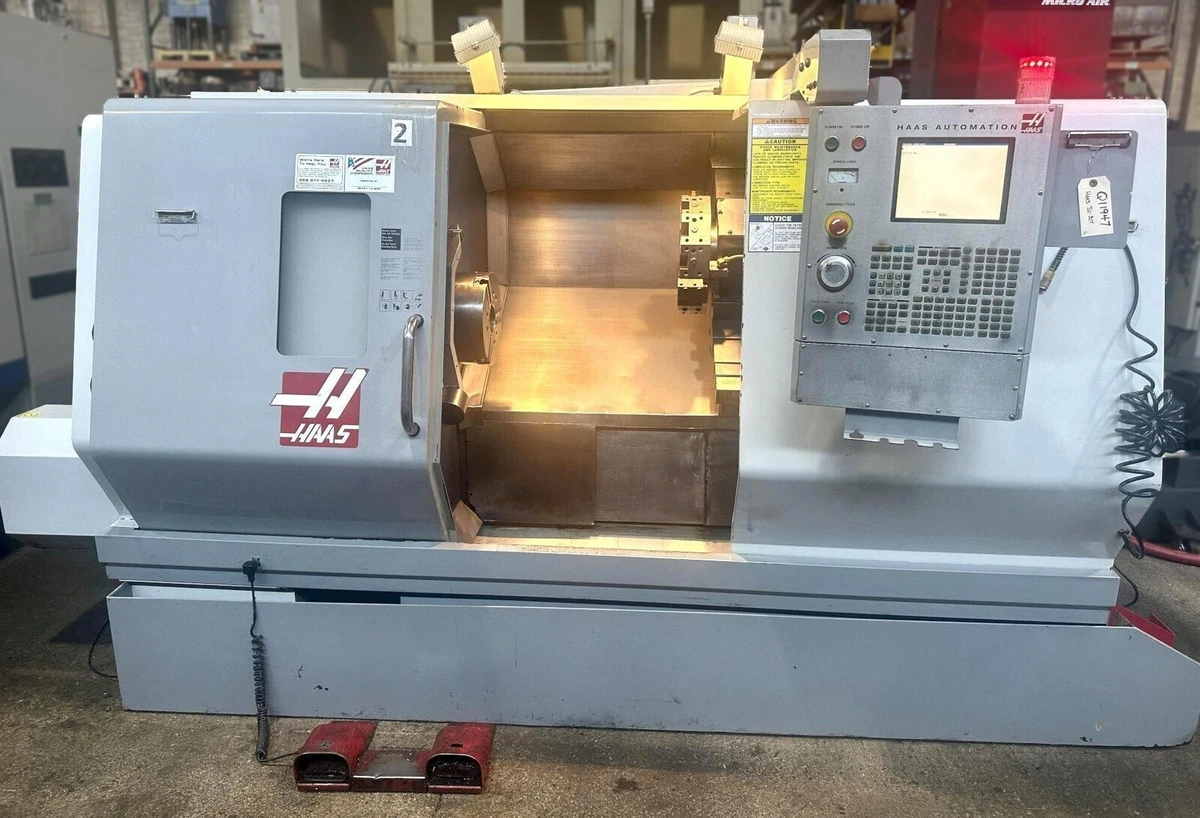

Used CNC Lathe. Features 14" X-axis and 34" Z-axis travel, 3" bar capacity, 30 HP spindle up to 3,400 RPM, and Haas CNC Control. Includes 12” Kitagawa chuck, 2-speed gearbox, and coolant system. Dimensions: 126" x 83". 16,000 lbs.
Max Swing Over Bed 30"
Max Swing Over Carriage 14.5"

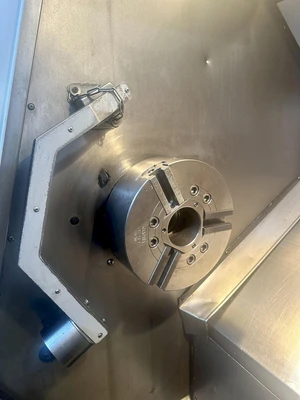

Chuck Size 12"
Max Distance Between Centers 39"
X-Axis (Cross Travel) 14"
Z-Axis (Longitudinal Travel) 34"
X-Axis Rapid Traverse Rate 710 IPM
Z-Axis Rapid Traverse Rate 710 IPM
# Tool Turrets 1

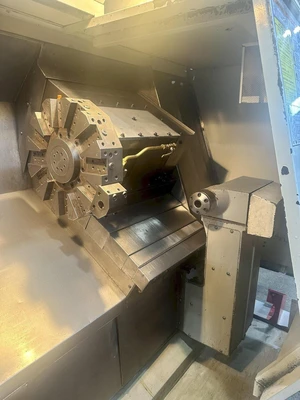

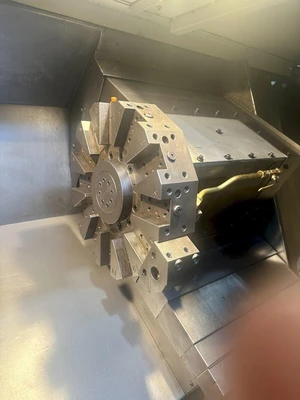

Tool Turret Positions 12 Total
Spindle Nose A2-6
Spindle Bore 3.5"
Bar Capacity 3"
Max Spindle Speed 3,400 RPM
Spindle Horsepower 30 HP
Electrics 220/3/60
Approximate Machine Dimensions 126" x 83"
Approximate Machine Height 74"
Approximate Machine Weight 16,000 LBS

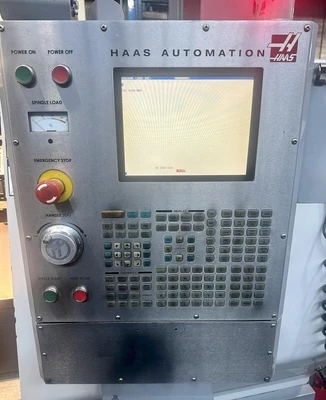

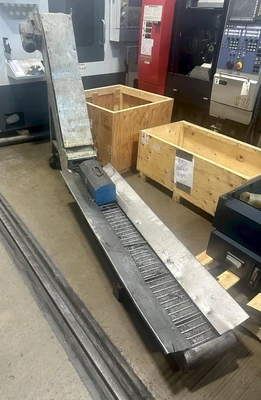

Haas CNC Control, 12" 3-Jaw Kitagawa Chuck, VOP-A, 2 Speed Gear Box, Tool Presetter, 3.5" Spindle Bore, 12 Station Tool Turret (1 Boring Bar Holder Included), Foot Pedal for Chuck Clamp/Unclamp, Tailstock, Coolant System, Chip Conveyor.
