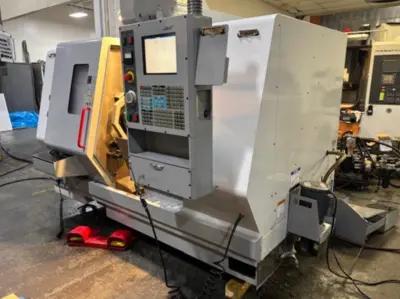

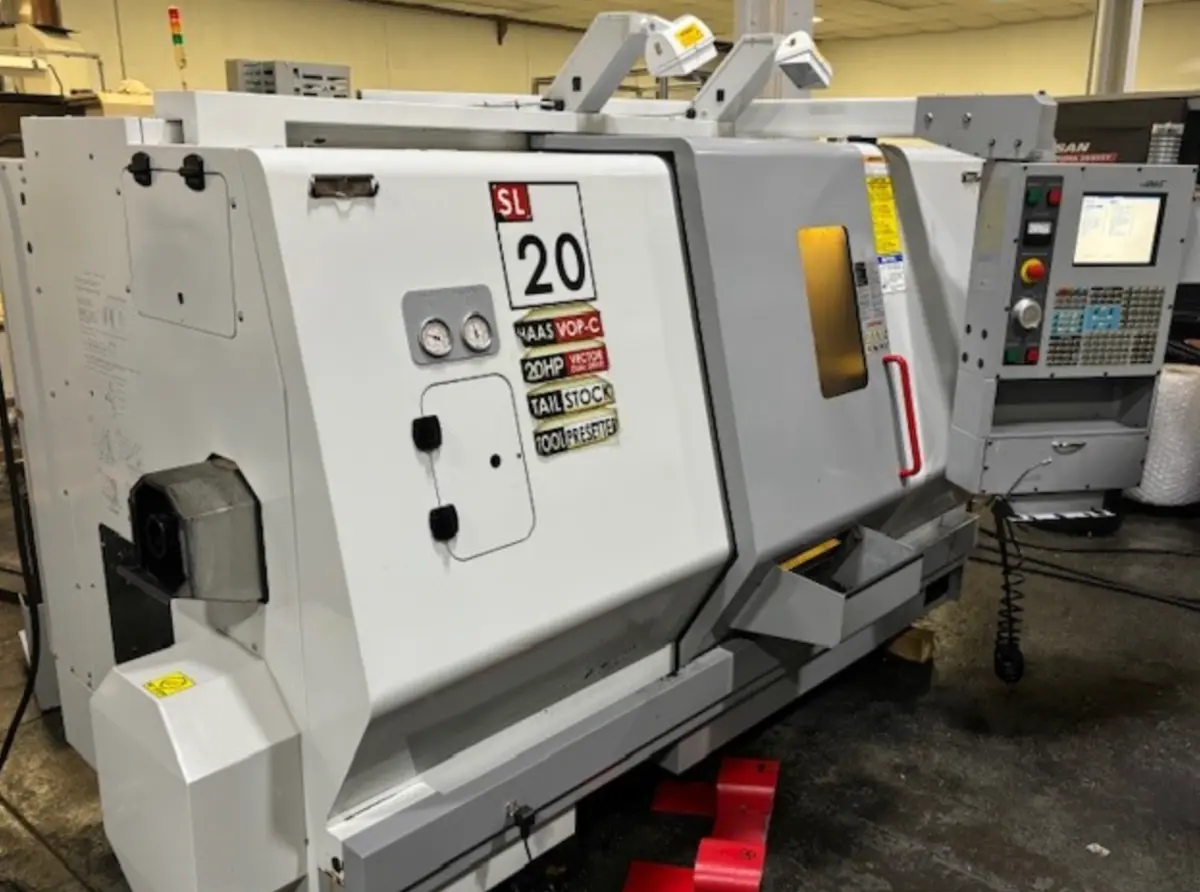

2004 HAAS SL-20T
Have one to sell?
ConditionUsed
1 available
Used CNC lathe, used condition. Features 2-axis, 8" chuck, and 20 hp. Max RPM 4,000. Includes toolsetter, parts catcher, and tailstock. Swing 23", machining length 24", and more.
MAXIMUM SWING OVER FRONT ....... 20"
SWING OVER CROSS SLIDE ............... 9.5"
MAXIMUM TURNING DIAMETER ............. 10"
MAXIMUM TURNING LENGTH ............... 20"
X AXIS TRAVEL ........................ 8.45"
Z AXIS TRAVEL ........................ 20"
RAPID TRAVERSE RATE X AXIS ........... 710 IPM
RAPID TRAVERSE RATE Z AXIS ........... 710 IPM
SPINDLE BORE ......................... 3.0"
MAXIMUM BAR CAPACITY ................. 2.0"
SPINDLE SPEEDS ....................... 4,000 RPM
SPINDLE MOTOR ........................ 20 HP

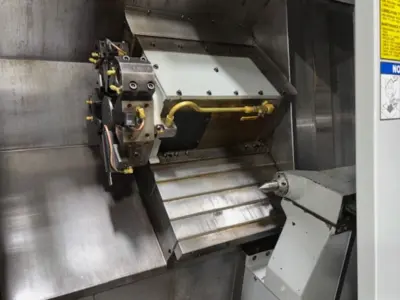

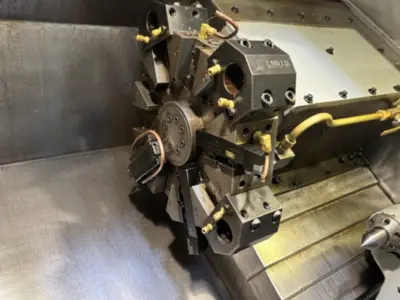

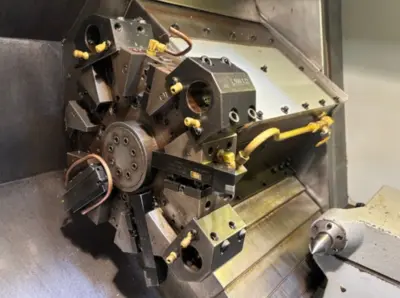

TURRET CAPACITY ...................... 10 STATION TURRET
TAILSTOCK BODY STROKE ................ 17.9"
TAILSTOCK QUILL STROKE ............... 4.7"
TAILSTOCK QUILL DIAMETER ............. 3.9"
TAILSTOCK QUILL TAPER ................ MT #3
APPROXIMATE DIMENSIONS ............... 124" x 70" x 74"
MACHINE WEIGHT (APPROXIMATE) ......... 9,000 LBS

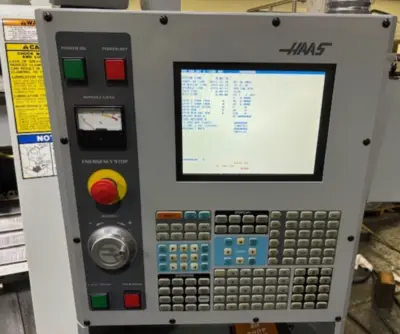

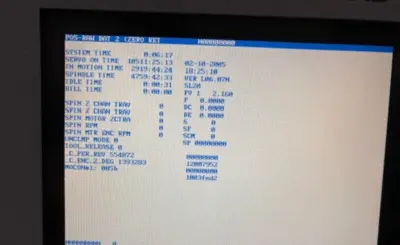

- HAAS CNC CONTROL

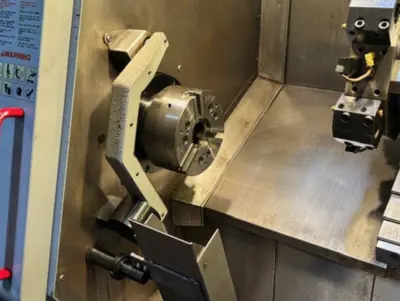

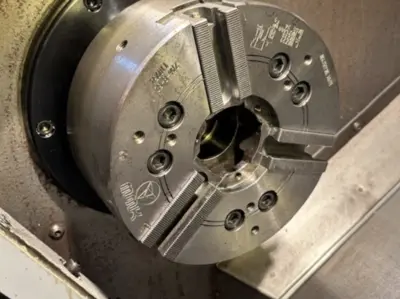

- 8" 3-JAW HYD. CHUCK
- TOOLSETTER
- PARTS CATCHER

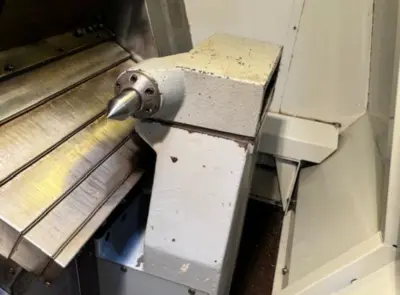

- TAILSTOCK
- BOLT-ON TURRET

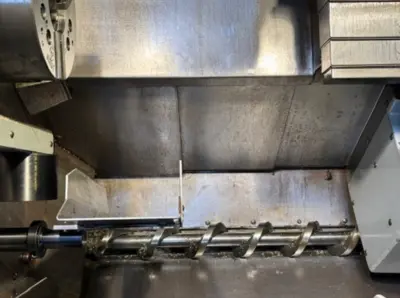

- CHIP AUGER
- HIGH INTENSITY LIGHTING
- BARFEED INTERFACE (FOR HAAS BRUSHLESS BARFEED)
- ALL AVAILABLE TOOLHOLDERS
