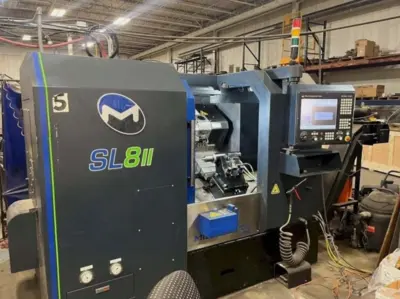

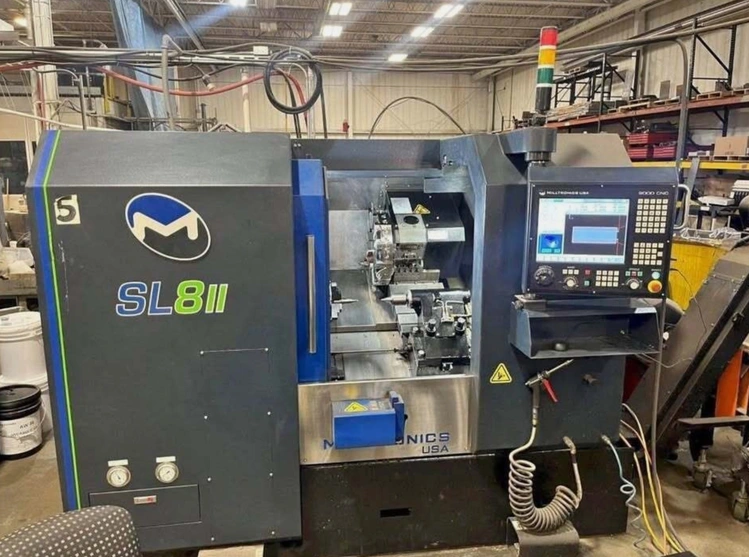

2020 MILLTRONICS SL8-II

X-Axis travel - 8"
Z-Axis travel - 21"
Swing over bed - 21.7"
Swing over cross - 11.8"
Max turning diameter - 14"
Max turning length - 21"
Spindle nose - A2-6
Draw tube inner diameter - 2.54"
Spindle bore diameter - 3.07"
Chuck size - 8"
Spindle range - 0 to 4000 rpm
AC spindle motor - 22/15 HP
Turret tool capacity - 12 Tool
Tooling size - 1" x 1"
Boring bar capacity - 1.5"
Tool selection - bi-directional
Turret index time - 0.6 sec
Tailstock quill travel - 3.46"
Tailstock quill diameter - 2.28"
Max quill thrust - 550 lbs.
Tailstock quill taper - MT4
X, Z axis rapid traverse rate - 1,181 ipm
Max cutting feed rate - 400 ipm
Machine height - 83.7"
Floor space required with conveyor (W x D) - 169.1" x 104.4"
Machine weight, approx - 8,885 Lbs
Power required - 17 kva / 43 amps
Voltage - 208-2340 volt, 3 ph
