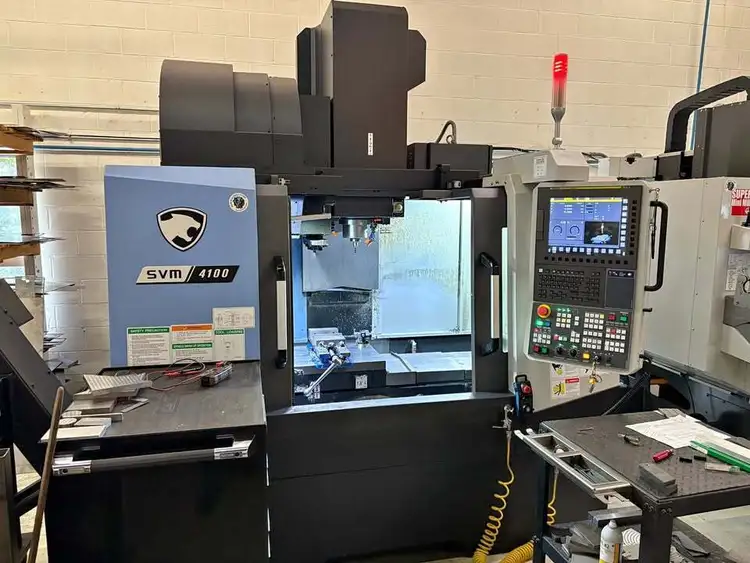

2022 DOOSAN SVM4100

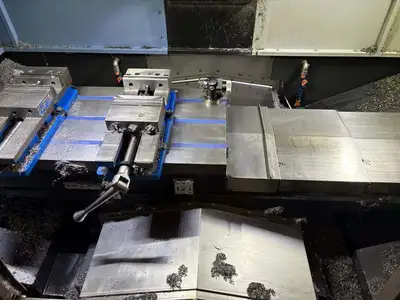

Table loading area 920 mm x 410 mm (36.22″ x 16.14″)
Allowable table load 600 kg (1,323 lbs)
Table T-slot spacing x width (3) – 125mm x 18H8 (3) – 4.92″ x .71″
Spindle nose to table top 100 mm to 600 mm (3.9″ to 23.62″)

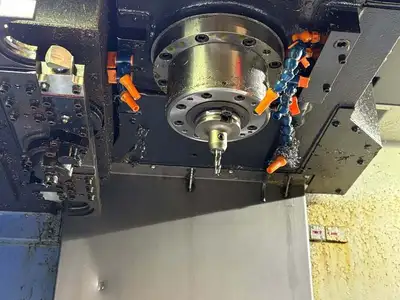

Big Plus Spindle system CAT 40
Big Plus Spindle speed 12,000 rpm
AC Spindle Motor (S3 25%) 5.5 / 18.5 kW (7.375 / 25 hp)
Spindle Torque (S3 15%) 95.5 nm (70.5 ft-lbs)
Spindle Acceleration Deceleration time 0 – 12k (1.33 sec) 12k – 0 (1.25 sec)
AUTOMATIC TOOL CHANGER:
Number of Tools-30
Tool Shank: CAT 40
Pull Stud (Supply Company #)-711-23
Max. Tool Dia. Adjacent pots are empty (30)-76 mm 125 mm (2.99″ 4.9″)
Max. Tool Length-300 mm (11.8″)
Max. Tool Weight -6 kg (13.23 lbs)
