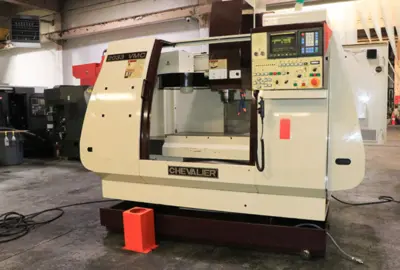

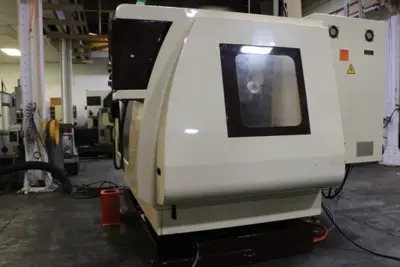

2003 CHEVALIER FALCON-2033
Have one to sell?
ConditionUsed
1 available

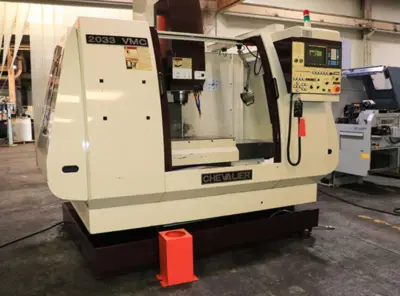

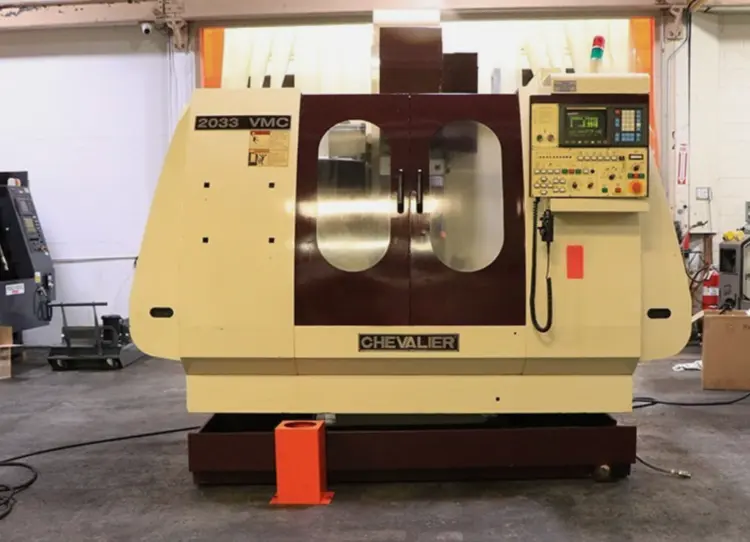

Used Vertical Machining Center for sale. Features include a 15 HP spindle motor, 20-tool changer, and FANUC 0-MC CNC control. With x/y/z travel of 33.5"/19.7"/19.7" and a max speed of 8,000 RPM. Equipped with a coolant system and chip conveyor.
X-AXIS TRAVEL............... 33.5"
Y-AXIS TRAVEL............... 19.7"
Z-AXIS TRAVEL............... 19.7"
TABLE SIZE.................. 39.4" X 17.7"
MAXIMUM TABLE LOAD.......... 1100 LBS / 500 kg
SPINDLE NOSE TO TABLE TOP... 5.9" - 25.6"
SPINDLE MOTOR............... 15 HP
MAX SPINDLE SPEED........... 8,000 RPM
SPINDLE TAPER............... 40 CAT
AUTOMATIC TOOL CHANGER...... 20 TOOLS
RAPID TRAVERSE RATES X-Y/Z.. 590/472 IPM
APPROXIMATE MACHINE WEIGHT.. 10,560 LBS
APPROXIMATE FLOOR SPACE .... 107.9" X 98.7" X 108.5"

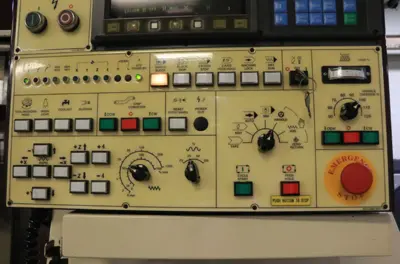

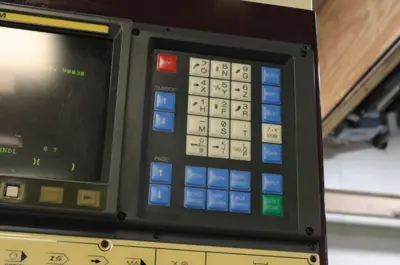

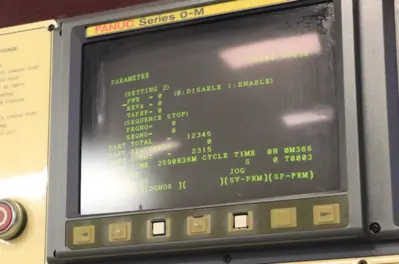

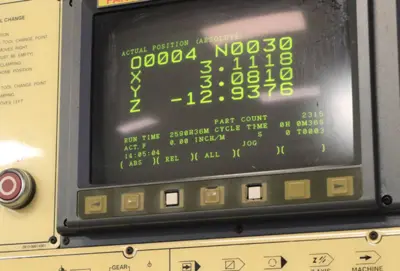

- FANUC MODEL: 0-MC CNC CONTROL

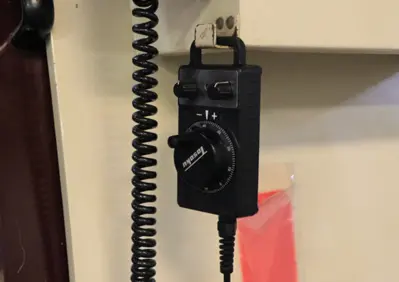

- MANUAL PULSE GENERATOR
- FANUC MOTORS & DRIVES ALL AXES
- RIGID TAPPING

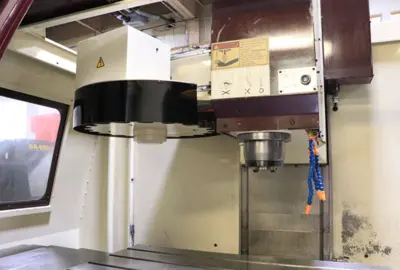

- 20 STATION AUTOMATIC TOOL CHANGER
- COOLANT SYSTEM
- BOX WAYS
- CHIP CONVEYOR

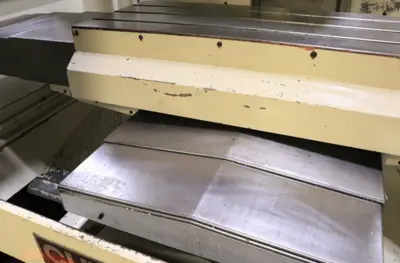

- STEEL TELESCOPIC WAY COVERS
- 15 HORSE POWER FANUC AC SPINDLE MOTOR
