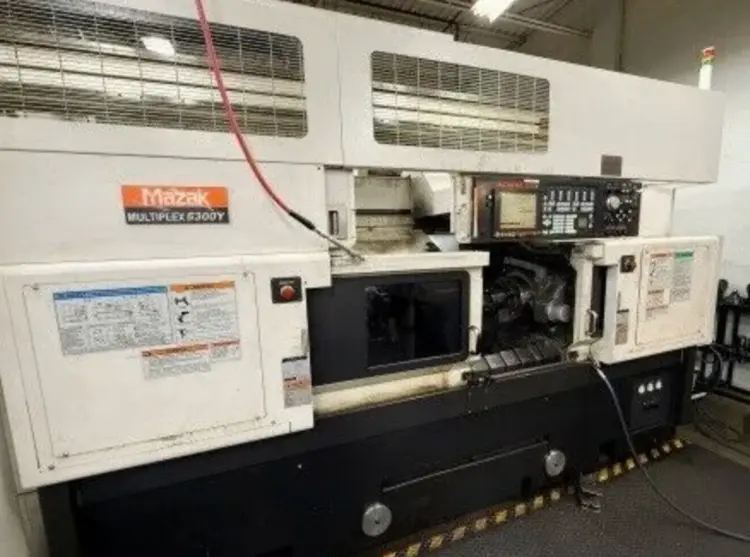

2007 MAZAK MULTIPLEX 6300Y w/ Gantry
Have one to sell?
ConditionUsed
1 available
5-axis CNC lathe with gantry, featuring 16.93" swing, 25.59" machining length, and 35 hp. Includes Mazatrol Fusion 640T, auto transfer, high-pressure coolant. Equipped with C-axis, chip conveyor, and GL300F gantry robot.
Swing 16.93"
Max Cutting Diameter 16.93"
Machining Length 25.59"
Spindle Speed 4,000 RPM
Spindle Bore 4.4"
Rotary Speed 4,000 RPM
Chuck 12" (2nd Spindle), 12" (Main Spindle)

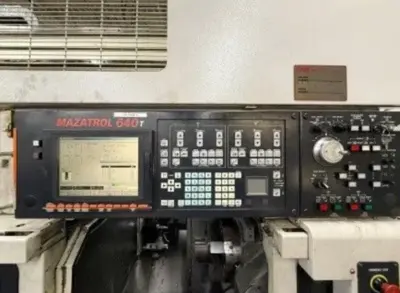

Mazatrol Fusion 640T
Auto Power Off
Automatic Workpiece Transfer
Big Bore Option (4" Bar Capacity)
C-Axis for Both Spindles (360,000 Positions)
Chip Conveyor
Chuck Open/ Close Confirmation

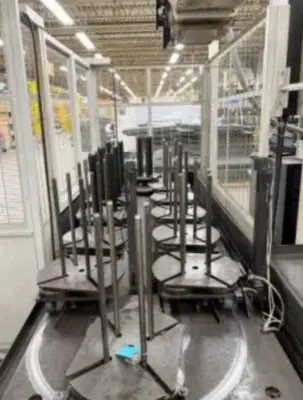

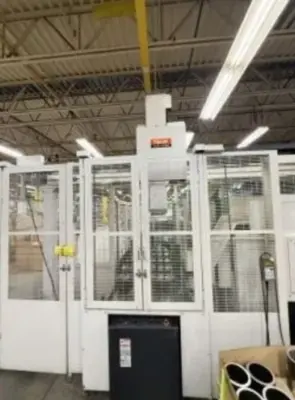

Flex GL300F Gantry Robot System
High Pressure Coolant Pump (213 PSI)
Mazak Tapping Tornado
Milling Spindle Synchronous Tapping
Y-Axis Control
