2014 MIGHTY VIPER VMC-116A
Have one to sell?
ConditionUsed
1 available

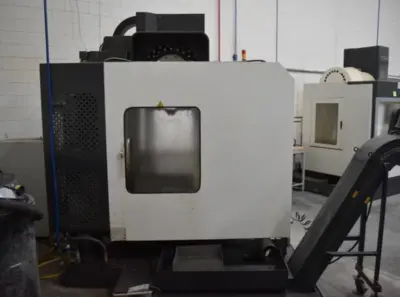

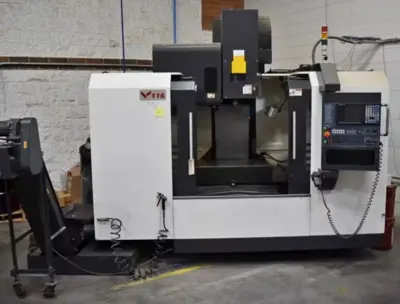

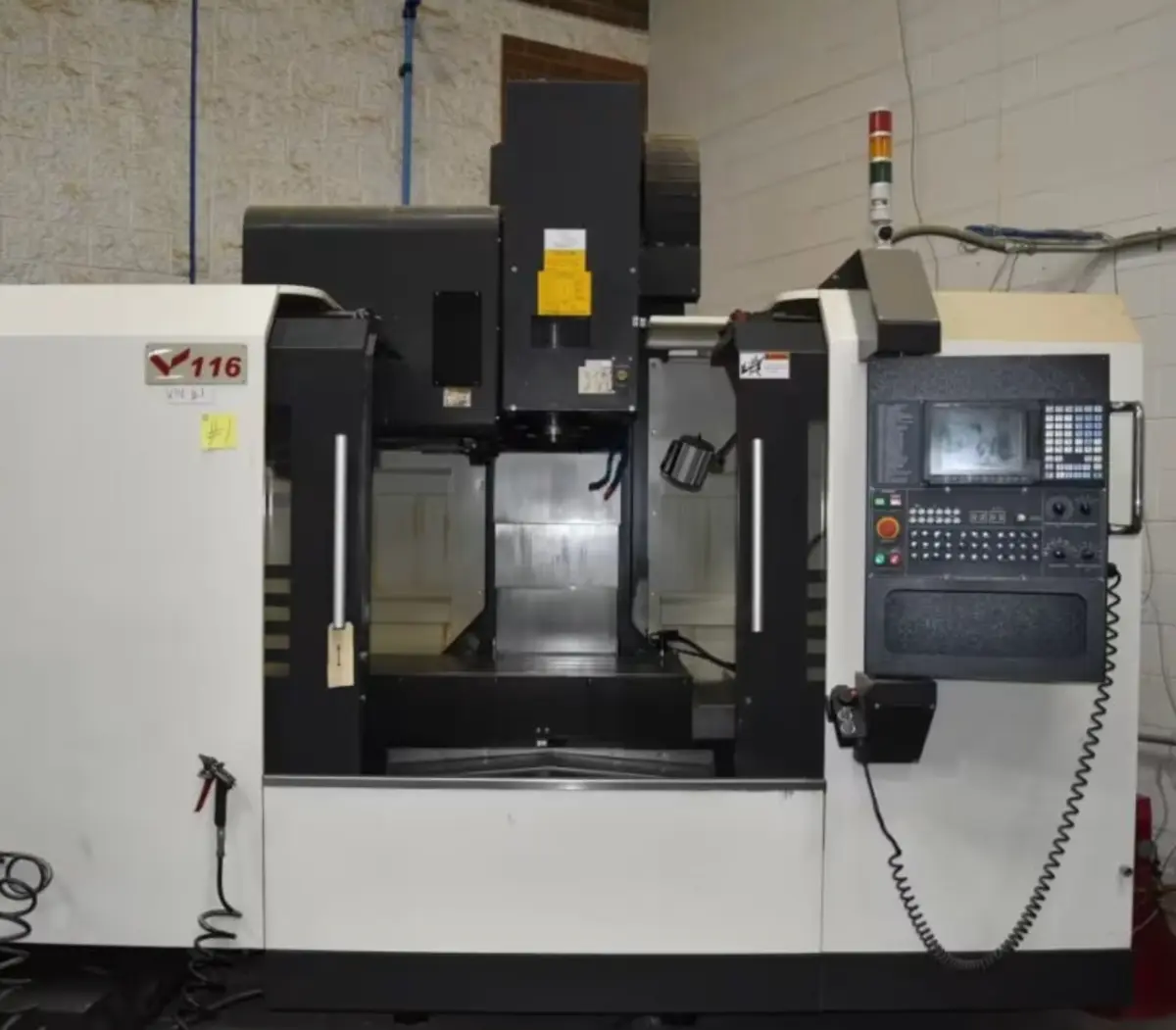

Used vertical machining center with Mitsubishi M70-VA, 43.31" X, 23.62" Y, 25" Z travel, 15 hp motor, 8,000 RPM, CAT-40 taper, and a 24-tool automatic changer. Includes cooling system, lubrication, and chip management accessories.

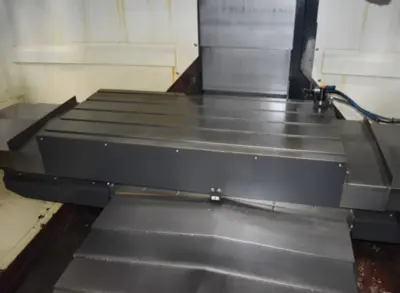

TABLE: TABLE SIZE:1250x600MM(49.21"x23.62")
T-SLOT:W18MMx5xP125MM(0.7"x5x4.9")
MAX TABLE LOAD:1200KG/2640LBS
TRAVEL: X=1100MM(43.31") Y=600MM(23.62") Z=635MM(25")
DISTANCE FROM SPINDLE END TO TABLE: 100MM-735MM(3.94"-28.94")

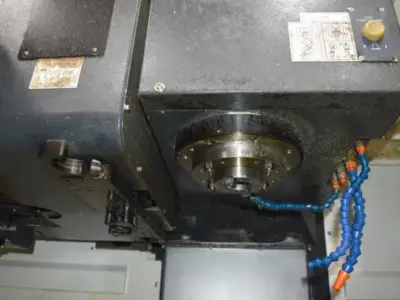

SPINDLE: SPINDLE TYPE: GEAR TYPE
SPINDLE SPEED: 8000RPM(OPT.)
SPINDLE NOSE TAPER: #40
FEED: CUTTING FEED RATE(XYZ):10 M/MIN
RAPID TRAVERSE: (X/Y/Z):24/24/20 M/MIN

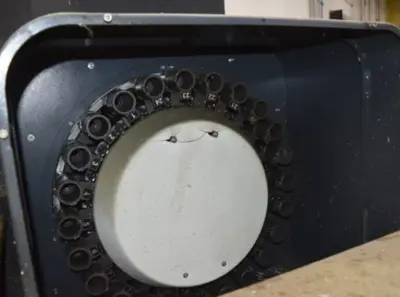

TOOL CHANGER: AUTOMATIC
TOOL CHANGER TYPE: ARM TYPE
TOOL STORAGE CAPACITY: 24PCS
MAX. TOOL WEIGHT: 7KG/16LBS
MAX. TOOL LENGTH: 300MM(11.81")
TOOL SHANK: CAT-40 PULL STUD: P40T-1
MOTOR: SPINDLE MOTOR: 15HP -X/Y/Z-AXIS DRIVE MOTORS: 3/3/3KW STANDARD

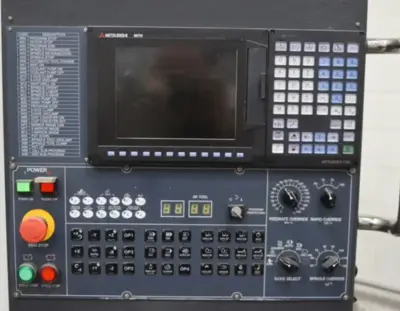

MITSUBISHI M70-VA
ACCESSORIES: COOLING SYSTEM -CENTRALIZED AUTOMATIC LUBRICATION SYSTEM
AIR BLAST THROUGH SPINDLE
SPINDLE OIL COOLER (HABOR BRAND)
SCREW TYPE CHIP AUGER

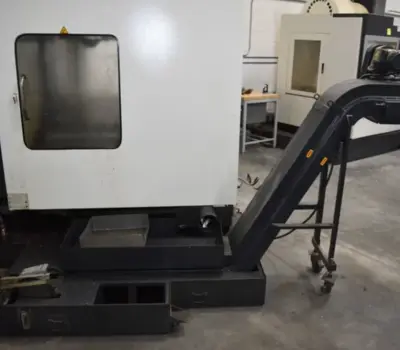

LINK TYPE LIFT-UP CHIP CONVEYOR
WORK LIGHT -SPLASH GUARD -AUTOMATIC POWER OFF(M30) -OPERATION FINISH LAMP (TRI-COLOR) -RS-232 INTERFACE -FOOT PEDAL SWITCH FOR SPINDLE CLAMP&UNCLAMP
REMOTE MANUAL PULSE GENERATOR
