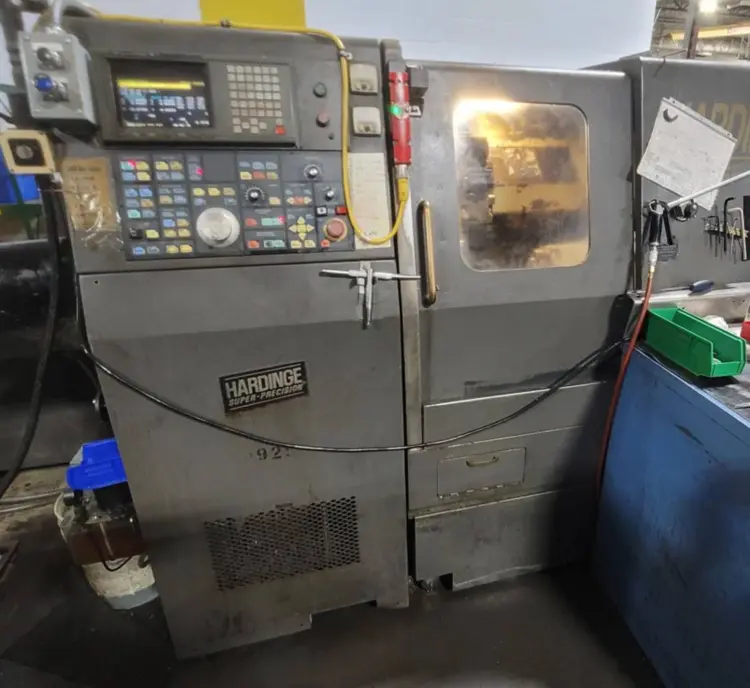

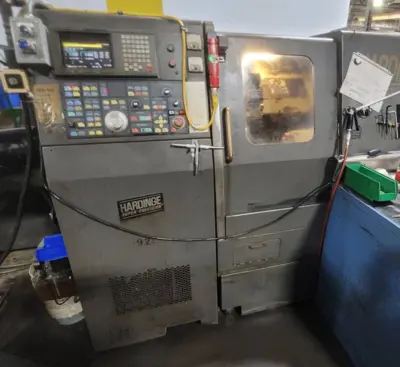

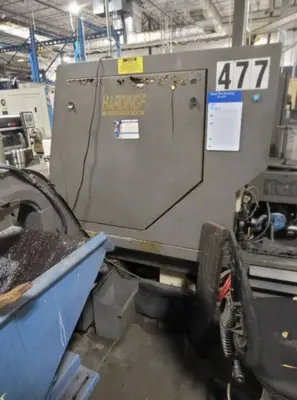

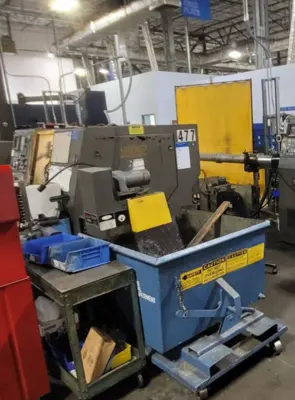

HARDINGE CONQUEST 42

Max Swing: 21.2″
Max Turning Diameter: 9″
Max Machining Length: 13.1″
X-Axis Travel: 5.31″
Z-Axis Travel with Collet: 13.9″

Chuck Size: Collet
Spindle: 5,000 RPM
Speed Range: 44 – 4400 RPM
Hole Through Spindle: 1.625″

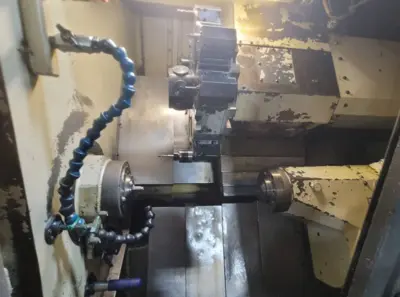

Turret Positions: 12

X-Axis Traverse Rate: 472 IPM
Z-Axis Traverse Rate: 630 IPM
Max Z-Axis (Drilling) Thrust: 1500 Lbs
Max Spindle Face Distance to Turret Face: 14″

CNC Control: Fanuc 18-T and 16-T
Electrical: 230V/3PH

Approx. Weight: 9,000 Lbs
Approx. Lathe Dimensions (l x w x h): 84” x 66″ x 68″

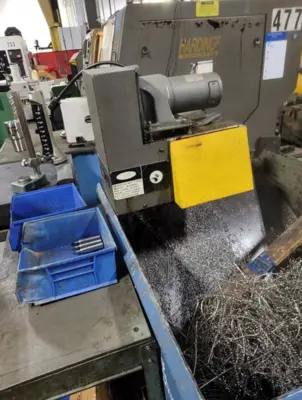

Conveyor Dimensions (l x w x h): 86” x 24″ x 55″
