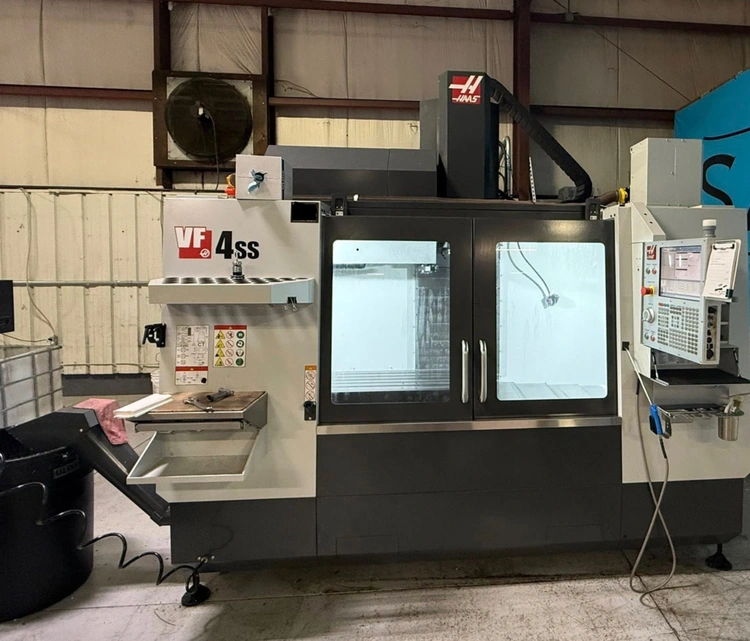

2024 HAAS VF-4SS

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-4SS
Year:
2024
Stock #:
X3X2290
Status:
For Sale

Description

Used vertical machining center offers power and precision with a 50"x20"x25" capacity, 30 hp, 12,000 RPM, 3-axis capability, and a high-speed 30+1 tool changer. Features include 4th axis drive and thru spindle coolant.

X50"1,270 mm
Y20"508 mm
Z25"635 mm
Power30 hp22.4 kW
RPM12,000 RPM12,000 RPM
# ATC3030
Taper4040
Table-W18"457.2 mm
Table-L52"1,320.8 mm
# Axis33
ControlCNC (HAAS)CNC (HAAS)

Spindle: 12,000-rpm inline direct-drive, with a 30.0 hp (22.4 kW) vector drive.
Tool taper: 40-taper for tools.
Tool changer: High-speed 30+1 side-mount tool changer.
Rapids: 1400 ipm (35.6 m/min) on all axes.
Table size: 52" x 18" (1320 x 457 mm).
Table load: 1,750 lbs (794 kg).

4th Axis Drive
High speed machining
Thru Spindle coolant

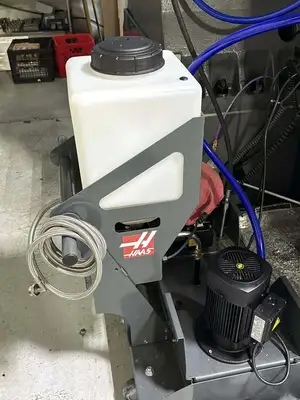

WIPS COOLANT RECOVERY SYSTEM
