X Axis Travel: 12"
Y Axis Travel: 12"
Z Axis Travel: 13"
B Axis Rotation: 0.001° (Full 4th)
Table Center to Spindle Nose
(Min - Max): 2.36" - 15.35"
Rapid Traverse Rate: 2362 Inch Per Minute
Cutting Feedrate: 2362 Inch Per Minute
Table Length: 10"
Table Width: 10"
Max Weight on Table: 220 lbs
Max Workpiece Height: 15.75"
Max Workpiece Diameter: 13.78"
Automatic Pallet Change Time: 7.9 Seconds
Spindle Taper: BT-30
Spindle Speed: 15,000 RPM
Spindle Motor: 15 HP

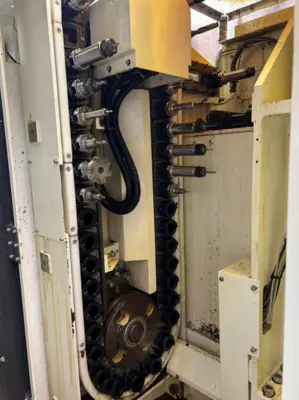

Tool Changer: 40 ATC
Machine Dimensions: 115" X 116"

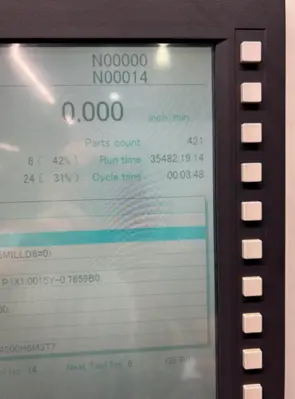

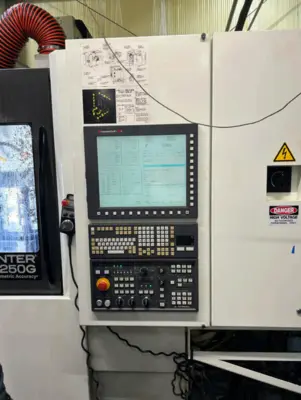

Arumatik-Mi CNC Control

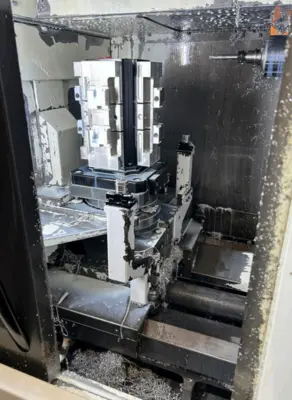

2-Station Automatic Pallet Changer
Coolant Thu Spindle
This equipment is currently unavailable. Similar equipment available now is shown below.
