2013 HAAS DS-30 W/ BAR FEEDER
Have one to sell?
ConditionUsed
1 available

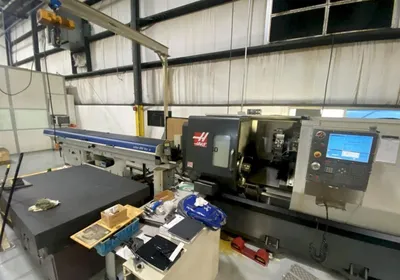

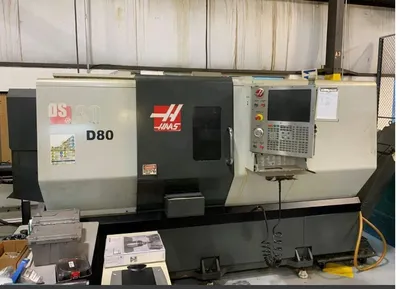

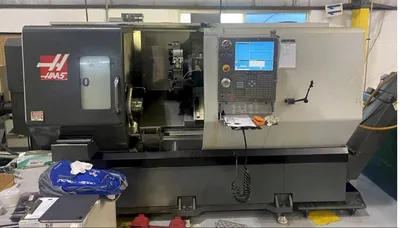

2013 HAAS DS-30 CNC Lathe with Bar Feeder offers 4-axis capability, 31.75" swing, and 18" turning diameter. Equipped with live tooling, sub spindle, parts catcher, chip conveyor, and more. Features 30 hp main motor, 8" chuck size, and 4,000 RPM max speed.
X Axis Travel: 12.52 in
Z Axis Travel: 25.98 in
B Axis Travel (Sub Spindle): 25.98 in
C Axis Index: 0.001°
Spindle Nose: A2-6
Spindle Speed: 4,000 rpm
Main Motor: 30 hp
Tailstock: no
Y Axis: no
Live Tooling: Yes
Live Tooling Speed: 6,000 rpm
Live Tooling Motor: 5 hp

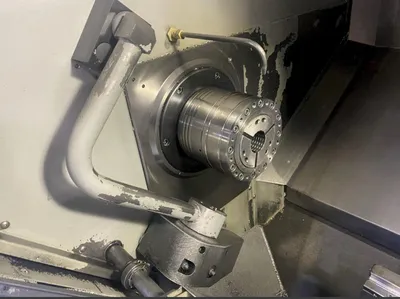

Sub Spindle: Yes
Sub Spindle Chuck: 8 in
Sub Spindle Nose: A2-5
Sub Spindle Speed: 4,000 rpm
Sub Spindle Motor (HP): 25 hp

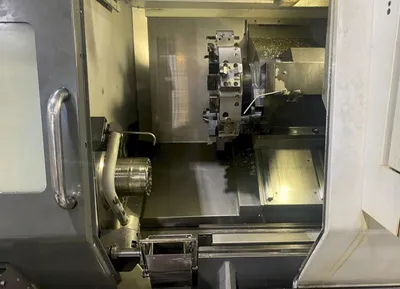

Turret Capacity: 12
Dimensions: 130" x 90" x 83"
Weight: 15000 lb

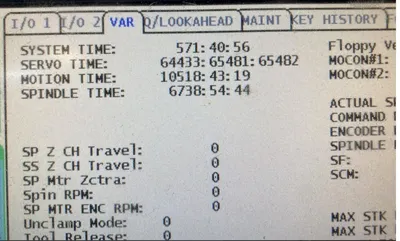

Haas CNC Control

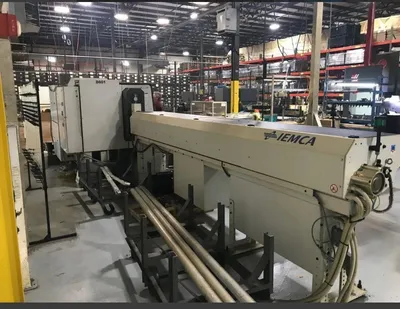

IEMCA Master 880 MP Bar Feeder
Parts Catcher

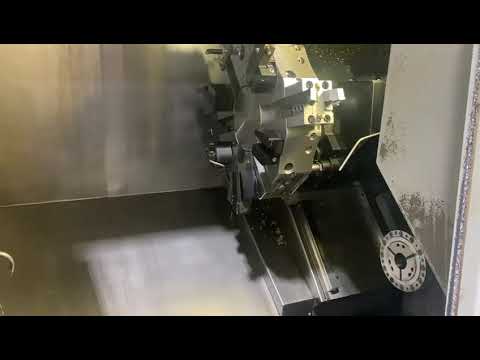

Live Tooling
Collet Chuck on Main Spindle
Chip Conveyor
Coolant Tank & Pump
Rigid Tapping
