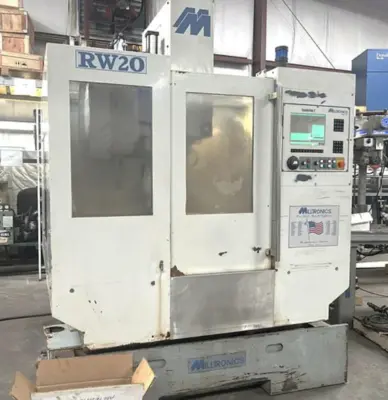

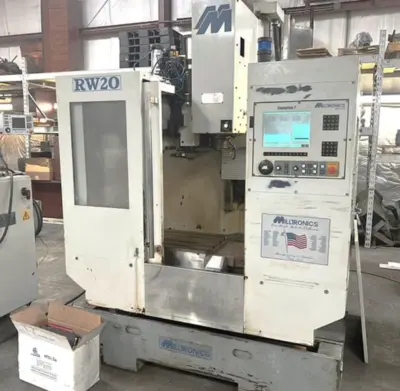

2005 MILLTRONICS RW20

Vertical Machining Centers
Manufacturer:
MILLTRONICS
Model:
RW20
Year:
2005
Stock #:
X4X2252

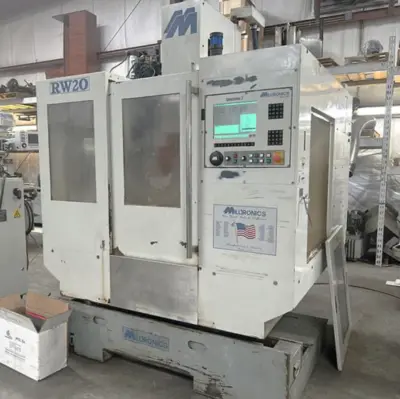

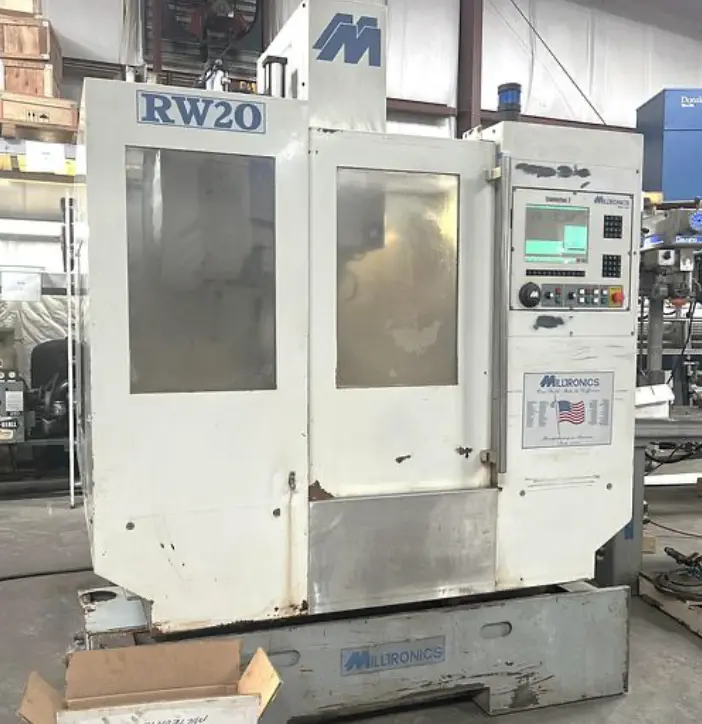

Used Vertical Machining Center, equipped with Centurion 7 control, boxed way design, and CAT 40 taper. Features include a 16-station tool changer, 25"x20"x20.5" travel, 18 HP motor, and 8,000 RPM spindle.
X25"635 mm
Y20"508 mm
Z20.5"520.7 mm
Power18 hp13.4 kW
RPM8,000 RPM8,000 RPM
TaperCAT 40CAT 40
# Axis33
ControlCNC (Milltronics Centurion 7)CNC (Milltronics Centurion 7)
Dimensions73"x78.5"x102"73"x78.5"x102"
Weight8,500 lbs8,500 lbs

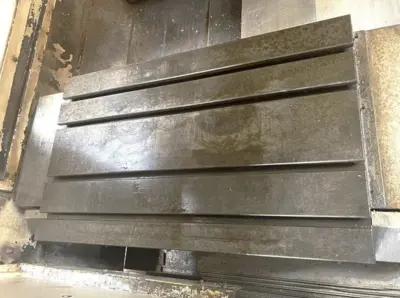

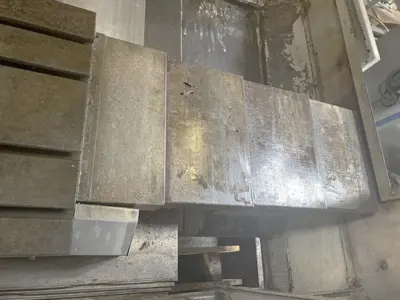

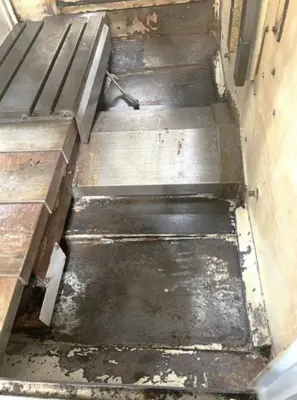

Table size 30"x18"
Maximum Table Load 1,000 lbs
X-Axis Travel 25"
Y-Axis Travel 20"
Z-Axis Travel 20.5"

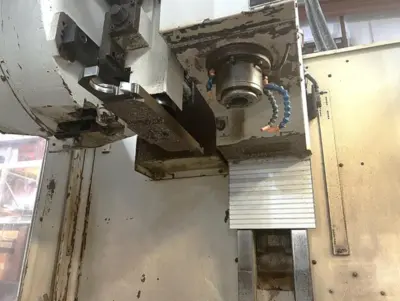

Spindle Taper CAT 40
Spindle Speed 8,000 RPM
Spindle Motor 18 HP / 12 HP
Distance Spindle Nose to Table Top 4.5" to 25"
Tool Magazine Capacity 16 Station Side Mounted Tool Changer
Column to Spindle Center 21"
Rapid Traverse Rates X, Y / Z 1,000 IPM / 800 IPM
Maximum Tool Diameter / Length / Weight 4" / 9" / 15 lbs
Machine Dimensions LxWxH 73"x78.5"x102"
Machine Weight 8,500 lbs

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

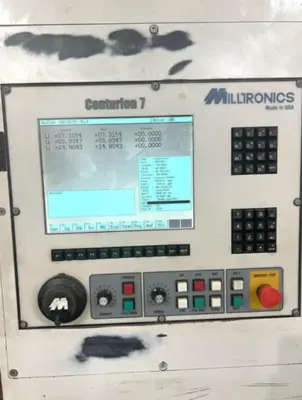

Control Milltronics Centurion 7

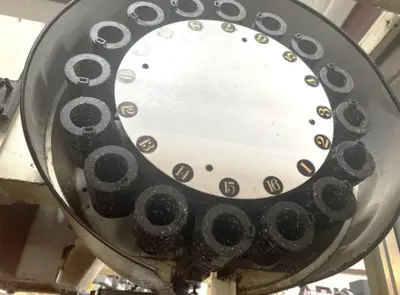

16 Station Side Mounted Tool Changer
Boxed Way Design
PC Based CPU w/ 6 MB Memory
Conversational or G & M Code Programming
Rigid Tapping
Flood Coolant

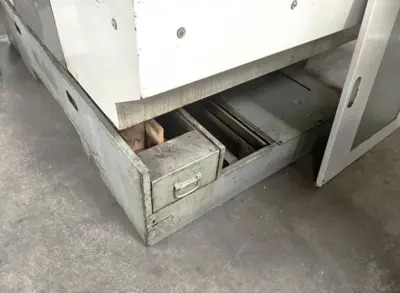

Coolant Tank with Pump
3.5" Floppy Disk Drive Interface
RS-232 Port with DNC Interface

This equipment is currently unavailable. Similar equipment available now is shown below.
