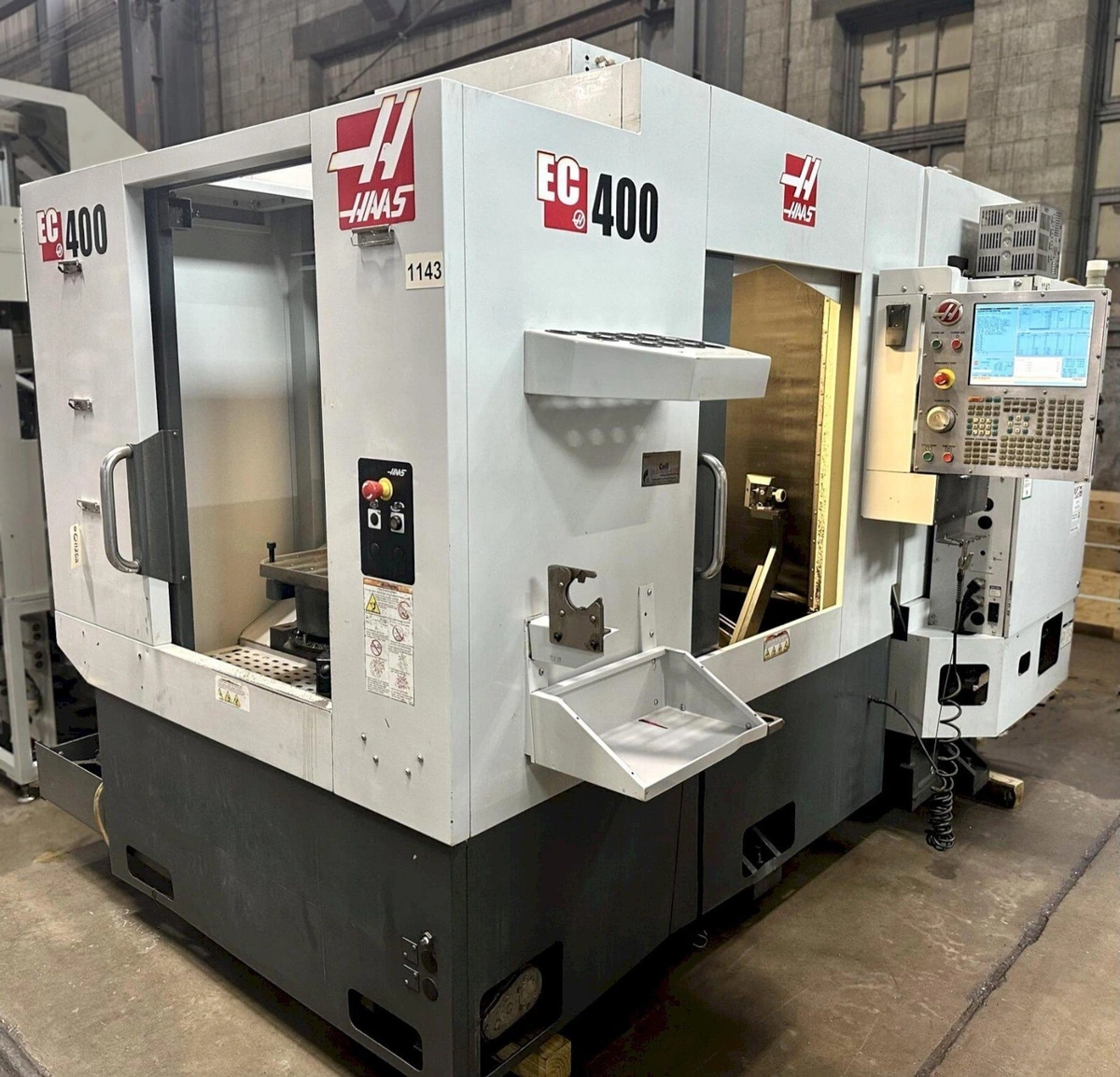

2011 HAAS EC-400

Horizontal Machining Centers
Manufacturer:
HAAS
Model:
EC-400
Year:
2011
Stock #:
X4X2248

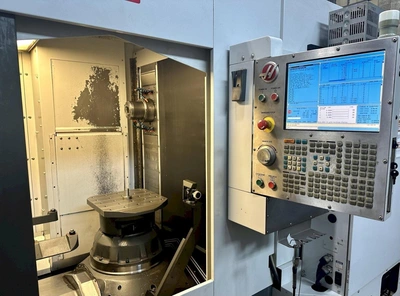

Used Horizontal Machining Center, featuring 4-axis capability, twin 15.75" pallets, 20" travel on all axes, 8100 RPM spindle, 24-tool ATC, and enhanced CNC controls with through-spindle coolant. Approx. 140"x97" footprint, 22,000 lbs.

# Axis 4
Number of Pallets 2
Pallet Dimensions 15.75" x 15.75"
Maximum Pallet Load 1,000 LBS
B-Axis (Pallet Indexing) 0.001°
X-Axis (Longitudinal Table Travel) 20"
Y-Axis (Vertical Travel) 20"
Z-Axis (Spindle Travel) 20"
Spindle Nose to Pallet Center Minimum 3.9"
Spindle Nose to Pallet Center Maximum 23.9"
Feed Rate, All Axes 500 IPM
Rapid Traverse Rate, All Axes 1,000 IPM
Spindle Horsepower 20 HP
Spindle Taper CAT 40
Spindle Speed Range 0 - 8,100 RPM
Coolant Through Spindle yes

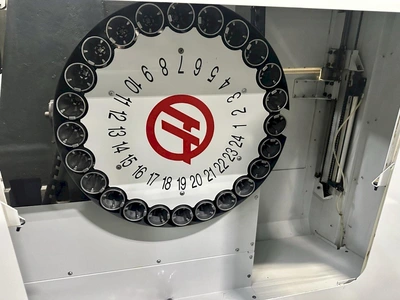

Automatic Tool Changer Capacity (ATC) 24
Automatic Tool Changer Style Side-Mount
Electrics 220/3/60
Approximate Machine Dimensions 140" x 97"
Approximate Machine Height 102"
Approximate Machine Weight 22,000 LBS

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

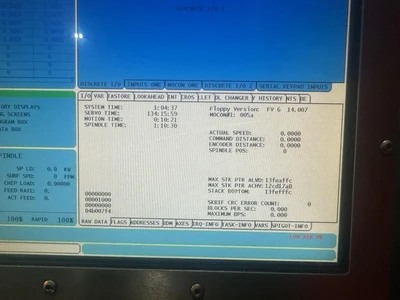

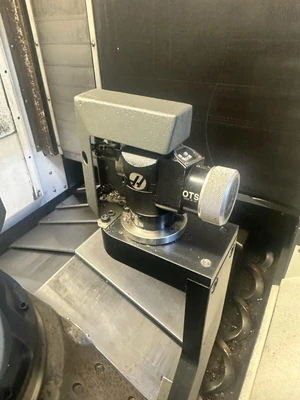

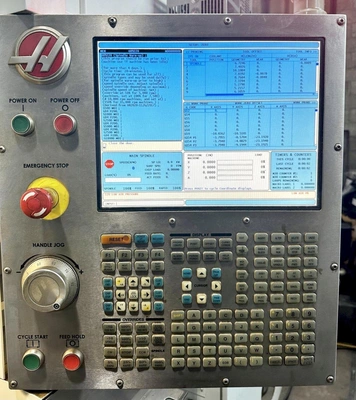

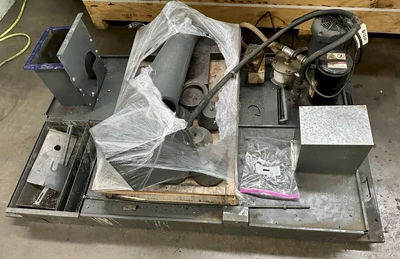

Haas CNC Control, (2) 15.75" x 15.75" 1-Degree Pallet w/Pallet-Shuttle, 8100 Max Spindle RPM, Thru the Spindle Coolant, 24 Position Automatic Tool Changer, WIPS-R, Control Options (EPFDM, Home, RJH-C, Rtap-3), 80 Gallon Coolant System.

This equipment is currently unavailable. Similar equipment available now is shown below.
